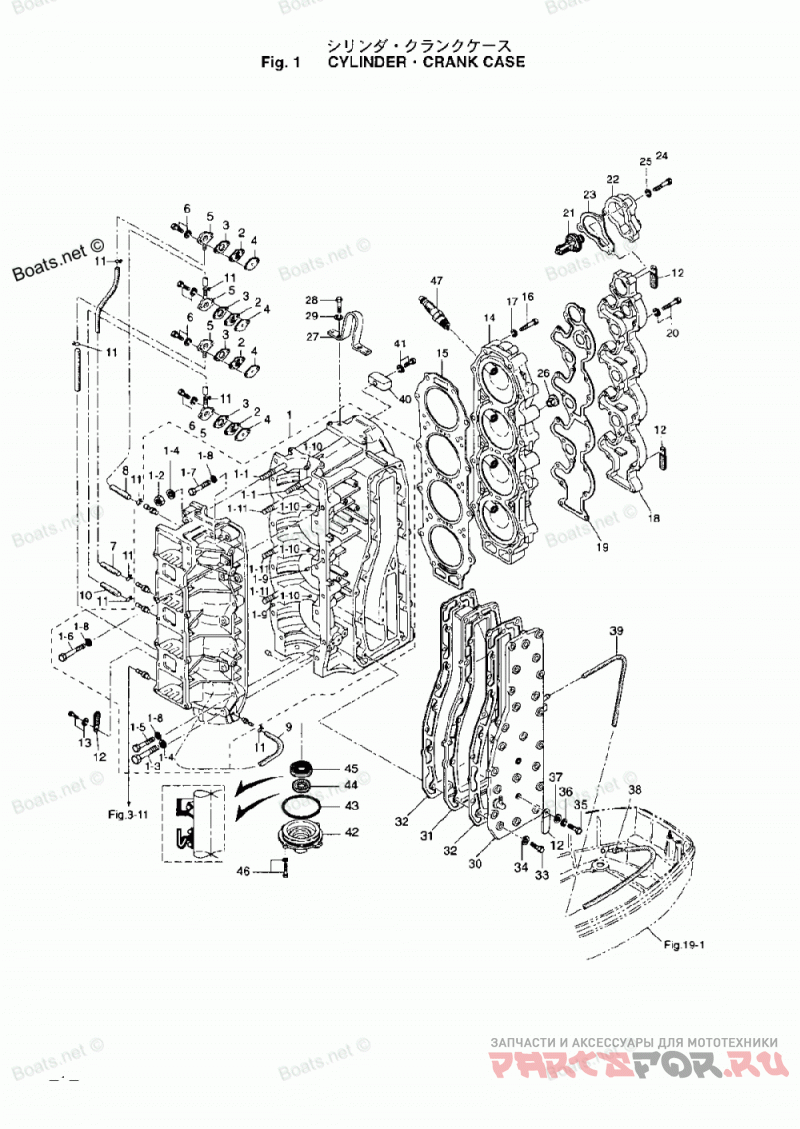

Cylinder Crank Case

Tohatsu M140A2

Tohatsu
#oem кодцена
1
3C7B011002
CYLINDER, CRANK CASE
1
9153241065
Шпилька
2
3C7011510M
CHECK VALVE "B"
2
9311211000
NUT, 10-P1.25
3
3C7011530M
GASKET "A", CHECK VALVE
3
9161291065
Болт
4
3C7011540M
GASKET "B", CHECK VALVE
4
3B7011160M
WASHER, 10.5-20-3.2
5
353011520M
CAP, CHECK VALVE
5
9162140850
Болт
6
9161240865
Болт
6
9101035525
Болт
7
980730220M
LUBRICATION PIPE
7
9161240840
Болт
8
980730320M
LUBRICATION PIPE
8
345010150M
WASHER, 8.5-19.5-3.2
9
980730410M
LUBRICATION PIPE
9
345011110M
KNOCK, 6-12
10
980730270M
LUBRICATION PIPE
10
345001170M
KNOCK, MAIN BEARING
11
9153241055
Шпилька
11
338011330M
CLIP, 7
12
309069720M
CLAMP, 6.5-47.5P
13
9101036612
Болт
14
3C7B010021
Головка цилиндра
15
3C7010050M
Прокладка
16
9161190860
Болт
18
3C7B010210
Крышка головки цилиндра
19
3C7010240M
GASKET, CYLINDER HEAD COVER
20
9101216635
Болт
21
3C7010300M
THERMOSTAT (PRV)
22
3B7B010310
CAP, THERMOSTAT
23
353010320M
GASKET, THERMOSTAT
24
9101130645
Болт
25
9413030600
Пружинная шайба
26
3B7010460M
Заглушка
27
3C7015132M
HANGER
28
9101140820
Болт
29
9413220800
Пружинная шайба
30
3C7B023000
EXHAUST COVER, OUTER
31
3C7B023020
EXHAUST COVER, INNER
32
3C7023050M
GASKET, EXHAUST COVER
33
9101140835
Болт
34
9401210800
Шайба
35
9101140630
Болт
36
9413220600
Пружинная шайба
37
9401210600
Шайба
38
353011380M
WATER NIPPLE
39
98AB50480M
PIPE, WATER NIPPLE
40
3B7602181M
Анод
41
9101135630
Болт
42
3B7012911M
LOWER HEAD, CRANK CASE
43
171000530M
O-RING, 2-74.5
44
3C7012150M
OIL SEAL, 19.6-35-10
45
3B7001210M
OIL SEAL, 35-58-9
46
9101135620
Болт
47
970111009M
SPARK PLUG
47
970111016M
SPARK PLUG (WITH RESISTANCE)
