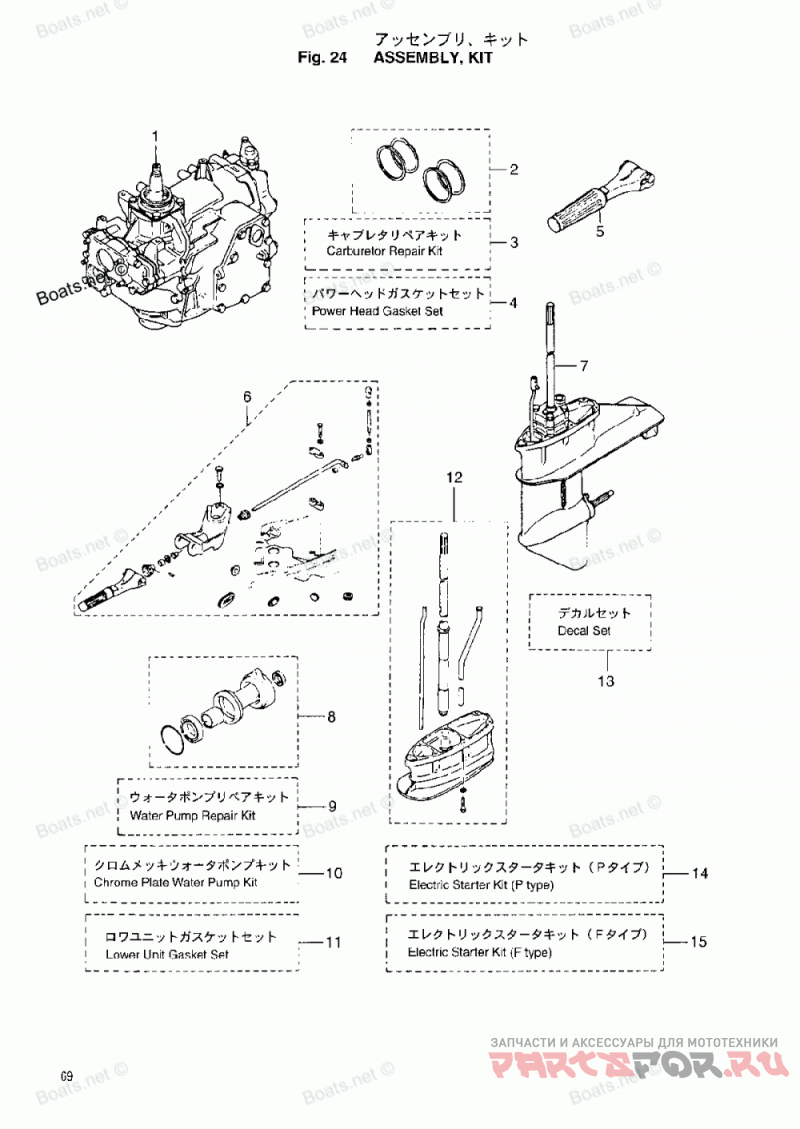

Assembly Kit

Tohatsu M40C

Tohatsu
#oem кодцена
1
3C1B871000
ENGINE SHORT BLOCK (NEW)
1
361B871000
ENGINE SHORT BLOCK (OLD)
2
361000140M
PISTON RING 1ST (0.5MM O/S)
2
345000140M
PISTON RING 2ND (0.5MM O/S)
2
361871230M
PISTON RING SET (STD)
2
361000110M
PISTON RING 1ST (STD)
2
345000110M
PISTON RING 2ND (STD)
2
361871240M
PISTON RING SET (0.5MM O/S)
3
344032440M
Зажим
3
9225036412
Винт
3
346032650M
STOP SCREW
3
334032311M
Поплавок
3
345032660M
ADJUST SCREW
3
334032320M
ARM PIN, FLOAT
3
345871220M
CARBURETOR REPAIR KIT
3
3B7032400M
FLOAT VALVE
3
345020110M
GASKET, CARBURETOR
3
345032430M
O-RING, 1.3-5.7
3
336032930M
Уплотнительное кольцо
3
334032420M
VALVE PIN
3
336032220M
O-RING, 1.9-64
4
346022350M
Прокладка
4
126001210M
OIL SEAL, 30-45-8
4
350051360M
O-RING. 2.5-4.5
4
345001220M
OIL SEAL, 25-55-10
4
345610120M
GASKET, DRIVE SHAFT HOUSING
4
338014030M
O-RING, 2-55.5
4
361871211M
POWER HEAD GASKET SET
4
345013030M
GASKET, ENGINE BASEMENT
4
345021040M
GASKET "A", INLET MANIFOLD
4
345010050M
GASKET. CYLINDER HEAD
4
345012150M
OIL SEAL, 17-30-8
4
345021050M
GASKET "B", INLET MANIFOLD
4
346010320M
GASKET. THERMOSTAT
4
346049010M
Прокладка
4
345023050M
GASKET, EXHAUST COVER
5
398S630030
HANDLE ASSEMBLY
6
9301060500
Гайка
6
9401030800
Шайба
6
346632011M
Болт
6
3B7637330M
ROD SNAP, 5-3
6
345630630M
SUPPORTER, THROTTLE SHAFT "B"
6
345632070M
COLLAR, 9.8-12-7.5
6
346052340M
5 ROD JOINT
6
9101140630
Болт
6
346630640M
UNIVERSAL PINION
6
361837280M
CABLE PIN
6
9401030600
Шайба
6
348630610M
THROTTLE SHAFT "B"
6
9301060600
Гайка
6
345662260M
GROMMET, THROTTLE SHAFT
6
9514030414
SPRING PIN, 4-14
6
353837190M
WASHER, 8.5-18-1.6
6
348637150M
LINK ROD, 5-75L
6
346630661M
COLLAR, 15.9-17.1-9
6
9516030800
R-PIN, D=8
6
361S630003
HANDLE KIT
7
361S873010
LOWER UNIT ASSEMBLY "S"
8
345S601000
PROPELLER SHAFT HOUSING ASSEMBLY
9
348650110M
LINER, PUMP CASE
9
348650250M
GUIDE PLATE, WATER PUM
9
348650291M
GASKET, PUMP GUIDE PLATE
9
348650180M
GASKET, PUMP CASE UPPER
9
361873220M
WATER PUMP REPAIR KIT
9
9101135652
Болт
9
345650210M
Импеллер
9
332650220M
KEY, WATER PUMP IMPELLER
10
361652390M
GUIDE PLATE, WATER PUMP
10
361652310M
CHROME PLATE WATER PUMP KIT
10
361652380M
LINER, PUMP CASE
11
345650150M
O-RING, 3.2-47
11
345660210M
O-RING. 1.9-6.8
11
361873210M
LOWER UNIT GASKET SET
11
332660320M
O-RING , 2.4-15.4
11
332600060M
GASKET, 8.2-14-1
11
301660250M
GASKET, 6.2-11-1
11
345601030M
O-RING 3.53-69.44
11
334602230M
OIL SEAL. 22-36-10
11
332601110M
OIL SEAL. 17-33-9.5
11
348650290M
GASKET, PUMP GUIDE PLATE
12
9101135840
Болт
12
345643030M
DRIVE SHAFT "UL"
12
345651201M
WATER PIPE "UL"
12
348660140M
CAM ROD "UL"
12
348S873140
EXTENSION HOUSING KIT "UL"
12
345S611100
EXTENSION HOUSING "UL"
13
361S878011
DECAL SET
14
334761410M
GROUND CABLE
14
345760810M
BRACKET, NEUTRAL SWITCH
14
9301030600
Гайка
14
9161030830
Болт
14
346760570M
HOOK, CHOKE SOLENOID
14
9304030400
NYLON NUT, 4P - 0.7
14
9301030500
Гайка
14
9101030612
Болт
14
9101030618
Болт
14
9101030645
Болт
14
345069710M
CLAMP, 9-12U
14
9514030312
SPRING PIN 3-12
14
9413030500
Пружинная шайба
14
3B2761471M
STARTER CORD
14
9301130600
Гайка
14
128026051M
SPACER, 6-8-28.5
14
9301030800
Гайка
14
346760721M
ROD, CHOCK SHAFT
14
353062810M
HOLDER, CABLE TERMINAL
14
3A3761450M
CAP, CORD
14
9413030600
Пружинная шайба
14
9109036616
Болт
14
9304060400
NYLON NUT, 4P-0.7
14
9413030800
Пружинная шайба
14
353062830M
COLLAR, 6.4-10-4.7
14
336760910M
BAND, LEAD WIRE
14
3G2760600M
Регулятор напряжения
14
3B2760620M
FUSE WIRE
14
9215036408
Винт
14
346760400M
STARTER SOLENOID
14
9101030620
Болт
14
361761001M
ELECTRIC STARTER KIT (P TYPE)
14
3B7761450M
CAP, CORD
14
3G2761420M
GROUND CABLE
14
3B2761200M
BATTERY CORD
14
361760550M
BRACKET, CHOKE SOLENOID
14
309069720M
CLAMP, 6.5-47.5P
14
346760100M
Стартер электрический
14
361760500M
CHOKE SOLENOID
14
9215030525
Винт
15
361760800M
NEUTRAL SWITCH
15
3M4760840M
SPACER, NEUTRAL SWITCH
15
3B7637310M
WASHER, 12.5-24-1
15
398760830M
ACTUATOR, NEUTRAL SWITCH
15
361760820M
PLATE, NEUTRAL SWITCH
15
361760260M
MAIN SWITCH
15
361763000M
ELECTRIC STARTER KIT (F TYPE)
