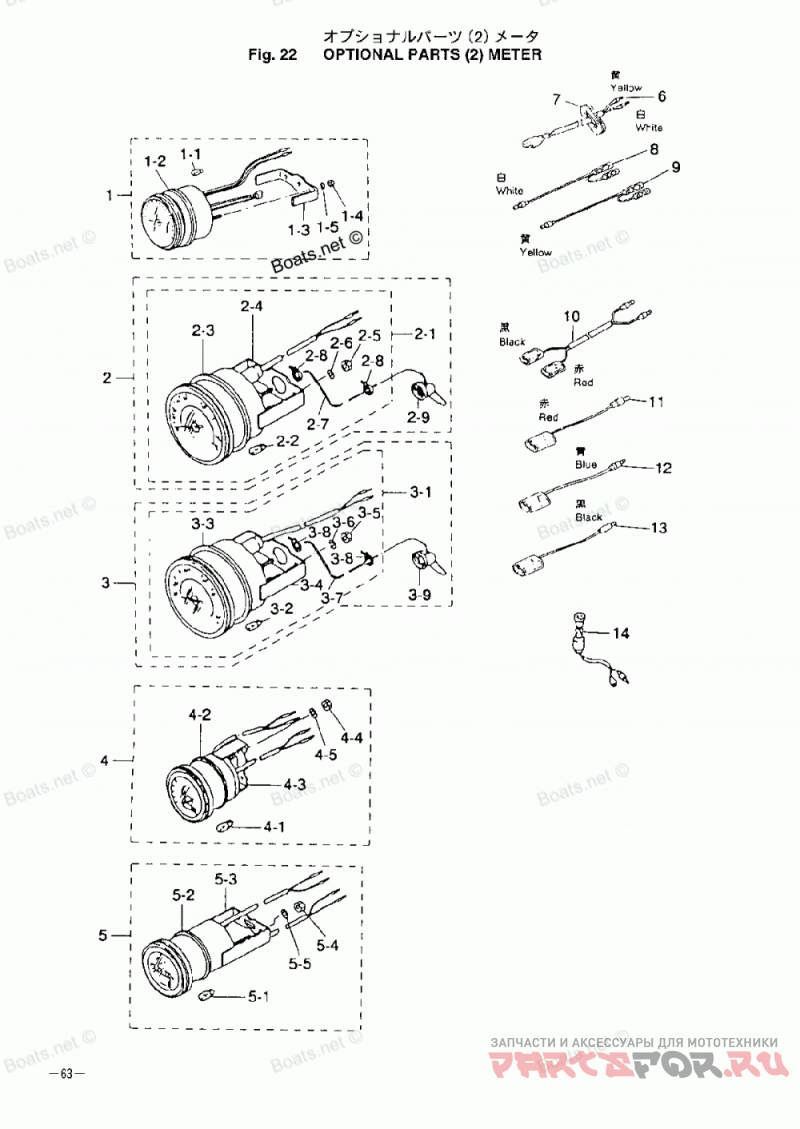

Спидометр

Tohatsu M40C

Tohatsu
#oem кодцена
1
3B7725301M
TACHOMETER (WITH OUT OIL LAMP)
1
3B7843502M
TACHOMETER (WITH OUT OIL LAMP)
1-1
3B7726590M
BULB, METER 12V-1.7W
1-2
3B7726560M
DAMPER, METER
1-3
3B7726610M
Плата
1-4
9215130612
Гайка
1-4
9302030500
Гайка
1-5
9413030500
Пружинная шайба
2
3E0726440M
SPEEDOMETER 75MPH KIT
2-1
3E0726490M
SPEEDOMETER 75MPH KIT
2-2
3B7726590M
BULB, METER 12V - 1.7W
2-3
3B7726560M
DAMPER, METER
2-4
3B7726610M
Плата
2-5
9302030500
Гайка
2-7
3B7726500M
TUBE, SPEEDOMTER
2-8
3B7726510M
BAND, SPEEDOMETER
2-9
3B7726430M
SPEEDOMETER SENDER
3
3E0725220M
SPEEDOMETER 50MPH
3-1
3E0726480M
SPEEDOMETER 50MPH KIT
4
3E0725290M
VOLTMETER
4-1
3B7726570M
BULB, METER 12V-1.7W
4-2
3B7726550M
DAMPER, METER
4-3
3B7726620M
Плата
4-4
9302030400
Гайка
4-5
9413030400
Пружинная шайба
5
3E0725240M
HOURMETER
5-1
3B7726570M
BULB, METER 12V-1.7W
5-2
3B7726550M
DAMPER, METER
5-3
3B7726640M
Плата
5-4
9302030400
Гайка
6
361725390M
LEAD CABLE, TACHOMETER
7
345671690M
GROMMET, CORD
8
361725420M
SEPARATE CORD, WHITE
9
361725430M
SEPARATE CORD, YELLOW
10
353725370M
LEAD CABLE, METER
11
353725460M
ASSIST CORD, RED
12
353725470M
ASSIST CORD, BLLUE
13
353725480M
ASSIST CORD, BLACK
14
353725211M
SWITCH, METER LAMP
