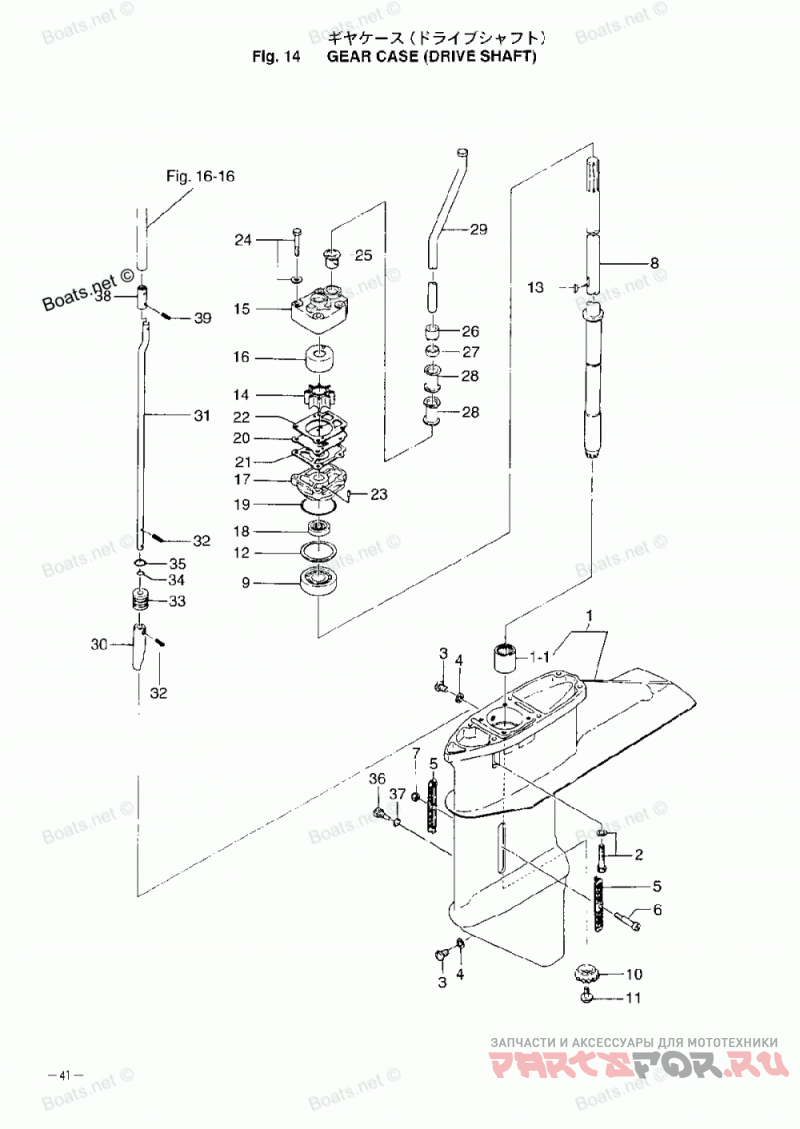

Корпус редуктора (вертикальный вал)

Tohatsu M40C

Tohatsu
#oem кодцена
1
361S600000
GEAR CASE
1
345602110M
NEEDLE BEARING, 22 - 30 - 30
2
9101135840
Болт
3
332600052M
OIL PLUG
4
332600060M
GASKET, 8.1 -15 - 1
5
345602060M
Водяная фильтрующая сетка
6
9215030440
Винт
7
9304060400
NYLON NUT, 4P - 0.7
8
345643010M
DRIVE SHAFT, "S"
8
345643020M
DRIVE SHAFT, "L"
8
345643030M
DRIVE SHAFT, "UL"
9
345602130M
BEARING, 32304
10
345640201M
BEVEL GEAR "B"
11
345640250M
BOLT, BEVEL GEAR "B"
12
345640810M
SHIM, 41 - 51.5 - 0.1
12
345640840M
SHIM, 41 - 51.5 - 0.5
13
332650220M
KEY, PUMP IMPELLER
14
345650210M
Импеллер
15
348650161M
PUMP CASE UPPER
16
348650110M
LINER, PUMP CASE
17
348650171M
PUMP CASE LOWER
18
332601110M
OIL SEAL, 17 - 33 - 9.5
19
345650150M
O-RING , 3.2 - 47
20
348650250M
GUIDE PLATE, WATTER PUMP
21
348650290M
GASKET, PUMP GUIDE PLATE
22
348650180M
GASKET, PUMP CASE UPPER
23
334650120M
KNOCK, 4 - 10
24
9101135652
Болт
25
3B7650140M
SEAL RUBBER LOWER, WATTER PIPE
27
345652050M
SET RING, SEAL RUBBER
28
346652040M
LOCK RUBBER, WATTER PIPE
28
345652040M
LOCK RUBBER, WATTER PIPE
29
345651001M
WATTER PIPE "S"
29
345651101M
WATTER PIPE "L"
29
345651201M
WATTER PIPE "UL"
30
348660110M
Кулачковый толкатель
31
348660140M
CAM ROD "UL"
31
348660120M
CAM ROD "S"
31
348660130M
CAM ROD "L"
32
9514030316
SPRING PIN, 3-16
33
345660311M
BUSHING, CAM ROD
34
345660210M
O-RING, 1.9 - 6.8
35
345660320M
O-RING, 2.4 - 15.4
36
301660241M
STOPPER, CAM ROD BUSHING
37
301660250M
GASKET, 6.2 - 11 - 1
38
345662410M
JOINT, SHIFT ROD
39
9514030312
SPRING PIN, 3 - 12
