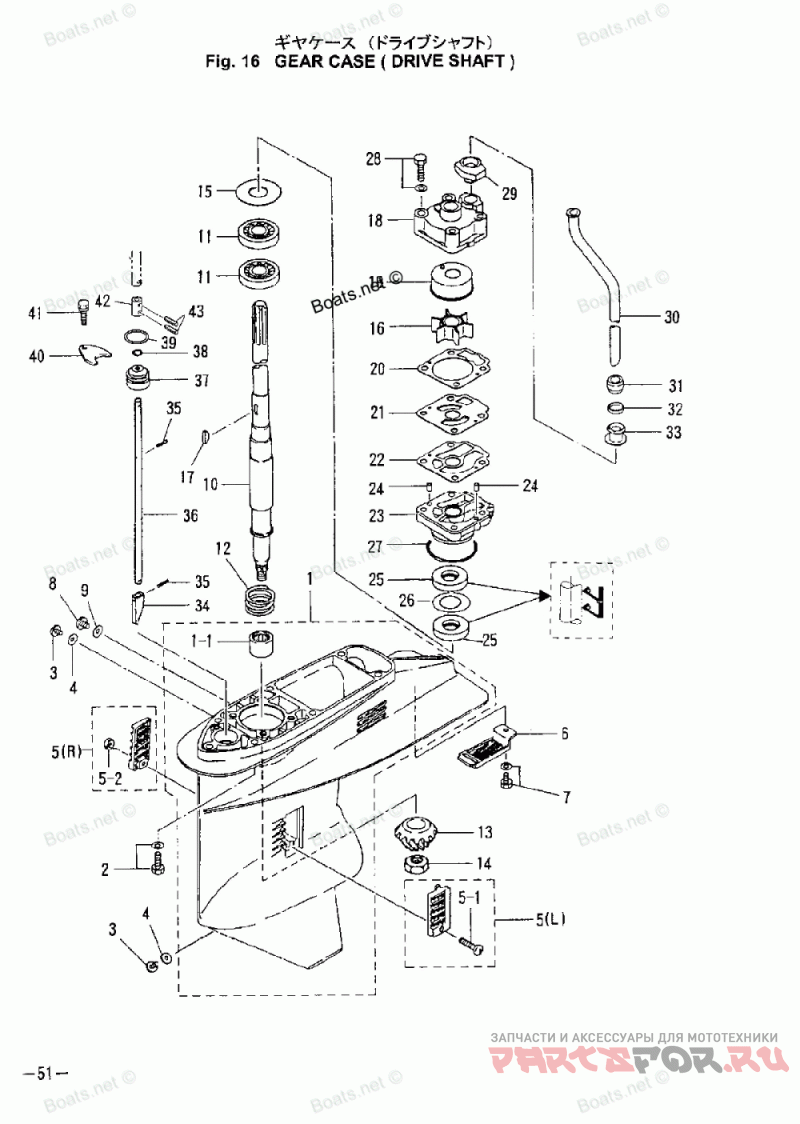

Корпус редуктора (вертикальный вал)

Tohatsu MD50B

Tohatsu
#oem кодцена
1
3C8S600000
GEAR CASE
1
3C8S600900
GEAR CASE (WITH SUB WATER PIPE)
1
353602110M
NEEDLE BEARING, 25-33-30
1-1
345602110M
NEEDLE BEARING, 22-30-30
2
9101135835
Болт
2
9161890835
BOLT, 8-35
3
332600052M
OIL PLUG
3
9402130800
Шайба
4
3B7600012M
BOLT, 10-40
4
332600060M
GASKET, 8.1-15-1
5
3C8602351M
WATER STRAINER SET
5
9402131000
Шайба
5-1
9215030438
Винт
5-2
9304060400
NYLON NUT, 4-P0.7
6
332600052M
OIL PLUG
6
3C8602040M
SUB WATER STRAINER
7
332600060M
GASKET, 8.1-15-1
7
9101135616
Болт
8
3B7602350M
WATER STRAINER SET
8
3B7600151M
WATER PLUG
8-1
9215030438
Винт
8-2
9304060400
NYLON NUT, 4P 0.7
9
3B7600160M
GASKET, 10.1-15-1
9
3F3602040M
SUB WATER STRAINER
10
3C8643010M
DRIVE SHAFT S
10
9215030608
Винт
10
3C8643020M
DRIVE SHAFT L
10
3C8643040M
DRIVE SHAFT LL
10
3C8643030M
DRIVE SHAFT UL
11
3B7600151M
WATER PLUG
11
3C8602130M
BEARING, 6304
12
3C8643270M
SPRING, DRIVE SHAFT
12
3B7600160M
GASKET, 10.1-15-1
13
3C8640202M
BEVEL GEAR B
13
3S7643020M
DRIVE SHAFT L
13
3S7643030M
DRIVE SHAFT UL
14
3C8602130M
BEARING, 6205R
14
3C8640270M
NUT, BEVEL GEAR B
15
3C8643270M
SPRING, DRIVE SHAFT
15
345640810M
SHIM, 41-51.5-0.1
15
345640820M
SHIM, 41-51.5-0.15
15
345640830M
SHIM, 41-51.5-0.3
15
345640840M
SHIM, 41-51.5-0.5
16
3C8650212M
Импеллер
16
3A3643280M
GUIDE, DRIVE SHAFT SPRING
17
332650220M
KEY, WATER PUMP IMPELLER
17
3F3640200M
BEVEL GEAR B
18
3T5650160M
UPPER, PUMP CASE
18
353640270M
NUT, BEVEL GEAR B
19
353640820M
SHIM, 44-50.5-0.15
19
353640830M
SHIM, 44-50.5-0.3
19
3T5650110M
LINER, PUMP CASE
19
353640810M
SHIM, 44-50.5-0.1
20
3B7650212M
Импеллер
20
3T5650180M
Прокладка
21
3B7650220M
KEY, PUMP IMPELLER
21
3C8650250M
GUIDE PLATE, WATER PUMP
22
3C8650290M
GASKET, GUIDE PLATE
22
3B7650160M
PUMP CASE UPPER
23
3C8650171M
LOWER, PUMP CASE
23
3B7652380M
LINER, PUMP CASE (CR)
24
334650120M
KNOCK, 4-10
24
3B7650180M
Прокладка
25
3F3652391M
GUIDE PLATE, WATER PUMP (CR)
25
3C8602230M
OIL SEAL, 17-33-6
26
3B7650290M
GASKET, GUIDE PLATE
26
3C8640840M
SHIM, 32.9-26-0.5
27
3F3650171M
PUMP CASE LOWER
27
345650150M
O-RING, 3.2-47
28
334650120M
KNOCK, 4-10
28
9101135855
Болт
29
3C8650140M
LOWER SEAL RUBBER, WATER PIPE
29
3F3602230M
OIL SEAL, 22-37-8
30
3C8651000M
WATER PIPE S
30
3C8651100M
WATER PIPE L
30
3C8651300M
WATER PIPE LL
30
3C8651200M
WATER PIPE UL
30
3F3640840M
SPACER, 36.9-30-0.5
31
345650150M
O-RING, 3.2-47
31
345652060M
UPPER, SEAL RUBBER, WATER PIPE
32
345652050M
COLLAR, 18-20-4.5
32
9161130880
BOLT, 8-80
33
346652040M
LOCKING RUBBER, WATER PIPE
33
9401130800
Шайба
34
3C8660110M
Кулачковый толкатель
35
3B7650140M
SEAL RUBBER LOWER, WATER PIPE
35
9514070312
SPRING PIN, 3-12
36
3C8660150M
CAM ROD LL
36
3C8660140M
CAM ROD UL
36
3C8651000M
WATER PIPE S
36
3C8660120M
CAM ROD S
36
3C8651100M
WATER PIPE L
36
3C8660130M
CAM ROD L
37
3C8660311M
BUSHING, CAM ROD
37
345652060M
SEAL RUBBER UPPER, WATER PIPE
38
345652050M
COLLAR, 18-20-4.5
38
332660210M
O-RING, 2.4-5.8
39
346652040M
LOCKING RUBBER, WATER PIPE
39
3C8660320M
O-RING, 3.5-21.7
40
3C8660110M
Кулачковый толкатель
40
353660240M
STOPPER, CAM ROD BUSHING
41
9514033514
SPRING PIN, 3.5-14
41
9101036612
Болт
42
3C8662410M
JOINT, SHIFT ROD
42
3S7660130M
CAM ROD L
42
3S7660140M
CAM ROD UL
43
9514033510
SPRING PIN, 3.5-10
43
9514030312
SPRING PIN, 3-12
44
3B7660311M
BUSHING, CAM ROD
45
345660210M
O-RING, 1.9-6.8
46
3B7660230M
O-RING, 3.5-27.7
47
353660240M
Стопор
48
9101036612
Болт
49
3S7662410M
JOINT, SHIFT ROD
50
9514030312
SPRING PIN, 3-12
