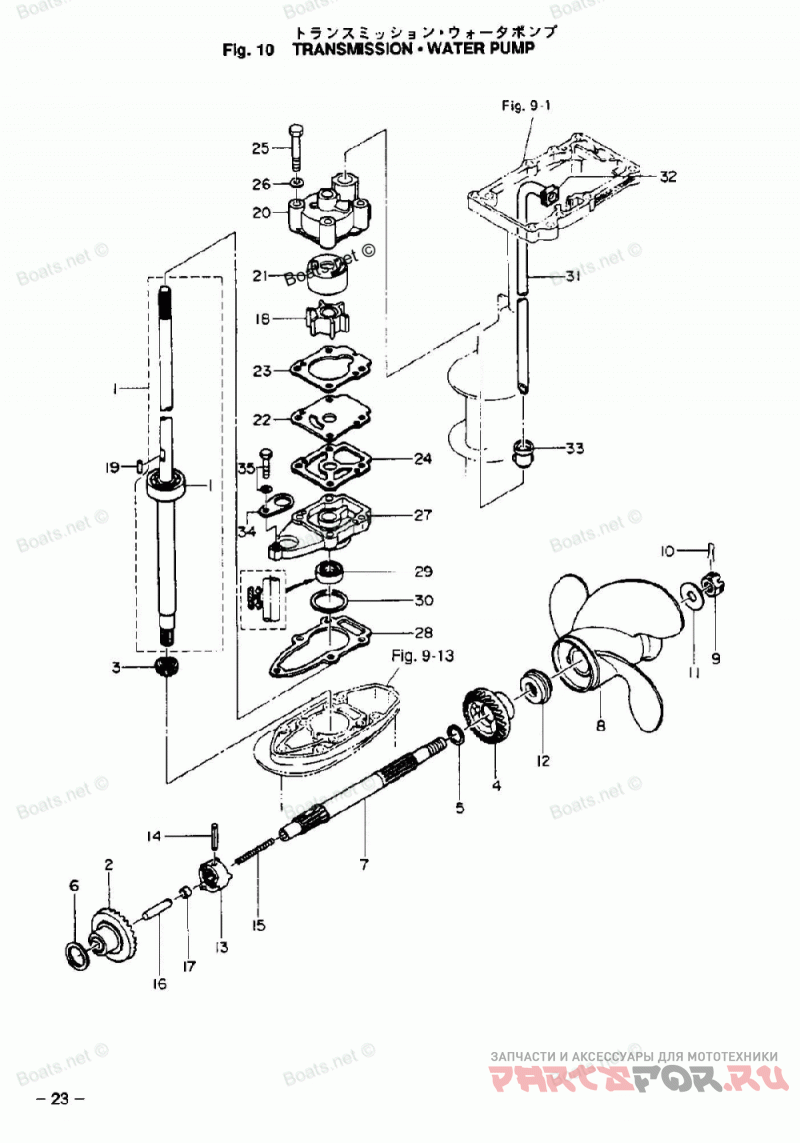

Коробка передач

Tohatsu M9.8B

Tohatsu
#oem кодцена
1
369S621123
STERN BRACKET R
1
369660110M
Кулачковый толкатель
1
3B2643020M
DRIVE SHAFT L
1
3B2643030M
DRIVE SHAFT UL
1-1
960106301M
BEARING, 6301
2
3B2640100M
BEVEL GEAR A ASSY
2
9514030310
SPRING PIN, 3 - 10
3
3B2640200M
BEVEL GEAR B
3
3B2660120M
CAM ROD S
3
3B2660130M
CAM ROD L
3
3B2660140M
CAM ROD UL
4
3B2640300M
BEVELGEARC
4
369660310M
BUSHING, CAM ROD
5
369660211M
O-RING, 2.5 - 4.9
5
369640320M
WASHER, BEVEL GEAR C
6
332660320M
O-RING, 2.4 - 15.4
6
369640140M
SHIM, 21 - 28 - 0.1
6
369640150M
SHIM, 21 - 28 - 0.15
7
3B2642110M
Вал гребного винта
7
3B2661100M
SHIFT LEVER
8
3B2645130M
PROPELLER (6.5)
8
3B2645150M
PROPELLER (7.5)
8
3K9661370M
OIL SEAL, 14 - 20 - 4.5
8
3B2645170M
PROPELLER (8.5)
9
3B2052111M
STARTER LOCK LEVER
9
369641210M
NUT, PROPELLER
10
350671010M
BUSHING, SHIFT LEVER SHAFT
10
9515030318
SPLIT PIN
11
3B2662250M
SHIFT ROD LEVER
11
369641240M
WASHER, 10.5 - 28 - 2
12
9517030800
SNAP RETAINER, D=8
12
3B2642310M
THRUST HOLDER, PROPELLER
13
3C8661120M
STOPPER, SHIFT LEVER
13
3B2642150M
Муфта сцепления
14
9101140610
Болт
14
301642170M
SPRING PIN, 3.5 - 28
15
3C8661160M
PLATE, SHIFT LEVER STOPPER
15
3B2642210M
COLL SPRING, CLUTCH
16
3B2650211M
Импеллер
16
3B2662110M
SHIFT ROD
16
369642230M
PUSH ROD, CLUTCH
17
3B2642220M
SPRING HOLDER, CLUTCH
17
3B2662410M
JOINT, SHIFT ROD
19
9453031000
E-RING D=10
19
3B2650220M
KEY, PUMP IMPELLER
20
3B2650160M
PUMP CASE UPPER
21
3B2650110M
LINER, PUMP CASE
22
3B2650250M
GUIDE PLATE, WATER PUMP
24
3B2650290M
GASKET, PUMP GUIDE PLATE
25
9161030650
Болт
26
9401030600
Шайба
27
3B2650170M
PUMP CASE LOWER
28
3B2650200M
GASKET, PUMP CASE LOWER
29
309601110M
OIL SEAL, 12 - 24 - 8
30
3B2640230M
GAP LINER, 28 - 36.8
31
3B2651000M
WATER PIPE S
31
3B2651100M
WATER PIPE L
31
3B2651200M
WATER PIPE UL
32
3B2651950M
GROMMET UPPER, WATER PIPE
33
331650140M
GROMMET LOWER, WATER PIPE
34
369660330M
STOPPER CAM ROD BUSHING
35
9101035625
Болт
