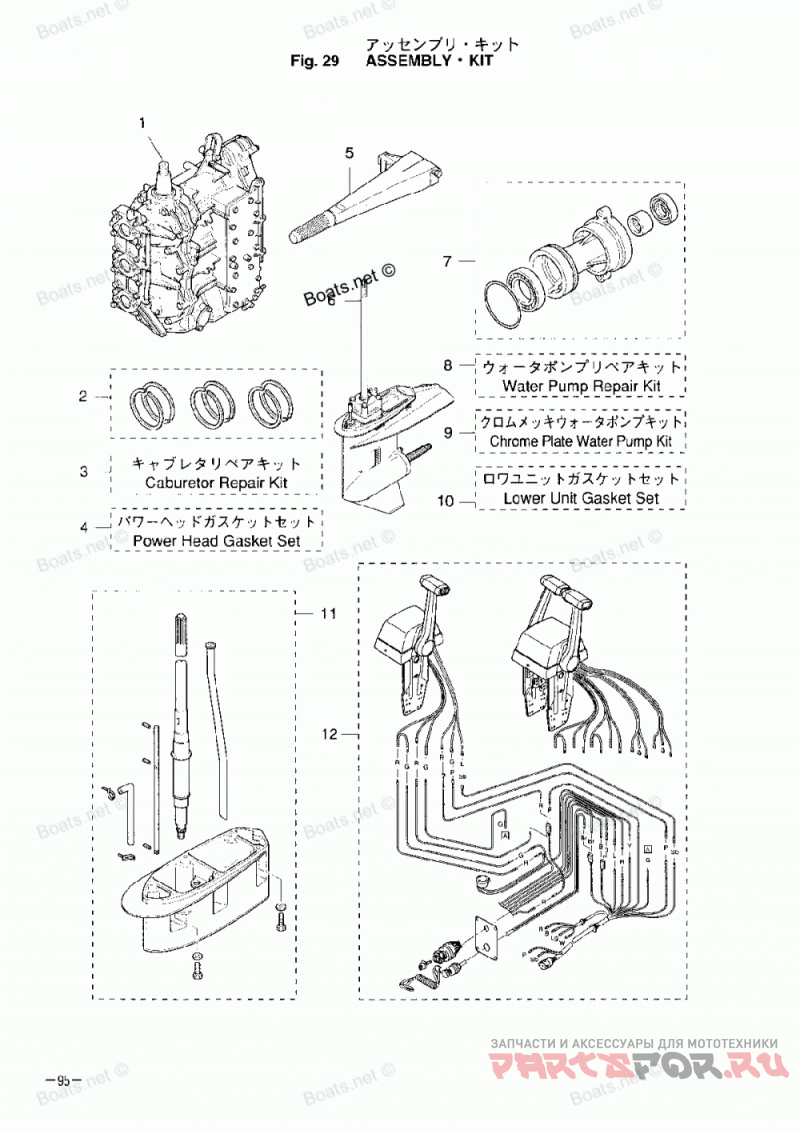

Assembly Kit

Tohatsu M60C

Tohatsu
#oem кодцена
1
3F3B871102
ENGINE BLOCK
2
3F3000151M
PISTON RING 2ND (0.5MM O/S)
2
3F3871232M
PISTON RING SET (STANDARD)
2
3F3000112M
PISTON RING 1ST (STANDARD)
2
3F3000121M
PISTON RING 2ND (STANDARD)
2
3F3871242M
PISTON RING SET (0.5MM O/S)
2
3F3000142M
PISTON RING 1ST (0.5MM O/S)
3
336032930M
Уплотнительное кольцо
3
3F3032320M
ARM PIN, FLOAT
3
334032420M
VALVE PIN
3
3B7032400M
FLOAT VALVE
3
3F3871221M
CARBURETOR REPAIR KIT
3
344032440M
Зажим
3
3F3020120M
O-RING, 1.9 - 38.8
3
3F3032340M
SCREW, ARM PIN
3
3F3032220M
O-RING, FLOAT CHAMBER
3
346032560M
RUBBER CAP
3
9225036414
Винт
3
3F3031820M
GASKET, CARBURETOR COVER
3
3F3032310M
Поплавок
4
3F3024180M
SEAL RUBBER, AIR SILENCER
4
126001210M
OIL SEAL, 30 - 45 - 8
4
3F3013031M
GASKET, ENGINE BASE
4
3B7090020M
O-RING, 1.6 - 19.2
4
3F3012150M
OIL SEAL, 16.8 - 28 - 8
4
3F3871211M
POWER HEAD GASKET SET
4
346049010M
Прокладка
4
3F3023051M
GASKET, EXHAUST COVER
4
3F3010050M
Прокладка
4
3B7022350M
O-RING, "A"
4
3C8090820M
GASKET, BLIND PLATE
4
3F3010240M
GASKET, CYLINDER HEAD COVER
4
3B7022360M
O-RING, "B"
4
353001080M
O-RING, 2 - 44.7
4
353010320M
GASKET, THERMOSTAT CAP
4
151331590M
GASKET, 6.2 - 11 - 1
4
3F3021040M
GASKET, INLET MANIFOLD
4
151000530M
O-RING, 2 - 66.5
4
3C8710160M
GASKET, 36-52-2
5
3B7S630101
HANDLE ASSEMBLY
6
3N4S873020
LOWER UNIT ASSEMBLY "L"
6
3N4S873040
LOWER UNIT ASSEMBLY "UL"
7
3B7S873231
PROPELLER SHAFT HOUSING ASSEMBLY
8
9161130880
Болт
8
3B7650212M
Импеллер
8
9401130800
Шайба
8
3B7650220M
KEY, WATER PUMP IMPELLER
8
3B7650110M
LINER, PUMP CASE
8
3F3650251M
GUIDE PLATE, WATER PUMP
8
3B7650290M
GASKET, PUMP GUIDE PLATE
8
3B7650180M
GASKET, PUMP CASE UPPER
8
3F3873220M
WATER PUMP REPAIR KIT
9
3F3652311M
CHROME PLATE WATER PUMP KIT
9
3B7652380M
LINER, PUMP CASE
9
3F3652391M
GUIDE PLATE, WATER PUMP
10
3C7602231M
OIL SEAL, 22 - 42 - 7
10
3F3023120M
Прокладка глушителя
10
3B7650150M
O-RING, 3.1 - 54.4
10
3F3611810M
GASKET, EXHAUST HOUSING
10
345660210M
O-RING, 1.9 - 6.8
10
332600060M
GASKET, 8.2 - 14 - 1
10
3B7660230M
O-RING, 3.5 - 27.7
10
3B7600160M
GASKET, 10.1 - 15 - 1
10
3B7602190M
PACKING, TRIM TAB
10
3B7601030M
O-RING, 3.1 - 94.4
10
3N4873210M
LOWER UNITI GASKET SET
10
3B7601110M
OIL SEAL, 30 - 50 - 12
10
3F3610120M
GASKET, DRIVE SHAFT HOUSING
11
3N4S873140
EXTENSION HOUSING KIT "UL"
12
3B7845401M
REMOTE CONTROL BOX KIT (RC6FT)
12
3B7844901M
REMOTE CONTROL BOX KIT (RC6F)
