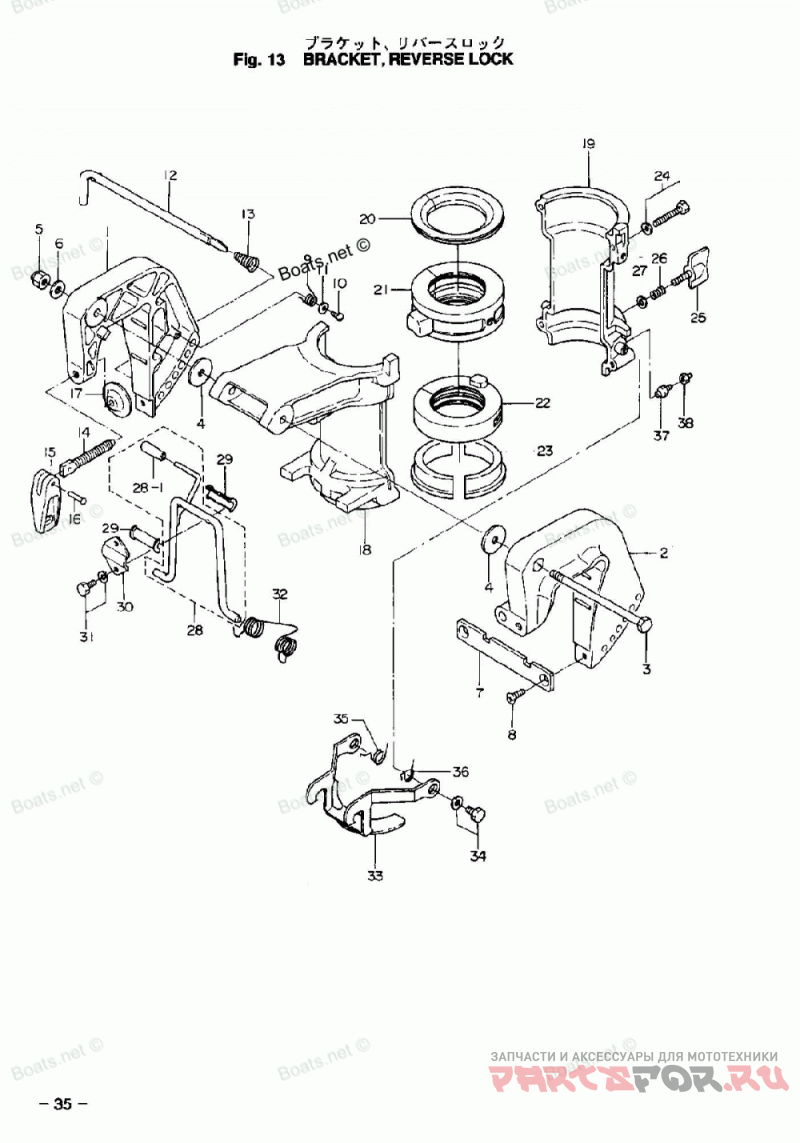

Bracket & Reverse Lock для лодочных моторов Tohatsu MFS6A (2002 и предыдущие)

Bracket & Reverse Lock

Tohatsu MFS6A

oem код

название

цена

STERN BACKET R

STERN BRACKET L

BOLT, 8 - 122

WASHER, 8.5 - 28 - 1.0

9304460800

NYLON NUT, 8P1.25

9401030800

Шайба

3B2621180M

DISTANCE PLATE, BRACKET

9216030612

Винт

369621461M

SPRING, STERM BRACKET

9207030406

Винт

369621470M

WASHER, 4.3 - 16 - 1.5

Штанга

SPRING, THRUST ROD

CLAMP SCREW

HANDLE, CLAMP SCREW

RIVET, 3 - 22

PAD, CLAMP SCREW

SWIVEL BRACKET A

SWIVEL BRACKET B

THRUST BUSHING

BUSHING UPPER, STEERING

3H6624170M

BUSHING LOWER, STEERING

THRUST PLATE B

Болт

Пружина

Пружина

Шайба

TILT STOPPER ASSY

28-1

393624330M

GRIP, TILT STOPPER

393624370M

BUSHING, TILT STOPPER

369624390M

SET PLATE, TILT STOPPER

Болт

SPRING, TILT STOPPER

REVERSE LOCK ARM

Болт

SPRING R, REVERSE LOCK ARM

369663390M

SPRING L, REVERSE LOCK ARM

344671770M

GREASE NIPPLE

344671780M

CAP, GREASE NIPPLE
