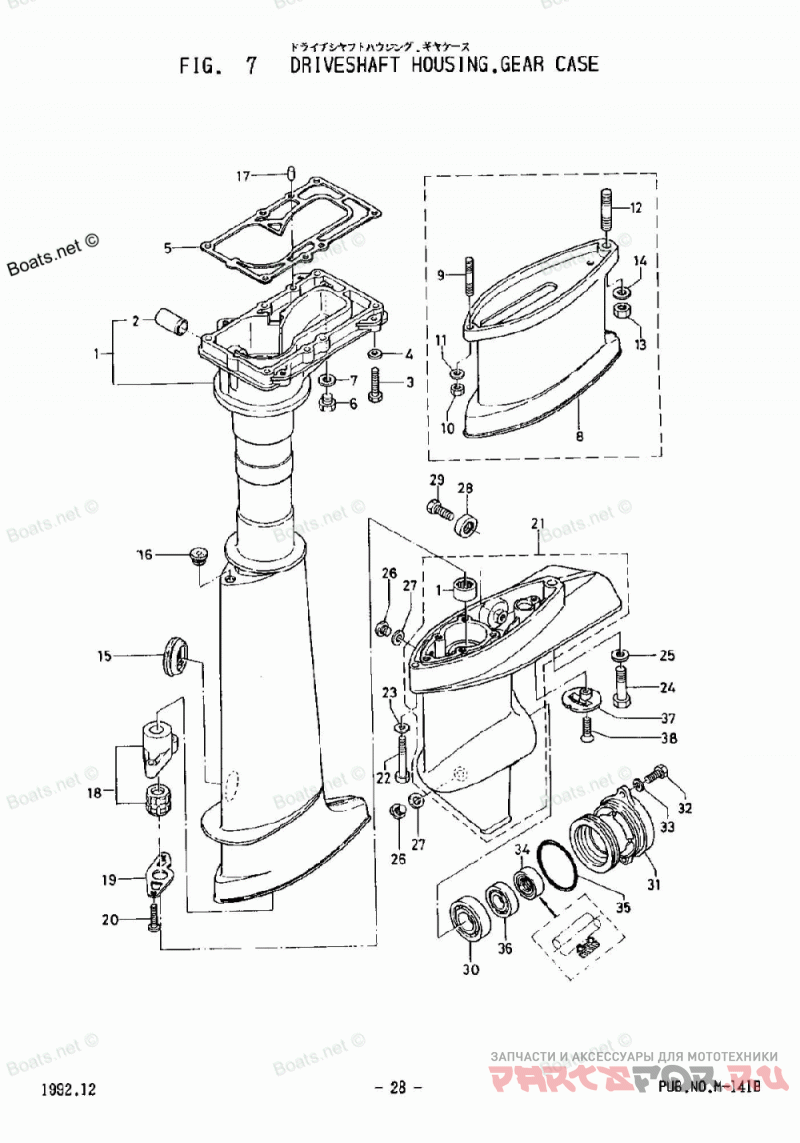

Drive Shaft Housing, Gear Case

Tohatsu M5B

Tohatsu
#oem кодцена
1
369610200M
DRIVE SHAFT HOUSING S
1
369610201M
DRIVE SHAFT HOUSING S
1
369S610202
DRIVE SHAFT HOUSING S
1
369602110M
BEARING, DRIVE SHAFT
1
369610300M
DRIVE SHAFT HOUSING L
1
369610301M
DRIVE SHAFT HOUSING L
1
369S610302
DRIVE SHAFT HOUSING L
2
301610210M
BUSHING, SHIFT LEVER
3
9101145630
Болт
4
940130600M
Шайба
5
369610120M
GASKET, DRIVE SHAFT HOUSING
6
910630808M
WATER PLUG
7
332600060M
GASKET, WATER PLUG
8
369611100M
EXTENSION HOUSING XL
8
369S611100
EXTENSION HOUSING XL
9
915330620M
STUD BOLT, FRONT
10
9301030600
Гайка
12
915230822M
STUD BOLT, REAR
13
9301030800
Гайка
14
940130800M
Шайба
15
369610160M
GROMMET, DRIVE SHAFT HOUSING
16
369660430M
GROMMET, CAM ROD
17
345011110M
KNOCK, DRIVE SHAFT HOUSING
18
369643310M
BUSHING, DRIVE SHAFT
19
369643320M
STOPPER, DRIVE SHAFT BUSHING
20
9215035510
Винт
20
9215030525
Винт
21
369600000M
GEAR CASE ASSY
21
369S600002
GEAR CASE ASSY
22
916130645M
BOLT, FRONT
24
916130835M
Болт
26
332600050M
OIL PLUG
27
332600060M
GASKET, OIL PLUG
28
369602180M
Анод
29
9101030616
Болт
30
960106004M
BEARING, BEVEL GEAR A
31
369601010M
HOUSING, PROPELLER SHAFT
31
369S601010
HOUSING, PROPELLER SHAFT
34
369601110M
OIL SEAL, PROPELLER SHAFT
35
345650150M
O-RING, PROPELLER SHAFT HOUSING
36
960106002M
BEARING, PROPELLER SHAFT
37
369602060M
Водяная фильтрующая сетка
38
921830620M
Винт
