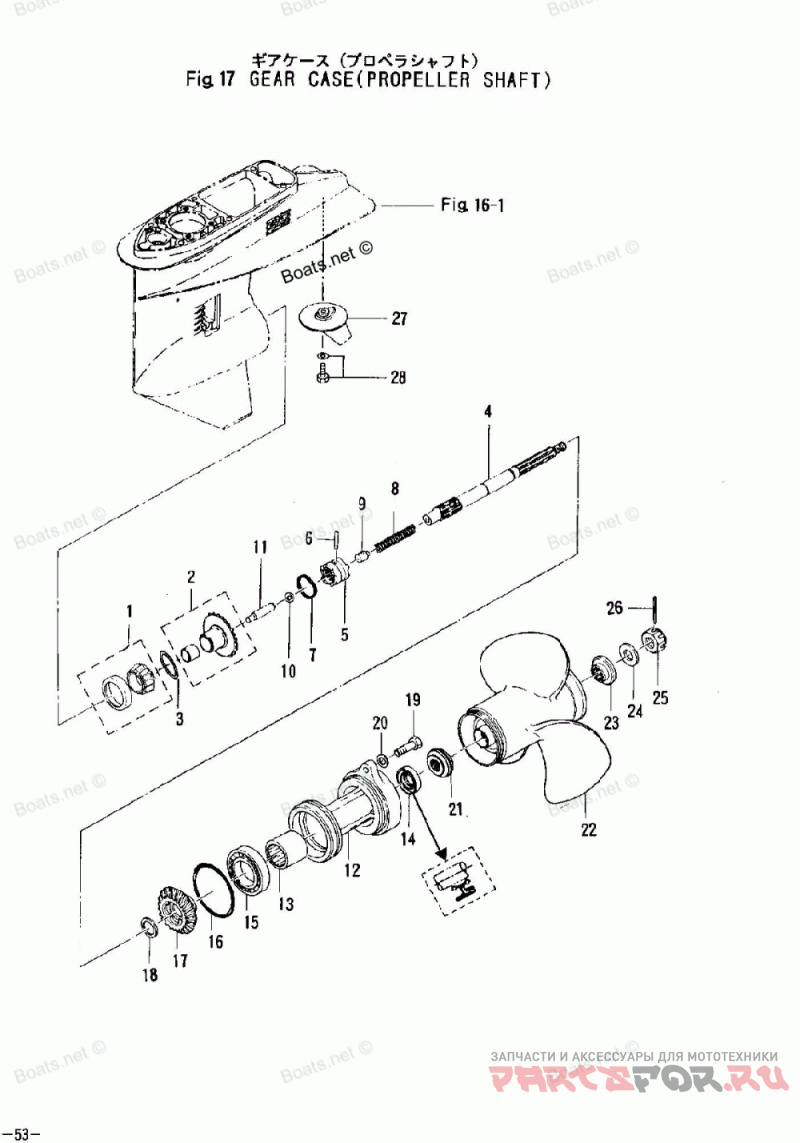

Корпус редуктора (гребной вал)

Tohatsu M40D2

Tohatsu
#oem кодцена
1
345602150M
BEARING, 32007
2
3C8640101M
BEVEL GEAR A (WITH BUSHING)
3
353640360M
SHIM, 36-44-0.3
3
353640370M
SHIM, 36-44-0.15
3
353640380M
SHIM, 36-44-0.1
4
3C8642110M
Вал гребного винта
5
3C8642151M
Муфта сцепления
6
3C8642170M
Палец
7
3C8642191M
SNAP, CLUTCH PIN
8
3C8642210M
Пружина
9
3C8642220M
SPRING HOLDER, CLUTCH
10
9650020803
STEEL BALL, 3/8
11
3C8642231M
PUSH ROD, CLUTCH
12
3C8S601010
HOUSING, PROPELLER SHAFT
13
345602110M
NEEDLE BEARING, 22-30-30
14
334602230M
OIL SEAL, 22-36-10
15
960106007M
BEARING, 6007
16
345601030M
O-RING, 3.53-69.44
17
3C8640300M
BEVEL GEAR C
18
345640320M
WASHER, 22.1-28-3
19
3C8601080M
BOLT, 6-25 PRECOATED
20
9401030600
Шайба
21
3C8642310M
THRUST HOLDER, PROPELLER
22
3E3645280M
PROPELLER C13.5
22
348641070M
PROPELLER 8.5
22
348641020M
PROPELLER 13
22
348641080M
PROPELLER 7
22
3E3645260M
PROPELLER C12.5
22
361641140M
PROPELLER 12
22
3E3645360M
PROPELLER C16
22
361641130M
PROPELLER 11
22
3E3645310M
PROPELLER C14.5
22
361641090M
PROPELLER 10
22
348641030M
PROPELLER 14
22
361641150M
PROPELLER 9
23
348642320M
PROPELLER STOPPER
24
345641240M
WASHER, 17-32-3
25
353641210M
NUT, PROPELLER
26
9515030325
SPLIT PIN, 3-25
27
3C8602170M
Триммер
28
9101035620
Болт
