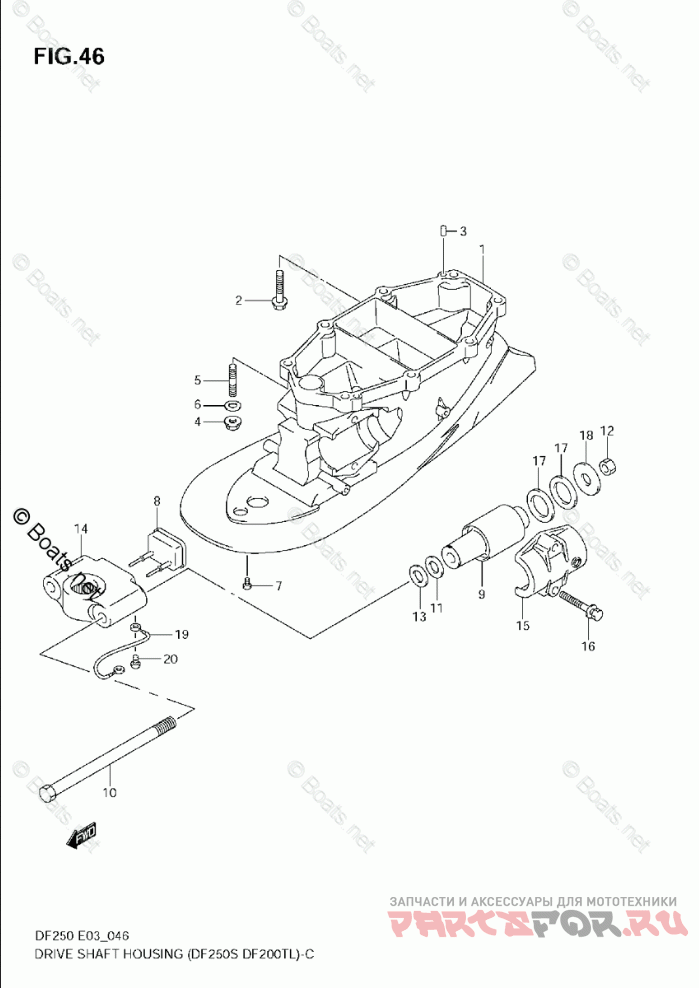

Drive Shaft Housing (DF250S,DF200TL)

Suzuki Marine DF 225TXXZK9

Suzuki Marine
#oem кодцена
1
52111-93J20-0EP
Деталь HOUSING, DRIVE SHAFT (BLACK)
2
09116-10139
Деталь BOLT, DRIVE SHAFT HSG (10X44)
3
09202-08006
Деталь PIN, DRIVE SHAFT HSG DOWEL
4
29141-93J20
Деталь NUT, DRIVE SHAFT HSG STUD
5
09108-10150
Деталь BOLT, DRIVE SHAFT HSG STUD
6
09160-10141
Деталь WASHER, DRIVE SHAFT HSG STUD
7
09125-06063
Деталь SCREW, MT BRKT TO HSG LEAD (6X10)
8-1
54151-93J00
Деталь MOUNT, LOWER THRUST *{DF200TL}*
8-2
54150-98J00
Деталь MOUNT, LOWER THRUST *{DF250S}*
9-2
54160-98J00
Деталь MOUNT, LOWER *{DF250S}*
9-1
54160-93J01
Деталь MOUNT, LOWER *{DF200TL}*
10
09100-14004
Деталь BOLT, LOWER MOUNT
11
09160-16050
Деталь WASHER, LOWER MOUNT
12
09159-14026
Деталь NUT, LOWER MOUNT BOLT
13
09160-16050
Деталь WASHER, LOWER MOUNT BOLT
14
54211-93J00
Деталь BRACKET, LOWER MOUNT
15
54221-93J00
Деталь COVER, LOWER MOUNT
16
09116-10136
Деталь BOLT, LOWER MOUNT COV
17
54165-98J00
Деталь DAMPER, REVERSE STOPPER LOWER
18
09160-14066
Деталь WASHER, REVERSE STOPPER LOWER
19
36894-87D00
Деталь LEAD (MOUNT BRKT TO HSG)
20
09125-06063
Деталь SCREW (MT BRKT TO HSG LEAD)
