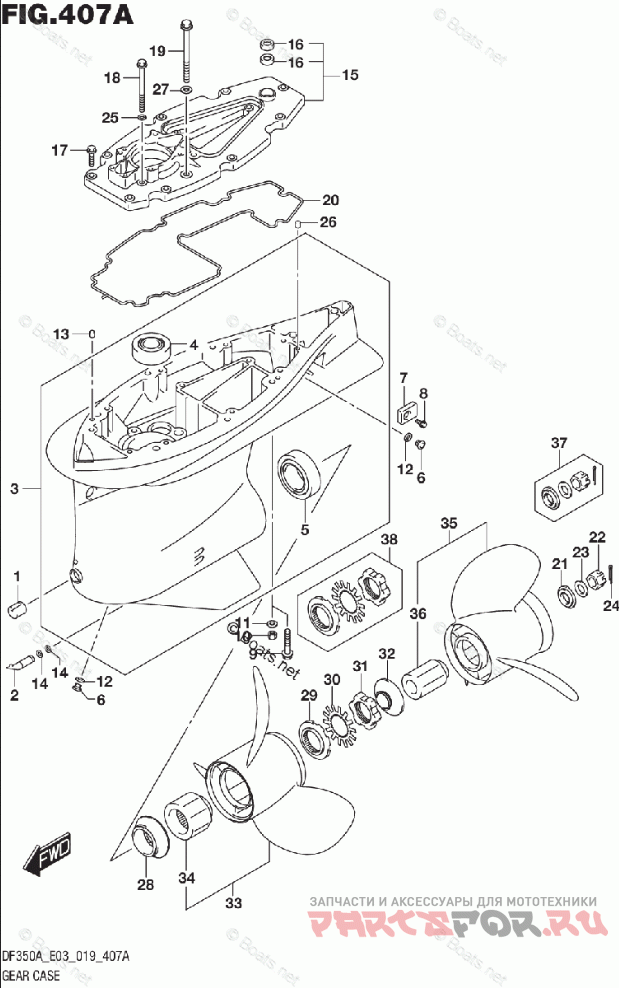

GEAR CASE

Suzuki Marine DF 350ATXX

Suzuki Marine
#oem кодцена
1
17631-98L02
FILTER, WATER
2
17635-98L00
FILTER, SUB WATER
3-2
55100-98850-Y5S
CASE SET, GEAR (WHITE) *{INCLUDE FIG.220A REF29}*
3-1
55100-98850-YAY
CASE SET, GEAR (BLACK) *{INCLUDE FIG.220A REF29}*
4
57710-98L00
BEARING ASSY, CONTRA PINION
5
09265-50001
BEARING (50X90X32)
6
55128-93L00
PLUG, DRAIN
7
55321-93J01
ANODE, PROTECTION
8
09116-06236
BOLT (6X16)
9
09116-10150
BOLT (10X55) *{W/TRANSOM(X)}*
10
09140-10031
NUT *{W/TRANSOM(XX)}*
11
09160-10141
WASHER (10.5X19X2) *{W/TRANSOM(XX)}*
12
09168-10034
GASKET (9.5X16.5X2)
13
09202-08006
PIN (8X12)
14
09280-10012
O RING (D:1.5,ID:10)
15
56130-98L12
HOUSING, DRIVE SFT BRG *{INCLUDE FIG.220A REF38}*
16
09282-15010
OIL SEAL (14.7X25X6.5)
17
29116-93J10
BOLT, DRIVE SHAFT BRG HOUSIN
18
09103-08552
BOLT (8X105)
19
09103-10461
BOLT (10X107)
20
55122-98L00
SEAL, DRIVE SHAFT BRG HSG
21
58641-98L00
SPACER, REAR PROPELLER NUT
22
09141-18005
NUT
23
09160-18019
WASHER (18.5X32X2.5)
24
09204-03003
PIN
25
09169-08038
WASHER
26
09202-06031
PIN (6X12)
27
09169-10023
WASHER
28
58531-98L00
STOPPER, FRONT PROPELLER BUSH
29
58541-98L00
SPACER, FRONT PROPELLER NUT
30
58551-98L00
STOPPER, FRONT PROPELLER NUT
31
58561-98L00
NUT, FRONT PROPELLER
32
58631-98L00
STOPPER, REAR PROPELLER BUSH
33-6
58500-98L50
PROPELLER, FR (3X15-1/2X28.5) *{OPT}*
33-9
58500-98L80
PROPELLER, FR (3X15-1/2X31.5) *{OPT}*
33-2
58500-98L10
PROPELLER, FR (3X15-1/2X22.5) *{OPT}*
33-3
58500-98L20
PROPELLER, FR (3X15-1/2X24) *{OPT}*
33-4
58500-98L30
PROPELLER, FR (3X15-1/2X25.5) *{OPT}*
33-7
58500-98L60
PROPELLER, FR (3X15-1/2X19.5) *{OPT}*
33-1
58500-98L00
PROPELLER, FR (3X15-1/2X21) *{OPT}*
33-8
58500-98L70
PROPELLER, FR (3X15-1/2X30) *{OPT}*
33-11
58500-98LA0
PROPELLER, FR (3X15-1/2X12) *{OPT}*
33-10
58500-98L90
PROPELLER, FR (3X15-1/2X18) *{OPT}*
33-12
58500-98LB0
PROPELLER, FR (3X15-1/2X15) *{OPT}*
33-5
58500-98L40
PROPELLER, FR (3X15-1/2X27) *{OPT}*
33-13
58500-98LC0
PROPELLER, FR (3X15-1/2X16.5) *{OPT}*
34
58520-98L00
BUSH, FRONT PROPELLER *{OPT}*
35-12
58600-98LB0
PROPELLER, RR (3X15-1/2X15) *{OPT}*
35-8
58600-98L70
PROPELLER, RR (3X15-1/2X30) *{OPT}*
35-10
58600-98L90
PROPELLER, RR (3X15-1/2X18) *{OPT}*
35-11
58600-98LA0
PROPELLER, RR (3X15-1/2X12) *{OPT}*
35-13
58600-98LC0
PROPELLER, RR (3X15-1/2X16.5) *{OPT}*
35-9
58600-98L80
PROPELLER, RR (3X15-1/2X31.5) *{OPT}*
35-7
58600-98L60
PROPELLER, RR (3X15-1/2X19.5) *{OPT}*
35-6
58600-98L50
PROPELLER, RR (3X15-1/2X28.5) *{OPT}*
35-5
58600-98L40
PROPELLER, RR (3X15-1/2X27) *{OPT}*
35-4
58600-98L30
PROPELLER, RR (3X15-1/2X25.5) *{OPT}*
35-3
58600-98L20
PROPELLER, RR (3X15-1/2X24) *{OPT}*
35-2
58600-98L10
PROPELLER, RR (3X15-1/2X22.5) *{OPT}*
35-1
58600-98L00
PROPELLER, RR (3X15-1/2X21) *{OPT}*
36
58620-98L00
BUSH, REAR PROPELLER *{OPT}*
37
58640-98L00
KIT, REAR PROPELLER NUT *{OPT}*
38
58540-98L00
KIT, FRONT PROPELLER NUT *{OPT}*
39
25700-98L01
KIT, GEAR CASE SEALING *{OPT NOT ILLUSTRATED}*
