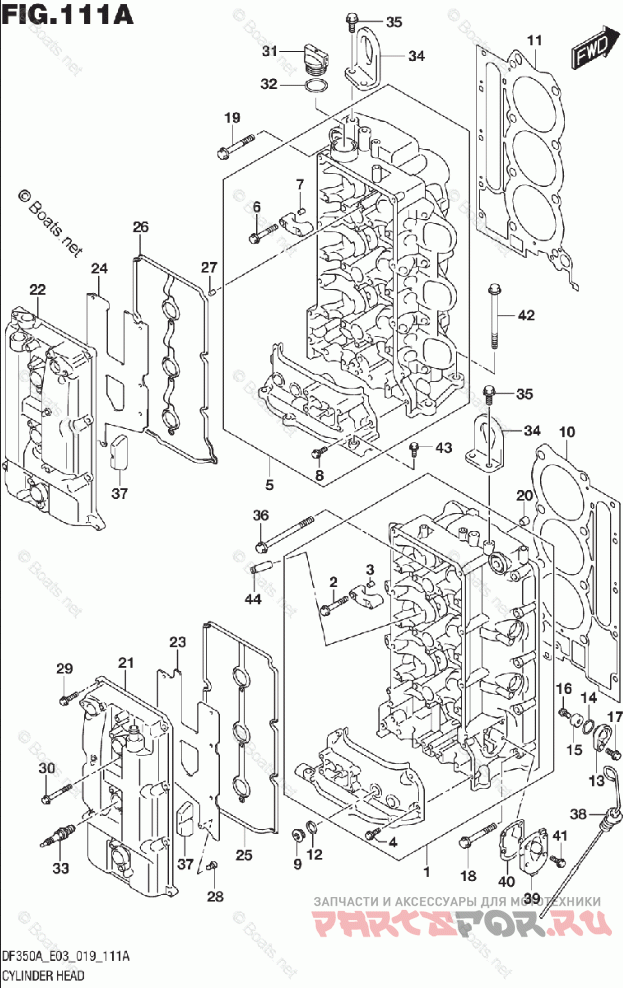

CYLINDER HEAD

Suzuki Marine DF 350ATXX

Suzuki Marine
#oem кодцена
1
11101-98L10
HEAD ASSY, CYLINDER STBD
2
09103-06266
BOLT (6X40)
3
09206-08001
PIN (8X11)
4
01547-06207
BOLT
5
11103-98L10
HEAD ASSY, CYLINDER PORT
6
09103-06266
BOLT (6X40)
7
09206-08001
PIN (8X11)
8
01547-06207
BOLT
9
11116-93J01
PLUG
10
11141-98L00
GASKET, CYL HEAD STBD
11
11142-98L00
GASKET, CYL HEAD PORT
12
11216-98L10
GASKET
13
11261-93J00
COVER, PROTECTION ANODE
14
09280-22019
O RING (D:1.9,ID:21.8)
15
55321-87J01
ANODE, PROTECTION
16
09103-06281
BOLT (6X14)
17
01550-0820C
BOLT
18
01550-08607
BOLT *{STBD}*
19
01550-08607
BOLT *{PORT}*
20
09206-15001
PIN (12.4X15X17)
21
11170-93J01
COVER, CYL HEAD STBD
22
11180-98L00
COVER, CYLINDER HEAD PORT
23
11173-93J00
PLATE, BREATHER STBD
24
11183-93J00
PLATE, BREATHER PORT
25
11179-93J00
GASKET, CYL HEAD COVER STBD
26
11189-93J00
GASKET, CYL HEAD COVER PORT
27
09206-08001
PIN (8X11)
28
02142-0612A
SCREW
29
01547-0625C
BOLT
30
01547-06507
BOLT
31
11382-93J00
CAP, OIL FILLER
32
09280-26006
O RING (D:3.1,ID:26.4)
33
09482-00642
SPARK PLUG (ILZKR7D8) *{NGK}*
34
11291-98L00
HOOK, ENGINE
35
01550-0820C
BOLT
36
11119-98L00
BOLT, CYLINDER HEAD
37
11186-15501
SEPARATOR, OIL BREATHER
38
16910-98L00
GAUGE, OIL LEVEL
39
16931-98L00
GUIDE, OIL LEVEL GAUGE
40
16941-98L00
GASKET, OIL LEVEL GAUGE GUIDE
41
01550-0625C
BOLT
42
09116-10146
BOLT (10X195)
43
01550-0830C
BOLT
44
11115-98L00-001
GUIDE, VALVE (OS:0.5) *{OPT}*
