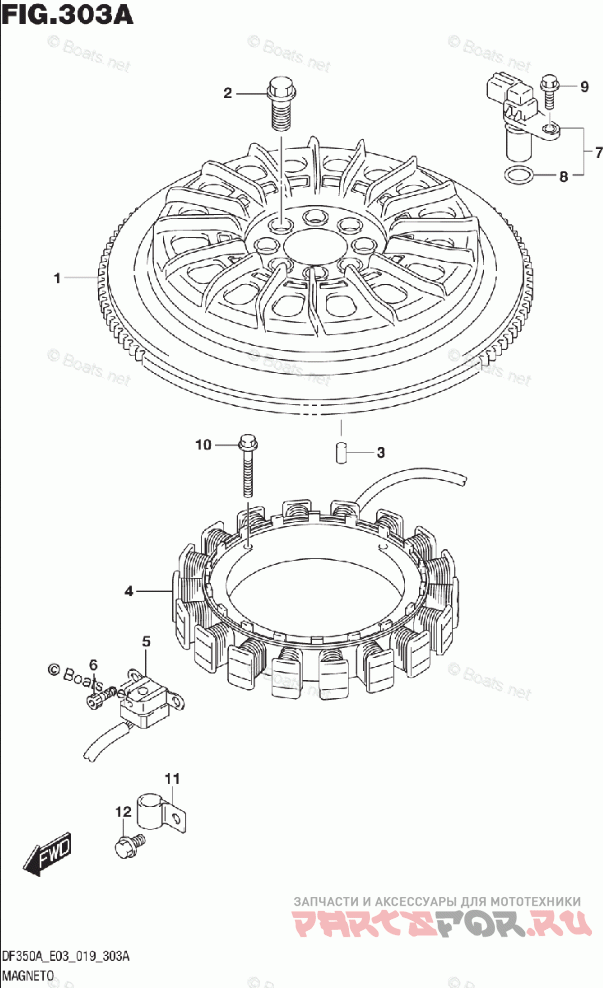

MAGNETO
Suzuki Marine DF 350ATX
| # | oem код | название | цена |
|---|---|---|---|
1 | 32102-98J01 FLYWHEEL | FLYWHEEL | |
2 | 09103-12125 BOLT (12X26) | BOLT (12X26) | |
3 | 09202-06031 PIN (6X12) | PIN (6X12) | |
4 | 32120-98L00 COIL, BATTERY CHARGING | COIL, BATTERY CHARGING | |
5 | 32160-98L00 COIL, IGNITION TIMING | COIL, IGNITION TIMING | |
6 | 09106-05030 BOLT (5X10) | BOLT (5X10) | |
7 | 33220-98J00 SENSOR, CAM POSITION | SENSOR, CAM POSITION | |
8 | 33221-42F00 O RING | O RING | |
9 | 01550-0616C BOLT | BOLT | |
10 | 09103-06231 BOLT (6X35) | BOLT (6X35) | |
11 | 09403-13408 CLAMP | CLAMP | |
12 | 01550-0612C BOLT | BOLT |
