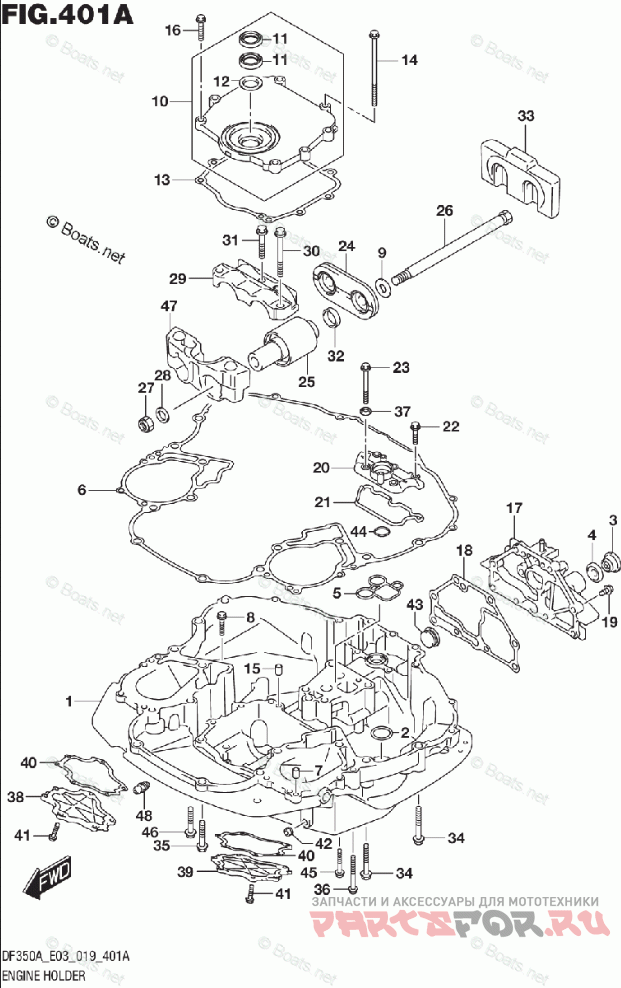

ENGINE HOLDER

Suzuki Marine DF 350ATX

Suzuki Marine
#oem кодцена
1-1
51111-98L00-YAY
HOLDER, ENGINE (BLACK)
1-2
51111-98L00-Y5S
HOLDER, ENGINE (WHITE)
2
16519-93J00
SEAL, ENGINE HOLDER OIL
3
17913-93J00
PLUG, WATER
4
17914-93J00
GASKET, WATER PLUG
5
51116-98L00
SEAL, WATER RETURN
6
51211-98L00
GASKET, ENGINE HOLDER
7
09206-08001
PIN (8X11)
8
01550-1050A
BOLT
9
09160-14076
WASHER (14.5X32X3)
10
51120-98L00
COVER, MOUNT OIL SEAL
11
51124-93J01
OIL SEAL
12
51125-93J00
SCRAPER
13
51123-98L00
GASKET, MOUNT OIL SEAL COVER
14
09103-08109
BOLT (8X120)
15
09206-08001
PIN (8X11)
16
01550-0830A
BOLT
17
51140-98L00-019
COVER, ENGINE HOLDER (BLACK)
18
51142-98L00
GASKET, ENGINE HOLDER COVER
19
09116-08122
BOLT (8X30)
20
51151-98L00
COVER, ENGINE HOLDER UPPER
21
51152-98L00
SEAL, ENGINE HOLDER UPPER COV
22
01550-0830C
BOLT
23
01550-08607
BOLT
24
54120-98L00
PLATE, UPPER MOUNT
25
54130-98L01
MOUNT, UPPER
26
54112-93J00
BOLT, UPPER MOUNT
27
29159-93J00
NUT, UPPER MOUNT BOLT
28
09160-15051
WASHER (15X24X3)
29
54137-93J02
COVER, UPPER MOUNT
30
09116-10135
BOLT (10X95)
31
09116-10175
BOLT (10X50)
32
54127-98L00
MOUNT, UPPER SIDE
33
54140-98J10
MOUNT, UPPER THRUST REVERSE
34
09116-10137
BOLT (10X70)
35
09116-10175
BOLT (10X50)
36
09116-08126
BOLT (8X65)
37
09169-08038
WASHER
38
51161-98L00
COVER, ENG HLDR WATER JKT STB
39
51165-98L00
COVER, ENG HLDR WATER JKT POR
40
51162-98L00
GASKET, ENG HLDR WATER JKT CO
41
09116-06516
BOLT (6X25)
42
09246-08006
PLUG
43
09248-26003
PLUG
44
09280-26014
O RING (D:2.4,ID:25.8)
45
09116-08131
BOLT (8X45)
46
09116-10135
BOLT (10X95)
47
54180-98L00
MOUNT, UPPER SIDE
48
22511-99011
NIPPLE, GREASE
