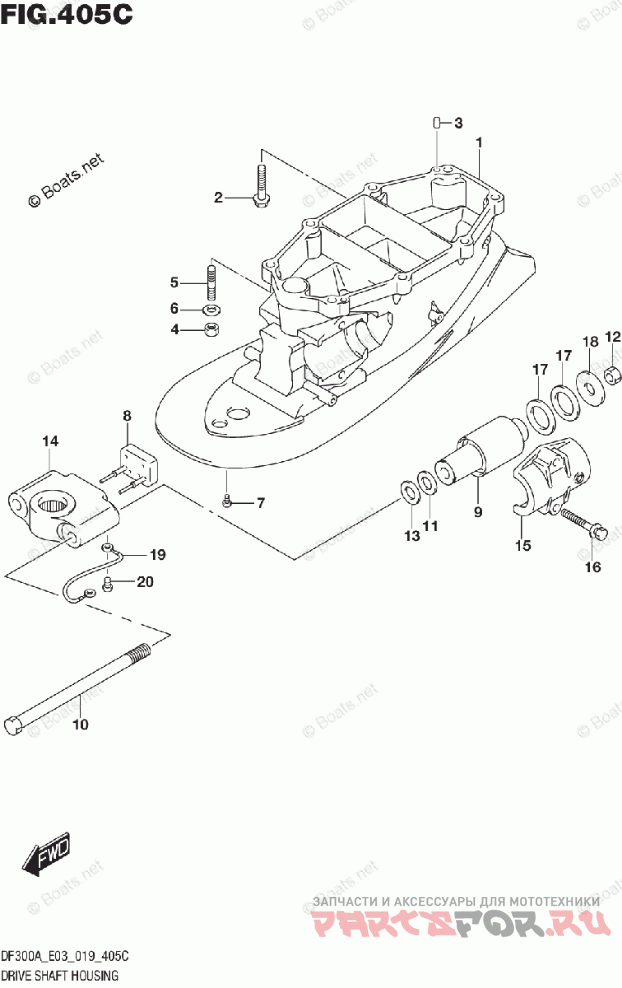

Drive Shaft Housing Transom(L)

Suzuki Marine DF 300APL

Suzuki Marine
#oem кодцена
1-1
52111-98J20-YAY
HOUSING, DRIVE SHAFT (BLACK)
1-2
52111-98J20-Y5S
HOUSING, DRIVE SHAFT (WHITE)
2
09116-10176
BOLT (10X44)
3
09202-08006
PIN (8X12)
4
09140-10031
NUT
5
09108-10150
STUD BOLT
6
09160-10141
WASHER (10.5X19X2)
7
09125-06063
SCREW (6X10)
8
54150-98J00
MOUNT, LOWER THRUST
9
54160-98J00
MOUNT, LOWER
10
54112-93J00
BOLT, LOWER MOUNT
11
09160-16050
WASHER (16X32X3)
12
29159-93J00
NUT, LOWER MOUNT BOLT
13
09160-16050
WASHER (16X32X3)
14-2
54211-93J00-Y5S
BRACKET, LOWER MOUNT (WHITE)
14-1
54211-93J00-YAY
BRACKET, LOWER MOUNT (BLACK)
15-2
54221-93J00-Y5S
COVER, LOWER MOUNT (WHITE)
15-1
54221-93J00-YAY
COVER, LOWER MOUNT (BLACK)
16
09116-10175
BOLT (10X50)
17
54165-98J01
STOPPER, LOWER THRUST REVERSE
18
09160-14066
WASHER (14X50X4)
19
36894-87D00
LEAD (MOUNT BRKT TO HSG)
20
09125-06063
SCREW (6X10)
21
SPECIAL-NOTE
DF300A E03
