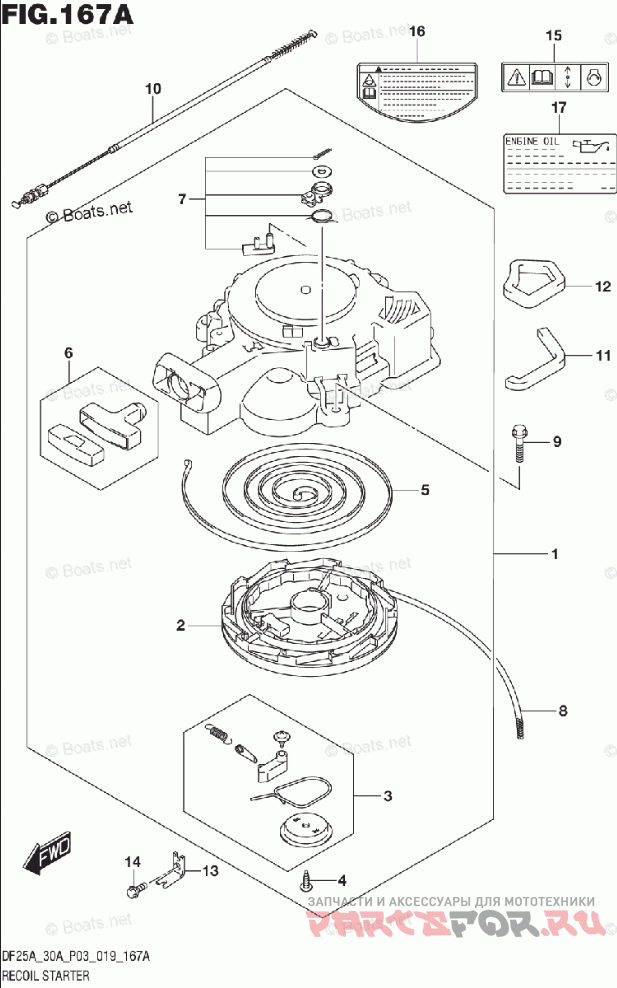

RECOIL STARTER

Suzuki Marine DF 25ATHS

RECOIL STARTER

#

oem код

название

цена

1

STARTER ASSY, RECOIL

STARTER ASSY, RECOIL

2

REEL

REEL

3

RATCHET SET

RATCHET SET

4

SCREW

SCREW

5

SPRING, SPIRAL

SPRING, SPIRAL

6

GRIP ASSY

GRIP ASSY

7

NSI SET

NSI SET

8

99000-81158-50M

STARTER ROPE 5MMDIA, 50M ROLE *{OPT L:50000->1500}*

STARTER ROPE 5MMDIA, 50M ROLE *{OPT L:50000->1500}*

9

BOLT

BOLT

10

CABLE ASSY, NSI

CABLE ASSY, NSI

11

SEAL, AIR RECOIL LOWER

SEAL, AIR RECOIL LOWER

12

SEAL, AIR RECOIL UPPER

SEAL, AIR RECOIL UPPER

13

BRACKET, NSI CABLE

BRACKET, NSI CABLE

14

BOLT

BOLT

15

LABEL, S.I.G.P.

LABEL, S.I.G.P.

16

LABEL, RECOIL, STARTER

LABEL, RECOIL, STARTER

17

LABEL, OIL / CLEARANCE

LABEL, OIL / CLEARANCE
