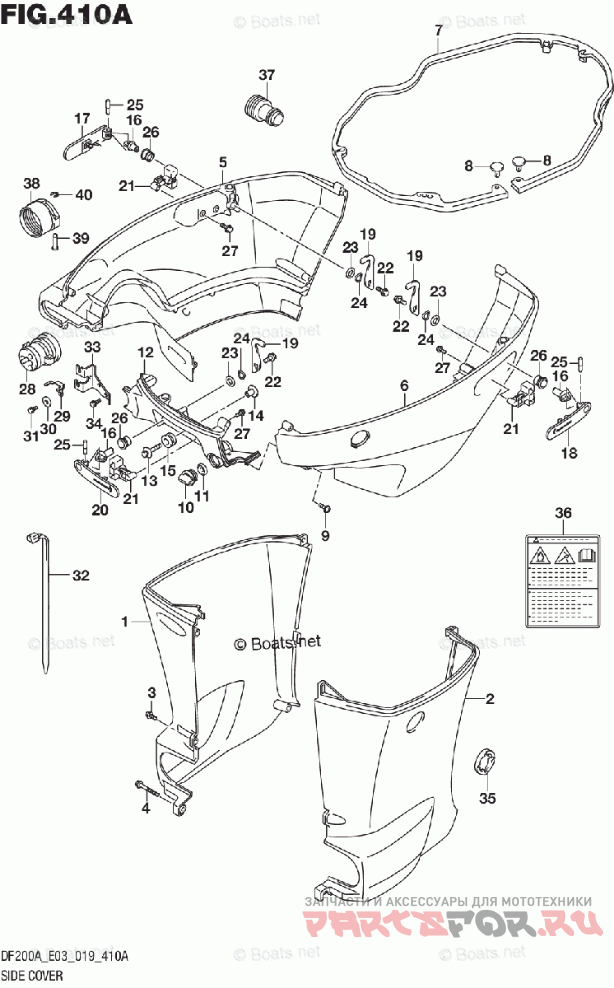

SIDE COVER (DF200AT)(DF175AT)

Suzuki Marine DF 200ATX

Suzuki Marine
#oem кодцена
1-3
61131-96J12-YAY
COVER, OIL PAN STBD (X) (BLACK) *{W/TRANSOM(X)}*
1-4
61131-96J12-Y5S
COVER, OIL PAN STBD (X) (WHITE) *{W/TRANSOM(X)}*
1-2
61131-96J03-Y5S
COVER, OIL PAN STBD (L) (WHITE) *{W/TRANSOM(L)}*
1-1
61131-96J03-YAY
COVER, OIL PAN STBD (L) (BLACK) *{W/TRANSOM(L)}*
2-1
61141-96J03-YAY
COVER, OIL PAN PORT (L) (BLACK) *{W/TRANSOM(L)}*
2-2
61141-96J03-Y5S
COVER, OIL PAN PORT (L) (WHITE) *{W/TRANSOM(L)}*
2-3
61141-96J12-YAY
COVER, OIL PAN PORT (X) (BLACK) *{W/TRANSOM(X)}*
2-4
61141-96J12-Y5S
COVER, OIL PAN PORT (X) (WHITE) *{W/TRANSOM(X)}*
3-2
09139-06135
SCREW (6X17) *{W/TRANSOM(X)}*
3-1
09139-06135
SCREW (6X17) *{W/TRANSOM(L)}*
4
09139-06147
BOLT (6X114) *{W/TRANSOM(L)}*
5-2
61811-96L01-Y5S
COVER, SIDE STBD (WHITE)
5-1
61811-96L01-YAY
COVER, SIDE STBD (BLACK)
6-1
61820-96L01-YAY
COVER, SIDE PORT (BLACK)
6-2
61820-96L01-Y5S
COVER, SIDE PORT (WHITE)
7
61134-96J02
SEAL, SIDE COVER
8
09409-05302-5PK
CLIP (BLACK)
9
09136-06148
SCREW (6X35)
10
17913-93J00
PLUG, WATER
11
17914-93J00
GASKET, WATER PLUG
12-2
61831-96J10-Y5S
PANEL, FRONT (WHITE)
12-1
61831-96J10-YAY
PANEL, FRONT (BLACK)
13
09116-08174
BOLT (8X38)
14
09169-08039
WASHER
15
09320-11013
CUSHION
16
61632-93J00
SHAFT, ENGINE COVER HOOK
17
61633-96J02
LEVER, HOOK RR STBD
18
61634-96J02
LEVER, HOOK RR PORT
19
61641-93J10
HOOK, ENGINE COVER
20
61645-96J02
LEVER, HOOK FR
21
61673-96J02
LATCH, HOOK LEVER
22
09116-06127
BOLT (6X12)
23
09160-13014
WASHER (13.2X25X1)
24
09164-14008
WASHER
25
09202-04022
PIN
26
09306-13007
BUSH
27
09103-05026
BOLT
28
61124-96J50
GROMMET, REMOCON CABLE
29
67343-96J00
STOPPER, REMOCON CABLE
30
09160-06047
WASHER (6.5X20X2)
31
01570-06127
BOLT
32
09407-25402
CLAMP (L:250)
33
67341-96J00
HOLDER, REMOCON CABLE
34
01550-06167
BOLT
35
61136-96L00
CUSHION, OIL PAN COVER
36
61458-90J00
LABEL, ENGINE COVER
37
17917-87L00
CONNECTOR, FLUSH WATER
38
67361-90J10
ADAPTER, HOSE
39
09208-06009
PIN, HOSE ADAPTER
40
09383-04002
E RING
41
SPECIAL-NOTE
DF200AT E03 DF175AT E03
