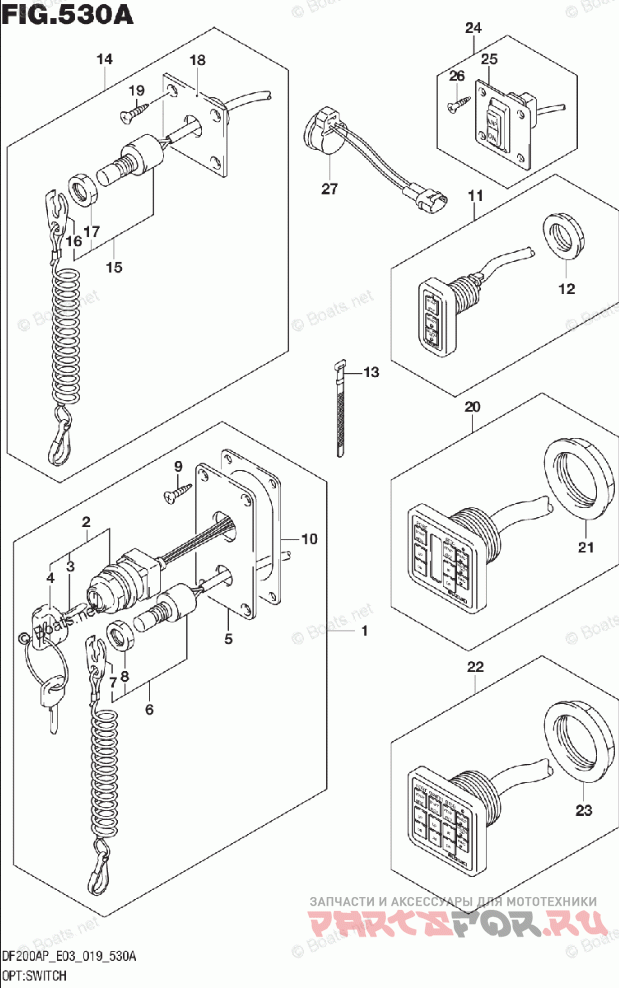

OPT:SWITCH

Suzuki Marine DF 175APL

Suzuki Marine
#oem кодцена
1
37100-98J05
PANEL ASSY, MAIN SW
2
37110-98J01
SWITCH ASSY, MAIN
3-8
37141-99E50
KEY (936)
3-4
37141-99E10
KEY (932)
3-2
37141-99EB0
KEY (942)
3-1
37141-99EA0
KEY (941)
3-12
37141-99E90
KEY (940)
3-11
37141-99E80
KEY (939)
3-10
37141-99E70
KEY (938)
3-9
37141-99E60
KEY (937)
3-7
37141-99E40
KEY (935)
3-6
37141-99E30
KEY (934)
3-5
37141-99E20
KEY (933)
3-3
37141-99E00
KEY (931)
4
37143-99E00
CAP, KEY
5
37139-98J10
PANEL, MAIN SW
6
37820-93J10
SWITCH ASSY, EMERGENCY STOP
7
37823-92E01
PLATE ASSY, EMERGENCY SW LOCK
8
37826-92J10
NUT
9
03122-05165
SCREW
10
37114-98J00
SHEET, MAIN SW PANEL
11
37100-98J11
PANEL ASSY, SINGLE
12
37112-98J00
NUT
13
09407-08401
CLAMP (L:80)
14
37803-93J05
PANEL ASSY, EMERGENCY SW
15
37820-93J10
SWITCH ASSY, EMERGENCY
16
37823-92E01
PLATE ASSY, EMERGENCY SW LOCK
17
37826-92J10
NUT
18
37825-99E10
PANEL, EMERGENCY STOP SW
19
03122-05165
SCREW
20
37100-98J21
PANEL ASSY, DUAL
21
37112-98J10
NUT
22
37100-98J31
PANEL ASSY, TRIPLE
23
37112-98J10
NUT
24
37860-87L00
PANEL ASSY, TROLLING CTR SW
25
37862-87L00
PANEL
26
09131-05004
SCREW (5X16)
27
38500-93J90
BUZZER, WARNING
