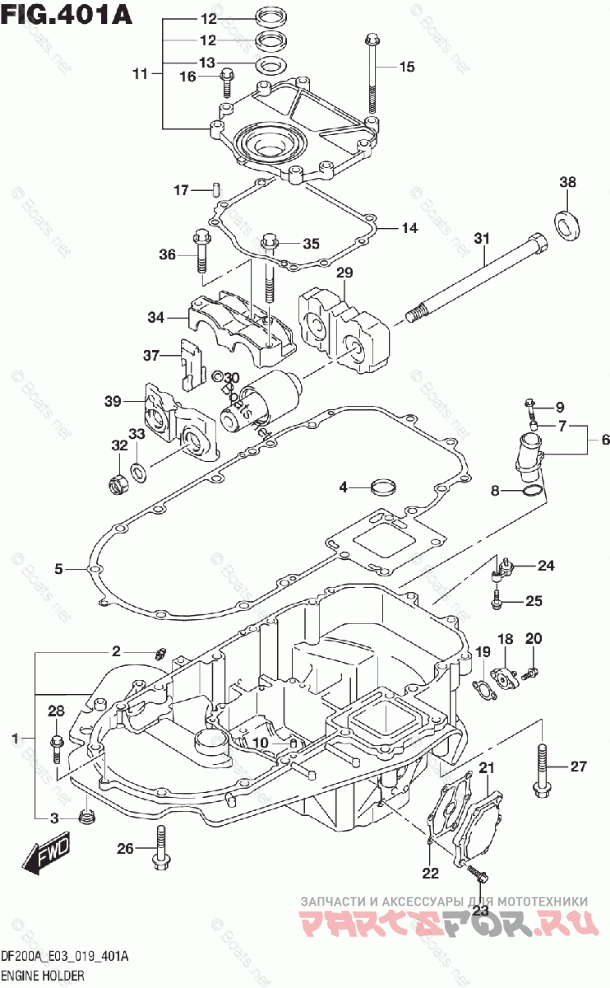

ENGINE HOLDER (DF200AT)(DF200AZ)(DF175AT)(DF175AZ)(DF150AZ)

Suzuki Marine DF 150ATL

Suzuki Marine
#oem кодцена
1-1
51110-96J21-YAY
HOLDER, ENGINE (BLACK)
1-2
51110-96J21-Y5S
HOLDER, ENGINE (WHITE)
2
22511-99011
NIPPLE, GREASE
3
09250-18002
CAP (OD:21)
4
16519-93J00
SEAL, ENGINE HOLDER OIL
5
51211-96J00
GASKET, ENGINE HOLDER
6
51115-90J10
UNION, WATER RETURN
7
09180-06289
SPACER (6.5X10X11.5)
8
09280-26006
O RING (D:3.1,ID:26.4)
9
01550-06257
BOLT
10
09206-08001
PIN (8X11)
11
51120-96J20
COVER, MOUNT OIL SEAL
12
51124-93J01
OIL SEAL
13
51125-93J00
SCRAPER
14
51123-96J02
GASKET, MOUNT OIL SEAL COVER
15
09103-08109
BOLT (8X120)
16
01550-0830A
BOLT
17
09206-08001
PIN (8X11)
18
51140-96J00
COVER, ENGINE HOLDER
19
51142-96J00
GASKET, ENGINE HOLDER COVER
20
01550-06207
BOLT
21
51161-96J01
COVER, ENG HOLDER WATER JKT
22
51162-96J00
GASKET, ENG HOLDER WTR JKT CO
23
09103-06093
BOLT (6X20)
24
51170-96J01
BRACKET, WATER INDICATOR
25
09116-06121
BOLT (6X25)
26
09116-10180
BOLT (10X50)
27
09116-10137
BOLT (10X70)
28
01550-08307
BOLT
29
54121-96J01
MOUNT, UPPER THRUST
30
54130-96J01
MOUNT, UPPER
31
54112-96J02
BOLT, UPPER MOUNT
32
29159-93J00
NUT, UPPER MOUNT BOLT
33
09160-15051
WASHER (15X24X3)
34
54137-93J02
COVER, UPPER MOUNT
35
09116-10135
BOLT (10X95)
36
09116-10175
BOLT (10X50)
37
54127-96J00
MOUNT, UPPER SIDE
38
54122-96J00
SPACER, UPPER MOUNT THRUST
39
54144-96J01
SEAL, UPPER MOUNT
40
SPECIAL-NOTE
DF200AT E03 DF200AZ E03 DF175AT E03 DF175AZ E03 DF150AZ E03
