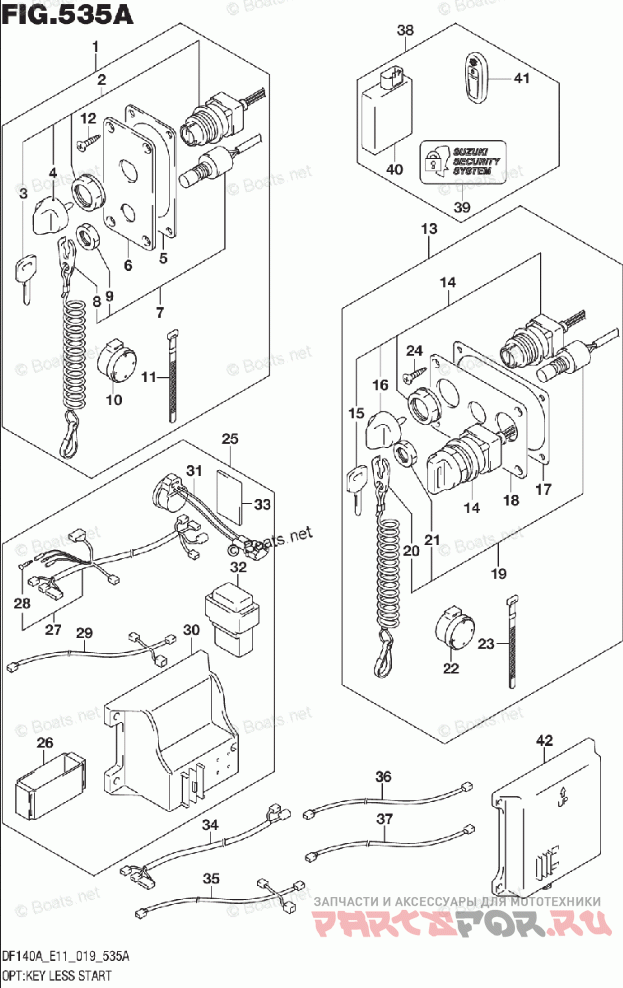

PANEL ASSY, MAIN SWITCH KLS

SWITCH ASSY, MAIN

KEY (931)

KEY (935)

KEY (932)

KEY (934)

KEY (936)

KEY (933)

KNOB, MAIN SWITCH

SHEET, MAIN SWITCH PANEL

PANEL, MAIN SWITCH

SWITCH ASSY, EMERGENCY

PLATE ASSY, EMERGENCY SW LOCK

NUT

BUZZER, WARNING

CLAMP (L:80)

SCREW

PANEL ASSY, DUAL ENGINE SWITC

SWITCH ASSY, MAIN

KEY (932)

KEY (934)

KEY (931)

KEY (933)

KEY (936)

KEY (935)

KNOB, MAIN SWITCH

SHEET, MAIN SWITCH PANEL

PANEL, MAIN SWITCH

SWITCH ASSY, EMERGENCY

PLATE ASSY, EMERGENCY SW LOCK

NUT

BUZZER, WARNING

CLAMP (L:80)

SCREW

HARNESS SET, KLS CONTROLLER

HOLDER, KLS CONT

HARNESS ASSY, KLS CONT

TERMINAL

HARNESS ASSY, KLS CAN *{L:6500+2000}*

HOLDER, KLS PARTS *{SMALL TYPE}*

BUZZER ASSY, KLS

RELAY ASSY, KLS

CUSHION, LEAD WIRE

HARNESS ASSY, KLS DUAL ENG

HARNESS ASSY, KLS CAN *{L:920}*

WIRE, KLS CAN EXT *{CONNECTOR:BLUE}*

WIRE, KLS CAN EXT *{CONNECTOR:BLACK}*

CONTROLLER SET, KLS 433MHZ

CONTROLLER SET, KLS 315MHZ

DECAL, KLS

CONTROLLER ASSY, KLS 315MHZ

CONTROLLER ASSY, KLS 433MHZ

REMOCON ASSY, KLS 315MHZ

REMOCON ASSY, KLS 433MHZ

HOLDER, KLS PARTS *{LARGE TYPE}*

NOTE: USE FREQUENCY ASSIGNED ON YOUR MARKET. FOR DETAILES, PLEASE MAKE SURE OF SUZUKI DEALERS. DF100AT E11 DF115AT E11 DF115AZ E11 DF140AT E11 DF140AZ E11 DF115AST E03
