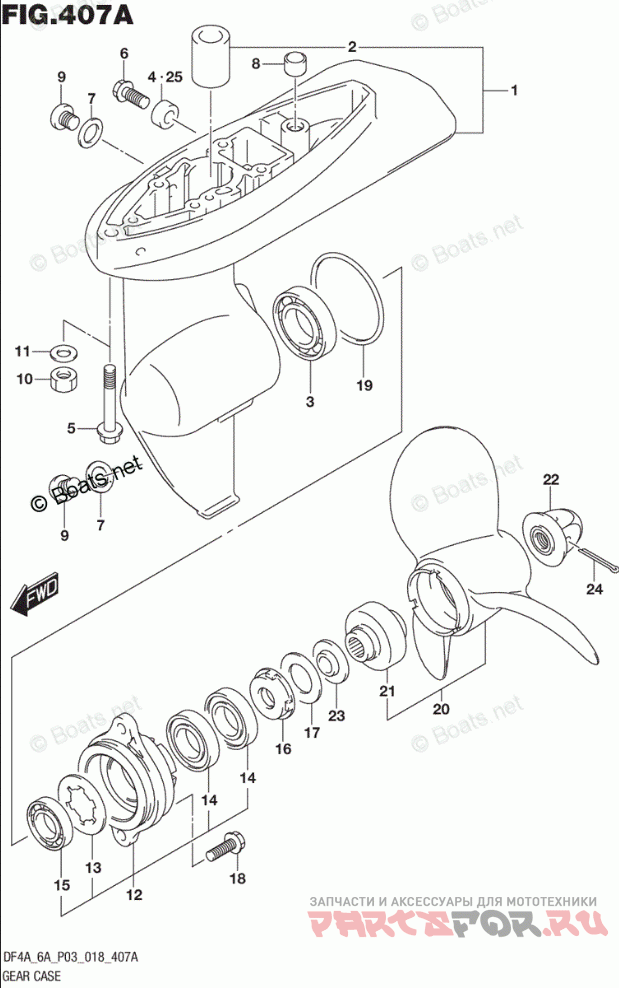

GEAR CASE

Suzuki Marine DF 6AL2

GEAR CASE

#

oem код

название

цена

1

55110-97L00-YAY

CASE ASSY, GEAR (BLACK)

CASE ASSY, GEAR (BLACK)

2

BUSH

BUSH

3

BEARING (20X42X12)

BEARING (20X42X12)

4

ANODE, PROTECTION

ANODE, PROTECTION

5

BOLT (8X50) *{W/TRANSOM(S)}*

BOLT (8X50) *{W/TRANSOM(S)}*

6

BOLT (6X14)

BOLT (6X14)

7

GASKET, DRAIN PLUG

GASKET, DRAIN PLUG

8

PIN (8.4X11X8)

PIN (8.4X11X8)

9

PLUG (8X7.5)

PLUG (8X7.5)

10

09140-08023-XC0

NUT *{W/TRANSOM(L)}*

NUT *{W/TRANSOM(L)}*

11

WASHER (8.5X16X1.2) *{W/TRANSOM(L)}*

WASHER (8.5X16X1.2) *{W/TRANSOM(L)}*

12

56120-97L00-YAY

HOUSING, PROP SFT BRG (BLACK)

HOUSING, PROP SFT BRG (BLACK)

13

WASHER

WASHER

14

OIL SEAL (12X24X4.5)

OIL SEAL (12X24X4.5)

15

BEARING (12X28X8)

BEARING (12X28X8)

16

PROTECTOR, OIL SEAL

PROTECTOR, OIL SEAL

17

WASHER, PROTECTOR

WASHER, PROTECTOR

18

BOLT (6X15)

BOLT (6X15)

19

O RING (D:2.6,ID:48.7)

O RING (D:2.6,ID:48.7)

20-1

58110-91JL0-019

PROPELLER (3X7-1/2X6) (BLACK)

PROPELLER (3X7-1/2X6) (BLACK)

20-2

58110-91JM0-019

PROPELLER (3X7-1/2X6-1/2) (BLACK)

PROPELLER (3X7-1/2X6-1/2) (BLACK)

20-3

58110-91JN0-019

PROPELLER (3X7-1/2X7) (BLACK)

PROPELLER (3X7-1/2X7) (BLACK)

21

BUSH, PROPELLER

BUSH, PROPELLER

22

NUT, PROPELLER

NUT, PROPELLER

23

STOPPER, PROPELLER BUSH

STOPPER, PROPELLER BUSH

24

COTTER PIN

COTTER PIN

25

ANODE (MAGNESIUM) *{OPT}*

ANODE (MAGNESIUM) *{OPT}*
