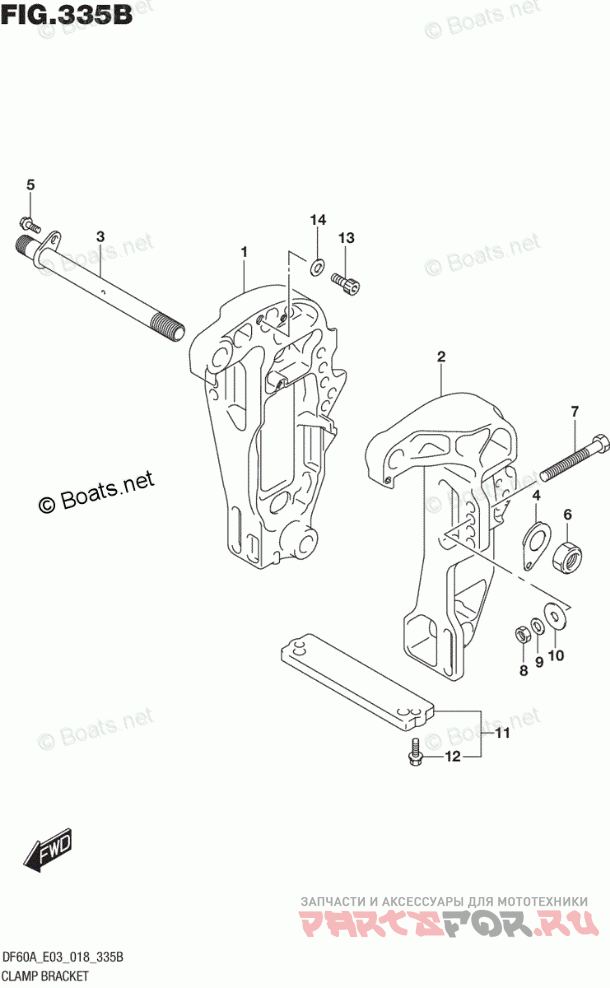

Clamp Bracket (DF60A)

Suzuki Marine DF 60ATLW2

Clamp Bracket (DF60A)

#

oem код

название

цена

1-2

41111-88L11-Y5S

BRACKET, CLAMP STBD (WHITE)

BRACKET, CLAMP STBD (WHITE)

1-1

41111-88L11-YAY

BRACKET, CLAMP STBD (BLACK)

BRACKET, CLAMP STBD (BLACK)

2-2

41121-88L01-Y5S

BRACKET, CLAMP PORT (WHITE)

BRACKET, CLAMP PORT (WHITE)

2-1

41121-88L01-YAY

BRACKET, CLAMP PORT (BLACK)

BRACKET, CLAMP PORT (BLACK)

3

SHAFT, CLAMP BRACKET

SHAFT, CLAMP BRACKET

4

WASHER, CLAMP BRACKET SHAFT

WASHER, CLAMP BRACKET SHAFT

5

BOLT (8X22)

BOLT (8X22)

6

NUT

NUT

7-2

BOLT (12X115) *{OPT}*

BOLT (12X115) *{OPT}*

7-1

BOLT (12X100)

BOLT (12X100)

8

NUT

NUT

9

WASHER (12.5X22X3)

WASHER (12.5X22X3)

10

WASHER (12.5X35X3)

WASHER (12.5X35X3)

11

ZINC, PROTECTION

ZINC, PROTECTION

12

BOLT (6X25)

BOLT (6X25)

13

BOLT (10X20)

BOLT (10X20)

14

WASHER (10.5X19X2)

WASHER (10.5X19X2)

15

DF60A E03

DF60A E03
