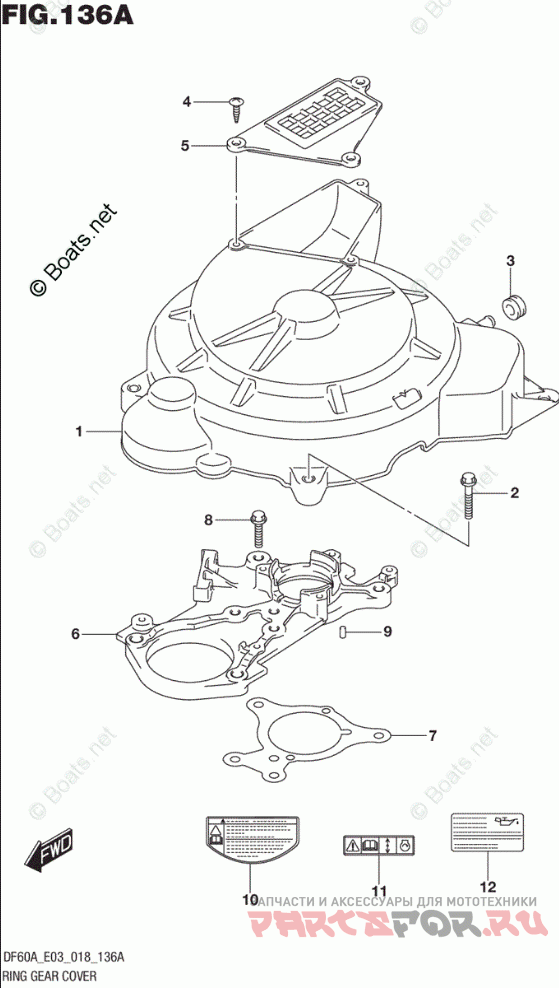

RING GEAR COVER
Suzuki Marine DF 40ATL2
| # | oem код | название | цена |
|---|---|---|---|
1 | 11510-88L00 COVER, RING GEAR | COVER, RING GEAR | |
2 | 01550-0630C BOLT | BOLT | |
3 | 09320-09501 CUSHION | CUSHION | |
4 | 03542-06209 SCREW | SCREW | |
5 | 11514-88L00 PLATE, RING GEAR COVER | PLATE, RING GEAR COVER | |
6 | 11411-88L00 HOUSING, UPPER OIL SEAL | HOUSING, UPPER OIL SEAL | |
7 | 11413-88L00 GASKET, UPPER OIL SEAL | GASKET, UPPER OIL SEAL | |
8 | 01550-0625C BOLT | BOLT | |
9 | 04221-04089 PIN | PIN | |
10 | 61472-88L00 LABEL, MAG COVER | LABEL, MAG COVER | |
11 | 69711-93E10 LABEL (S.I.G.P.) | LABEL (S.I.G.P.) | |
12 | 61494-88L01 LABEL, OIL & CLEARANCE | LABEL, OIL & CLEARANCE |
