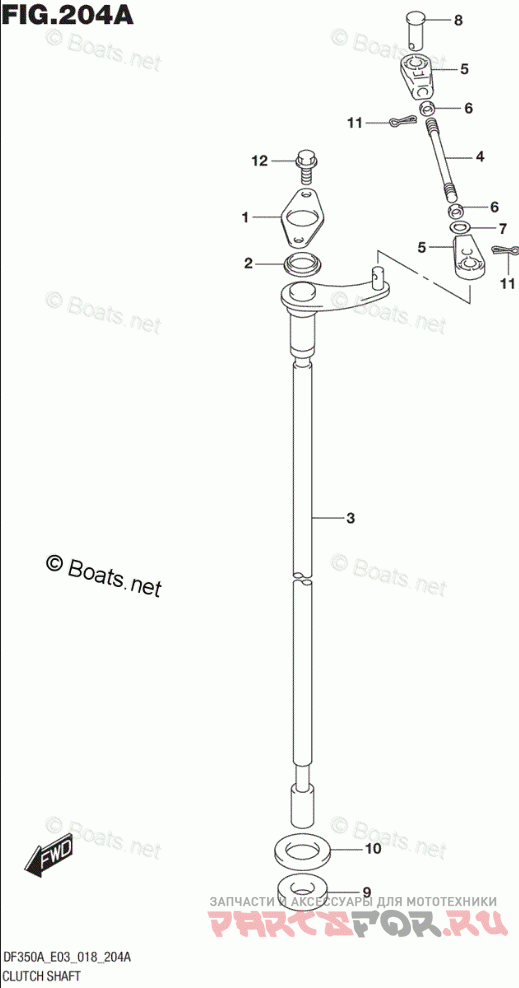

CLUTCH SHAFT
Suzuki Marine DF 350ATXW2
| # | oem код | название | цена |
|---|---|---|---|
1 | 21152-98L00 PLATE, CLUTCH SFT | PLATE, CLUTCH SFT | |
2 | 21153-98L00 BUSH, CLUTCH SFT | BUSH, CLUTCH SFT | |
3 | 21210-98L00 SHAFT, CLUTCH | SHAFT, CLUTCH | |
4 | 21241-98L00 LINK, CLUTCH LEVER | LINK, CLUTCH LEVER | |
5 | 67467-98L00 CONNECTOR, CLUTCH LINK | CONNECTOR, CLUTCH LINK | |
6 | 09140-06023 NUT | NUT | |
7 | 09160-08091 WASHER (8.5X14X1.0) | WASHER (8.5X14X1.0) | |
8 | 09200-08074 PIN | PIN | |
9 | 09262-17019 BEARING (17X35X8) | BEARING (17X35X8) | |
10 | 09282-22003 OIL SEAL (22X38X6) | OIL SEAL (22X38X6) | |
11 | 09385-08004 PIN | PIN | |
12 | 01550-06167 BOLT | BOLT |
