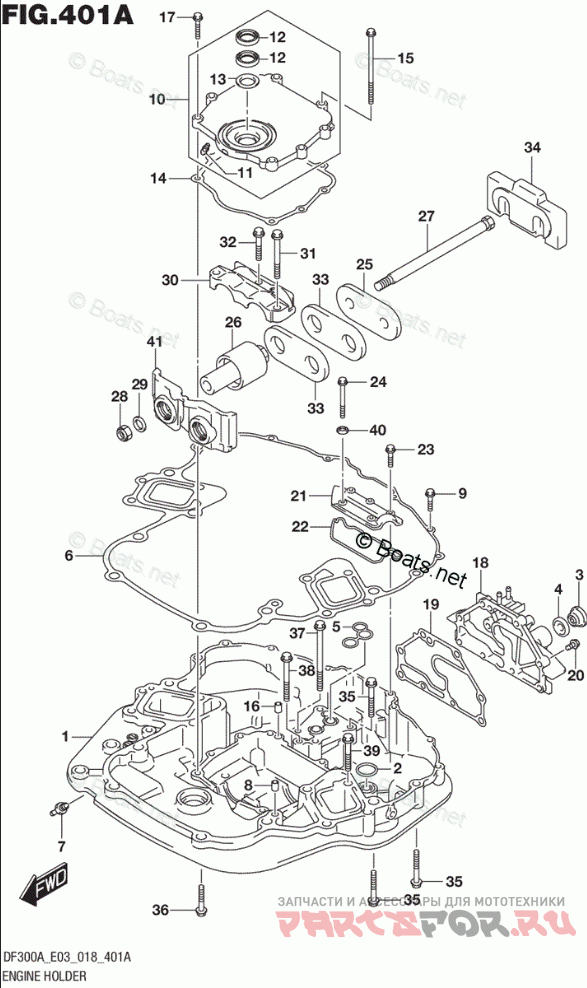

ENGINE HOLDER (DF300A) для лодочных моторов Suzuki Marine DF 300APX (2018)

ENGINE HOLDER (DF300A)

Suzuki Marine DF 300APX

oem код

название

цена

1-1

51111-93J20-YAY

HOLDER, ENGINE (BLACK)

1-2

51111-93J20-Y5S

HOLDER, ENGINE (WHITE)

16519-93J00

SEAL, ENGINE HOLDER OIL

PLUG, WATER

GASKET, WATER PLUG

SEAL, WATER RETURN

GASKET, ENGINE HOLDER

61155-93J20

UNION, WATER INDICATOR

09206-08001

PIN (8X11)

01550-08307

BOLT

51120-93J02

COVER, MOUNT OIL SEAL

NIPPLE, GREASE

OIL SEAL

SCRAPER

GASKET, MOUNT OIL SEAL COVER

09103-08109

BOLT (8X120)

09206-08001

PIN (8X11)

01550-0830A

BOLT

18-4

51140-98J00-Y5S

COVER, ENGINE HOLDER (WHITE) *{W/TRANSOM(X) W/TRANSOM(XX)}*

18-1

51140-93J11-YAY

COVER, ENGINE HOLDER (BLACK) *{W/TRANSOM(L)}*

18-2

51140-98J00-YAY

COVER, ENGINE HOLDER (BLACK) *{W/TRANSOM(X) W/TRANSOM(XX)}*

18-3

51140-93J11-Y5S

COVER, ENGINE HOLDER (WHITE) *{W/TRANSOM(L)}*

51142-93J00

GASKET, ENGINE HOLDER COVER

09116-08122

BOLT (8X30)

51151-93J00

COVER, ENGINE HOLDER UPPER

51152-93J00

SEAL, ENGINE HOLDER UPPER COV

BOLT

BOLT

PLATE, UPPER MOUNT

MOUNT, UPPER

BOLT, UPPER MOUNT

NUT, UPPER MOUNT BOLT

WASHER (15X24X3)

COVER, UPPER MOUNT

BOLT (10X95)

BOLT (10X50)

33-2

54121-93J20

STOPPER, UPPER THRUST *{W/TRANSOM(L)}*

33-1

54121-98J01

STOPPER, UPPER THRUST *{W/TRANSOM(X,XX)}*

54140-98J00

MOUNT, UPPER THRUST REVERSE

BOLT (10X70)

BOLT (10X50)

BOLT (10X195)

BOLT (10X115)

BOLT (8X65)

WASHER (8.3X15X3)

SEAL, UPPER MOUNT

DF300A E03
