Clutch Rod (DF25A)(DF25ATH)(DF25AQ)(DF30ATH) для лодочных моторов Suzuki Marine DF 25THLW2 (2018)

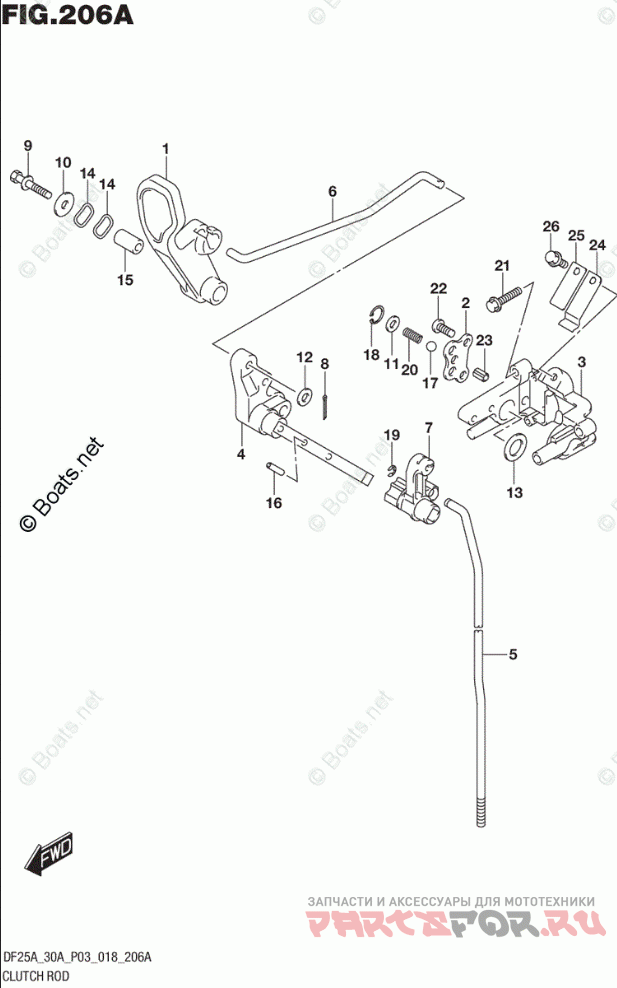

Clutch Rod (DF25A)(DF25ATH)(DF25AQ)(DF30ATH)

Suzuki Marine DF 25THLW2

Clutch Rod (DF25A)(DF25ATH)(DF25AQ)(DF30ATH)

oem код

название

цена

LEVER, CLUTCH

PLATE, CLUTCH NOTCH

HOLDER, CLUTCH SHAFT

SHAFT, CLUTCH LEVER

5-1

23111-94L00

ROD, CLUTCH (S) *{W/TRANSOM(S)}*

5-2

23111-94L10

ROD, CLUTCH (L) *{W/TRANSOM(L)}*

LINK, CLUTCH LEVER

ARM, CLUTCH ROD

BOLT (6X35)

WASHER (6.5X20X1.5)

WASHER (6.5X13X1.0)

WASHER (6.5X15X1.0)

WASHER (13.3X23X1)

WASHER

SPACER (6.2X12.6X21)

SPRING PIN (4X20)

BALL

CIRCLIP

E RING

SPRING

BOLT

SCREW

ROD, SWITCH PUSH

SPRING, CLUTCH NOTCH

SPRING, NOTCH PLATE NO.2

09116-06225

BOLT (6X15)

SPECIAL-NOTE

DF25A P03 DF25ATH P03 DF25AQ P03 DF30ATH P03
