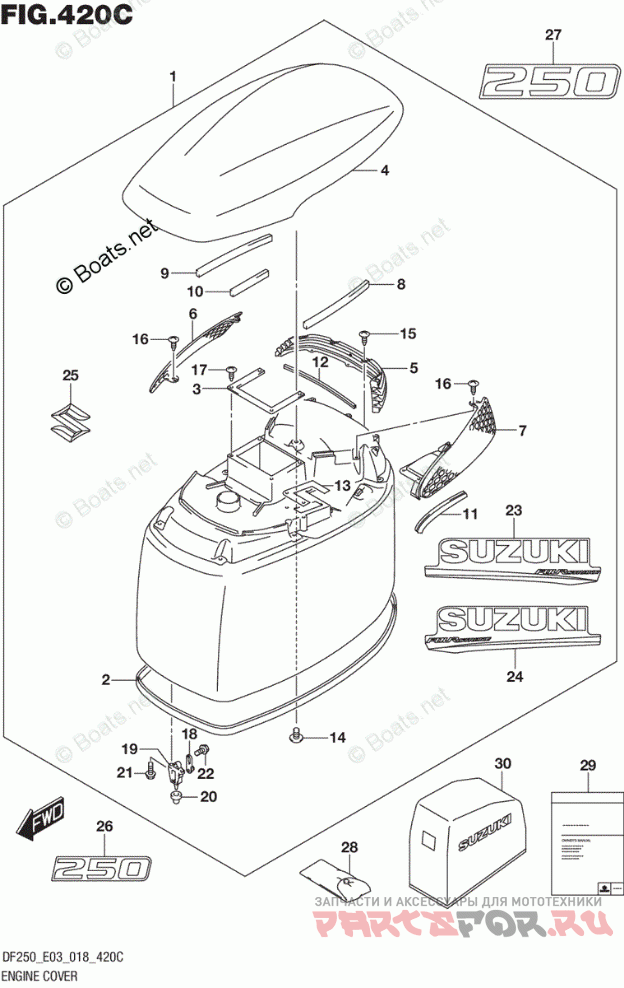

ENGINE COVER (DF250T)(DF250Z)

Suzuki Marine DF 250STL

Suzuki Marine
#oem кодцена
1-1
61420-93890-YAY
COVER SET, ENGINE (BLACK)
1-2
61430-93800-Y5S
COVER SET, ENGINE (WHITE)
2
61112-93J20
RUBBER, ENG COVER
3
61416-93J00
GUARD, AIR INTAKE
4-1
61431-93J03-YAY
HANDLE, TILT UP (BLACK)
4-2
61431-93J03-Y5S
HANDLE, TILT UP (WHITE)
5
61432-93J01
LOUVER, TILT UP HANDLE
6
61433-93J01
COVER, AIR INTK INNER STBD
7
61434-93J01
COVER, AIR INTK INNER PORT
8
61438-93J00
TAPE, TILT UP HANDLE (L:250)
9
61438-93J00
TAPE, TILT UP HANDLE (L:250) *{L:250->190}*
10
61438-93J00
TAPE, TILT UP HANDLE (L:250) *{L:250->106}*
11
61439-93J20
SEAL, TILT UP HANDLE PORT
12
61439-93J40
SEAL, TILT UP HANDLE RR
13
61476-93J00
SEAL, AIR VENT
14
03542-05169
SCREW
15
03542-05169
SCREW
16
03542-05169
SCREW
17
03542-05169
SCREW
18
61610-93J00
FASTENER
19
61621-93J01
BRACKET, FASTENER
20
09329-10022
CUSHION
21
01547-06167
BOLT
22
01550-06127
BOLT
23-1
61443-96J50
STRIPE, ENGINE COVER STBD (BLACK) *{FOR YAY}*
23-2
61443-96J60
STRIPE, ENGINE COVER STBD (WHITE) *{FOR Y5S}*
24-1
61453-96J50
STRIPE, ENGINE COVER PORT (BLACK) *{FOR YAY}*
24-2
61453-96J60
STRIPE, ENGINE COVER PORT (WHITE) *{FOR Y5S}*
25
68111-93J00
EMBLEM (S)
26-2
61422-93JE0
MARK, EMBLEM FRONT (250) (WHITE) *{FOR Y5S}*
26-1
61422-93JD0
MARK, EMBLEM FRONT (250) (BLACK) *{FOR YAY}*
27-1
61435-93JC0
MARK, EMBLEM REAR (250) (BLACK) *{FOR YAY}*
27-2
61435-93JD0
MARK, EMBLEM REAR (250) (WHITE) *{FOR Y5S}*
28
09800-81835
TOOL SET
29-2
99011-93JE0-03B
MANUAL, OWNER'S
29-1
99011-93JE0-054
MANUAL, OWNER'S
30
68110-96J01
COVER, WEATHER *{OPT}*
31
SPECIAL-NOTE
DF250T E03 DF250Z E03
