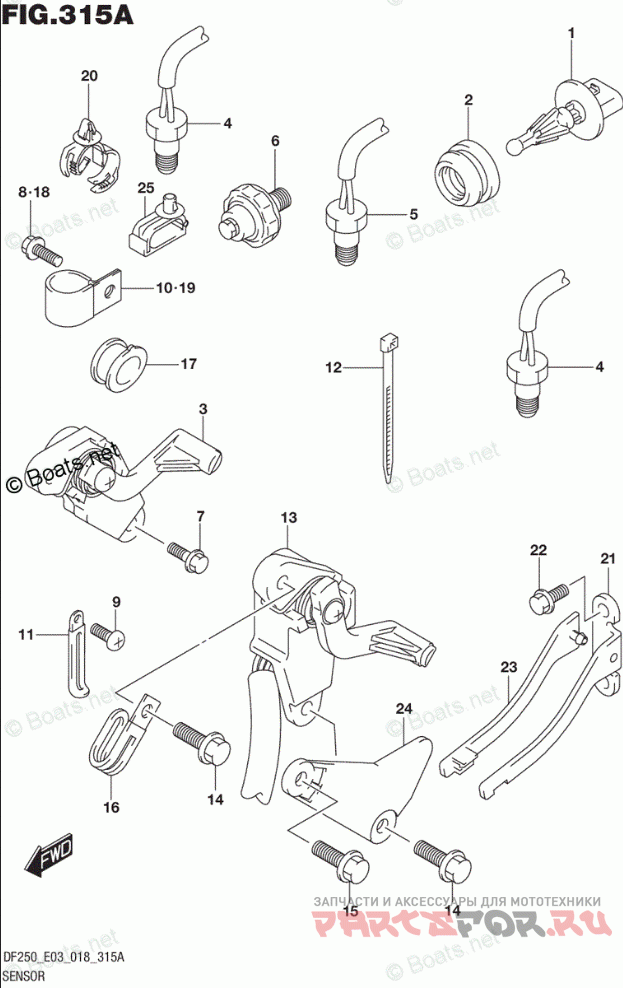

Sensor (DF200T)(DF250ST)

Suzuki Marine DF 200TL

Suzuki Marine
#oem кодцена
1
13650-52G00
SENSOR, INLET AIR TEMP
2
13655-87J00
GROMMET, AIR TEMP SENSOR
3
34801-93J03
SENDER ASSY, TRIM *{W/TRANSOM(X)}*
4
34830-87J20
SENSOR ASSY *{FOR EXHAUST TEMP}*
5
34830-87J20
SENSOR ASSY *{FOR CYLINDER TEMP}*
6
37820-99E02
SWITCH ASSY, OIL PRESSURE
7
09100-06113
BOLT (6X16) *{W/TRANSOM(X)}*
8
29103-93J00
BOLT, TRIM SENDER CLAMP *{W/TRANSOM(X)}*
9
09125-06063
SCREW (6X10) *{W/TRANSOM(X)}*
10
09403-19409
CLAMP *{W/TRANSOM(X)}*
11
29404-93J10
CLAMP, TRIM SENDER *{W/TRANSOM(X)}*
12
09407-14407
CLAMP (L:145)
13
34801-99E04
SENDER ASSY, TRIM *{W/TRANSOM(L)}*
14
09103-06093
BOLT (6X20) *{W/TRANSOM(L)}*
15
09103-06093
BOLT (6X20) *{W/TRANSOM(L)}*
16
29404-93J20
CLAMP, TRIM SENDER LEAD *{W/TRANSOM(L)}*
17
34813-93J00
PROTECTOR, LEAD WIRE *{W/TRANSOM(L)}*
18
29103-93J00
BOLT, PTT MOTOR LEAD CLAMP *{W/TRANSOM(L)}*
19
09403-19409
CLAMP *{W/TRANSOM(L)}*
20
09403-20308
CLAMP *{W/TRANSOM(L)}*
21
43117-96J00
CAM, TRIM SENDER *{W/TRANSOM(L)}*
22
09116-05010
BOLT (5X12) *{W/TRANSOM(L)}*
23
43118-96J00
PLATE, TRIM SENDER CAM *{W/TRANSOM(L)}*
24
41118-96J00
PLATE, TRIM SENDER *{W/TRANSOM(L)}*
25
09403-07340
CLAMP *{W/TRANSOM(X)}*
26
SPECIAL-NOTE
DF200T E03 DF250ST E03
