Drive Shaft для лодочных моторов Suzuki Marine DF 2.5L (2018)

Москва и регионы России

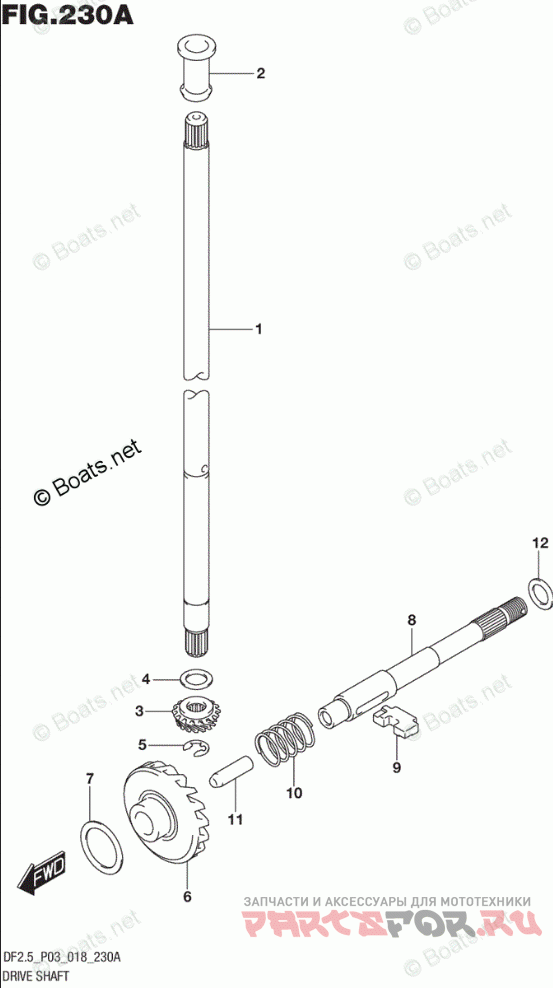

Drive Shaft

Suzuki Marine DF 2.5L

Drive Shaft

#

oem код

название

цена

1-2

SHAFT, DRIVE (L) *{W/TRANSOM(L)}*

SHAFT, DRIVE (L) *{W/TRANSOM(L)}*

1-1

SHAFT, DRIVE (S) *{W/TRANSOM(S)}*

SHAFT, DRIVE (S) *{W/TRANSOM(S)}*

2-1

BUSH, DRIVE SHAFT *{W/TRANSOM(S)}*

BUSH, DRIVE SHAFT *{W/TRANSOM(S)}*

2-2

BUSH, DRIVE SHAFT *{W/TRANSOM(L)}*

BUSH, DRIVE SHAFT *{W/TRANSOM(L)}*

3

PINION (NT:17)

PINION (NT:17)

4-2

SHIM (T:1.9) *{PINION ADJ}*

SHIM (T:1.9) *{PINION ADJ}*

4-3

SHIM (T:2.0) *{PINION ADJ}*

SHIM (T:2.0) *{PINION ADJ}*

4-4

SHIM (T:2.1) *{PINION ADJ}*

SHIM (T:2.1) *{PINION ADJ}*

4-5

SHIM (T:2.2) *{PINION ADJ}*

SHIM (T:2.2) *{PINION ADJ}*

4-1

SHIM (T:1.8) *{PINION ADJ}*

SHIM (T:1.8) *{PINION ADJ}*

5

E RING

E RING

6

GEAR, FORWARD (NT:28)

GEAR, FORWARD (NT:28)

7-4

SHIM (T:0.6) *{FWD GEAR BACKUP}*

SHIM (T:0.6) *{FWD GEAR BACKUP}*

7-2

SHIM (T:0.4) *{FWD GEAR BACKUP}*

SHIM (T:0.4) *{FWD GEAR BACKUP}*

7-3

SHIM (T:0.5) *{FWD GEAR BACKUP}*

SHIM (T:0.5) *{FWD GEAR BACKUP}*

7-1

SHIM (T:0.3) *{FWD GEAR BACKUP}*

SHIM (T:0.3) *{FWD GEAR BACKUP}*

8

SHAFT, PROPELLER

SHAFT, PROPELLER

9

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG

10

SPRING, RETURN

SPRING, RETURN

11

ROD, PUSH

ROD, PUSH

12-5

WASHER (12X20X2) *{PROP SFT REV THRUST}*

WASHER (12X20X2) *{PROP SFT REV THRUST}*

12-4

WASHER (12X20X1.9) *{PROP SFT REV THRUST}*

WASHER (12X20X1.9) *{PROP SFT REV THRUST}*

12-3

WASHER (12X20X1.8) *{PROP SFT REV THRUST}*

WASHER (12X20X1.8) *{PROP SFT REV THRUST}*

12-2

WASHER (12X20X1.7) *{PROP SFT REV THRUST}*

WASHER (12X20X1.7) *{PROP SFT REV THRUST}*

12-1

WASHER (12X20X1.6) *{PROP SFT REV THRUST}*

WASHER (12X20X1.6) *{PROP SFT REV THRUST}*
