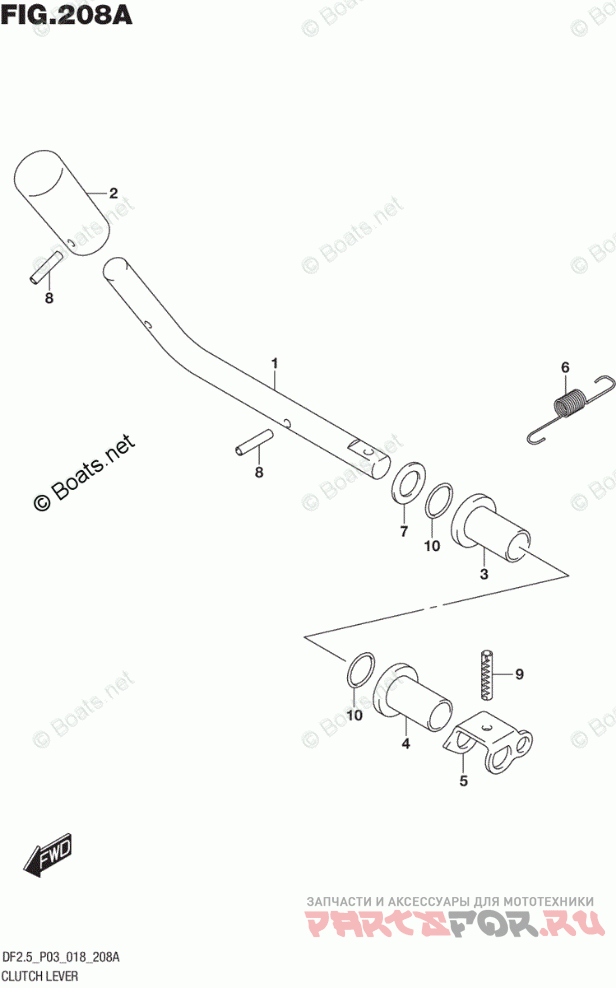

Clutch Lever
Suzuki Marine DF 2.5L
| # | oem код | название | цена |
|---|---|---|---|
1 | 21111-97J01 LEVER, CLUTCH | LEVER, CLUTCH | |
2 | 21112-97J00 KNOB, CLUTCH LEVER | KNOB, CLUTCH LEVER | |
3 | 21221-97J00 BUSH, CLUTCH SHAFT | BUSH, CLUTCH SHAFT | |
4 | 21222-97J00 BUSH, CLUTCH SHAFT NO.2 | BUSH, CLUTCH SHAFT NO.2 | |
5 | 23211-97J10 ARM, CLUTCH ROD | ARM, CLUTCH ROD | |
6 | 23213-97J00 SPRING, CLUTCH NOTCH | SPRING, CLUTCH NOTCH | |
7 | 09160-08145 WASHER (8X14X1.5) | WASHER (8X14X1.5) | |
8 | 09205-03012 SPRING PIN (3X16) | SPRING PIN (3X16) | |
9 | 09205-04002 SPRING PIN (4X20) | SPRING PIN (4X20) | |
10 | 09280-08005 O RING (D:1.7,ID:7.7) | O RING (D:1.7,ID:7.7) |
