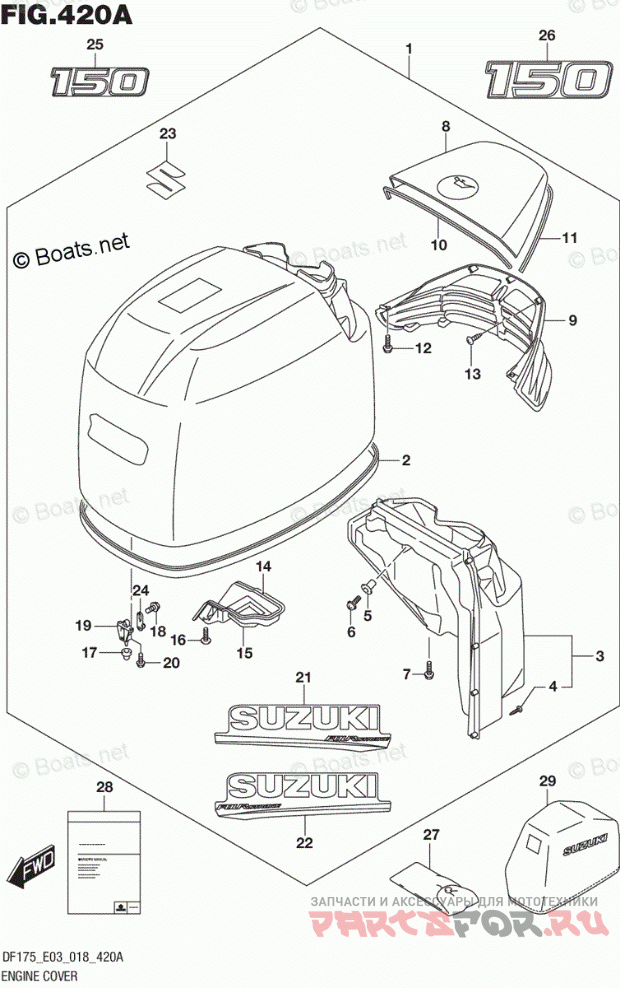

Engine Cover (DF150T)(DF150Z)

Suzuki Marine DF 150STL

Suzuki Marine
#oem кодцена
1-1
61403-96820-YAY
COVER SET, ENGINE (BLACK)
1-2
61403-96830-Y5S
COVER SET, ENGINE (WHITE)
2
61112-96J20
SEAL, ENGINE COVER
3
61430-96J10
GUIDE ASSY, AIR INTK INNER
4
03542-05169
SCREW
5
09159-05019
NUT
6
02142-05167
SCREW
7
01550-06167
BOLT
8-1
61431-96J21-YAY
HANDLE, TILT UP (BLACK)
8-2
61431-96J21-Y5S
HANDLE, TILT UP (WHITE)
9
61432-96J11
LOUVER, TILT UP HANDLE
10
61438-96J10
SEAL, TILT UP HANDLE NO.1
11
61439-96J10
SEAL, TILT UP HANDLE NO.2
12
01550-06167
BOLT
13
03542-05169
SCREW
14
61475-96J10
GUIDE, AIR VENT
15
61476-96J10
SEAL, AIR VENT
16
02142-06167
SCREW
17
09329-10022
CUSHION
18
01550-06127
BOLT
19
61621-93J01
BRACKET, FASTENER
20
01547-06167
BOLT
21-1
61443-96J50
STRIPE, ENGINE COVER STBD *{FOR YAY}*
21-2
61443-96J60
STRIPE, ENGINE COVER STBD *{FOR Y5S}*
22-1
61453-96J50
STRIPE, ENGINE COVER PORT *{FOR YAY}*
22-2
61453-96J60
STRIPE, ENGINE COVER PORT *{FOR Y5S}*
23
77811-54GC0-0PG
EMBLEM (S) (CHROME)
24
61610-93J00
FASTENER
25-2
61422-96J80
MARK, EMBLEM FRONT (150) *{FOR Y5S}*
25-1
61422-96J60
MARK, EMBLEM FRONT (150) *{FOR YAY}*
26-2
61435-96J90
MARK, EMBLEM REAR (150) *{FOR Y5S}*
26-1
61435-96J70
MARK, EMBLEM REAR (150) *{FOR YAY}*
27
09800-81841
TOOL SET
28-2
99011-96JA0-03B
MANUAL, OWNER'S
28-1
99011-96JA0-054
MANUAL, OWNER'S
29
68110-96J01
COVER, WEATHER *{OPT}*
30
SPECIAL-NOTE
DF150T E03 DF150Z E03
