Clamp Bracket (DF8AR P03) для лодочных моторов Suzuki Marine DF 8AL (2017)

Москва и регионы России

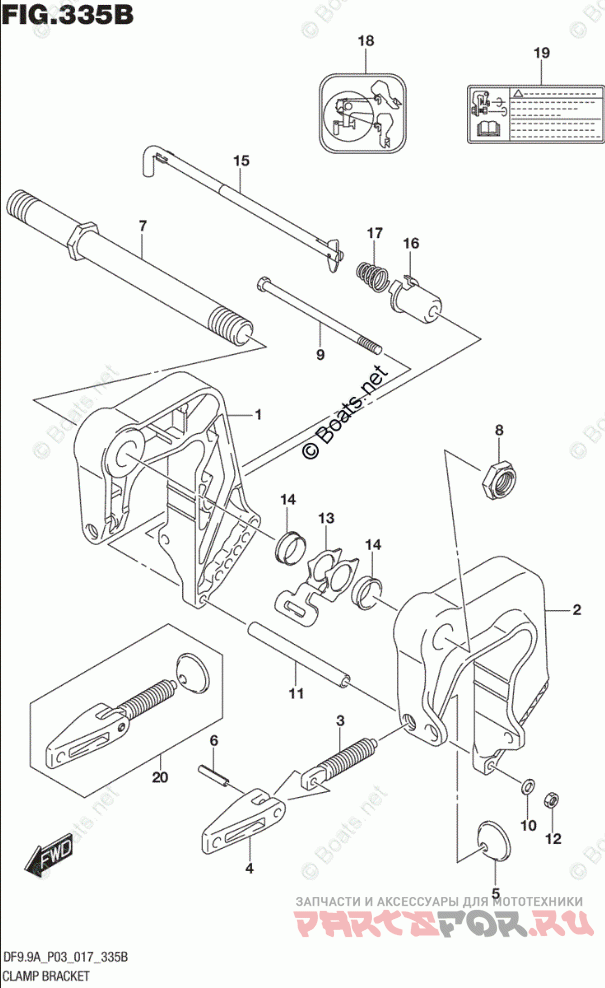

Clamp Bracket (DF8AR P03)

Suzuki Marine DF 8AL

Clamp Bracket (DF8AR P03)

#

oem код

название

цена

1

41111-94J20-YAY

BRACKET, CLAMP STBD (BLACK)

BRACKET, CLAMP STBD (BLACK)

2

41121-94J20-YAY

BRACKET, CLAMP PORT (BLACK)

BRACKET, CLAMP PORT (BLACK)

3

SCREW, CLAMP

SCREW, CLAMP

4

HANDLE, CLAMP

HANDLE, CLAMP

5

PLATE, CLAMP

PLATE, CLAMP

6

SPRING PIN (6X25)

SPRING PIN (6X25)

7

SHAFT, CLAMP BRACKET

SHAFT, CLAMP BRACKET

8

NUT

NUT

9

BOLT (6X140)

BOLT (6X140)

10

WASHER (6.5X13X1.0)

WASHER (6.5X13X1.0)

11

SPACER (6.5X10.5X104)

SPACER (6.5X10.5X104)

12

NUT, CLAMP BRKT LOWER (M6)

NUT, CLAMP BRKT LOWER (M6)

13

LEVER, RELEASE

LEVER, RELEASE

14

BUSH (22.6X27X8)

BUSH (22.6X27X8)

15

PIN, TILT LOCK

PIN, TILT LOCK

16

STOPPER, TILT LOCK PIN

STOPPER, TILT LOCK PIN

17

SPRING

SPRING

18

MARK, REVERSE LOCK

MARK, REVERSE LOCK

19

MARK, CLAMP BRACKET

MARK, CLAMP BRACKET

20

SCREW SET, CLAMP *{OPT}*

SCREW SET, CLAMP *{OPT}*
