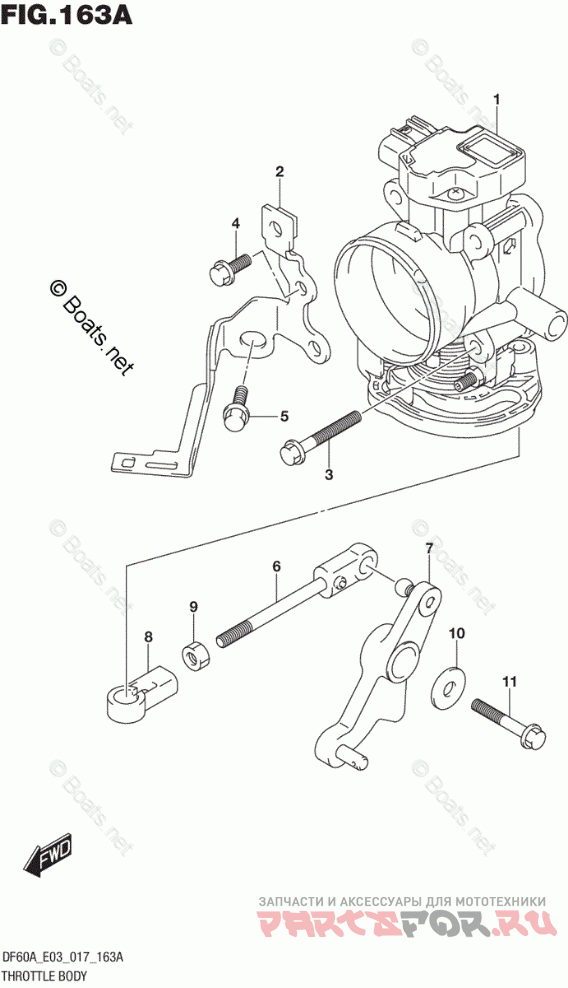

THROTTLE BODY
Suzuki Marine DF 60ATLW2
| # | oem код | название | цена |
|---|---|---|---|
1 | 13300-88L01 BODY ASSY, THROTTLE | BODY ASSY, THROTTLE | |
2 | 13315-88L00 BRACKET, THROTTLE BODY | BRACKET, THROTTLE BODY | |
3 | 01550-06457 BOLT | BOLT | |
4 | 01550-06167 BOLT | BOLT | |
5 | 01550-08207 BOLT | BOLT | |
6 | 13510-88L00 ROD, THROTTLE | ROD, THROTTLE | |
7 | 19120-88L01 LEVER, THROTTLE | LEVER, THROTTLE | |
8 | 19131-95502 CONNECTOR, THROTTLE ROD | CONNECTOR, THROTTLE ROD | |
9 | 09140-05005 NUT | NUT | |
10 | 09160-06047 WASHER (6.5X20X2) | WASHER (6.5X20X2) | |
11 | 01550-06407 BOLT | BOLT |
