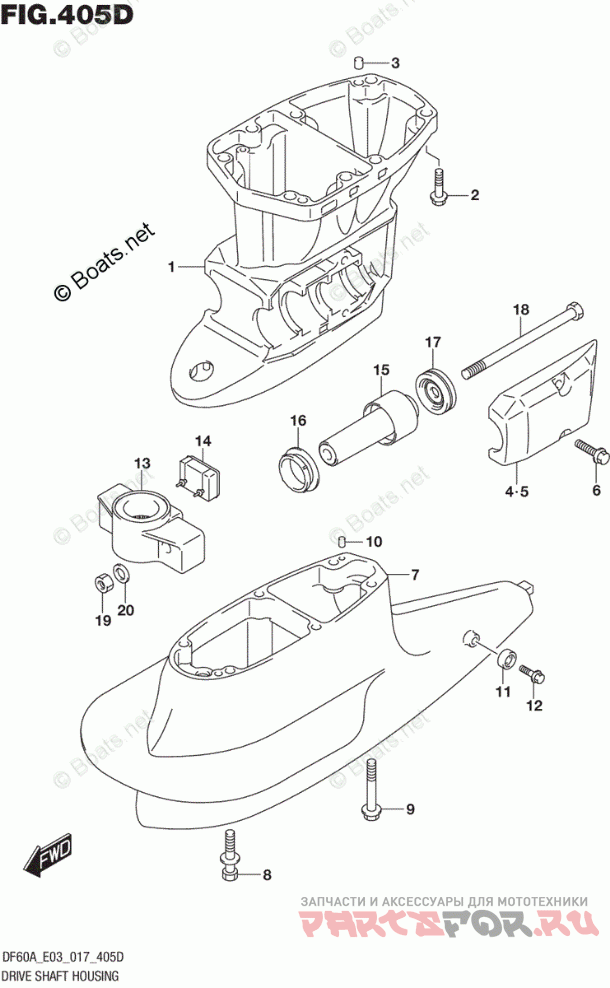

Drive Shaft Housing (DF50AVT E03)

Suzuki Marine DF 50AVTL2

Suzuki Marine
#oem кодцена
1
52111-88L20-YAY
HOUSING, DRIVE SHAFT (S) (BLACK)
2
09116-10176
BOLT (10X44)
3
09202-08006
PIN (8X12)
4
54221-88L20-YAY
COVER, LOWER MOUNT STBD (BLACK)
5
54231-88L10-YAY
COVER, LOWER MOUNT PORT (BLACK)
6
09116-10176
BOLT (10X44)
7
52131-88L11-YAY
CASE, EXTENSION (BLACK)
8
09116-08131
BOLT (8X45)
9
09116-10150
BOLT (10X55)
10
09202-06031
PIN (6X12)
11
55321-87J01
ANODE, PROTECTION
12
09103-06281
BOLT (6X14)
13
54211-87J30-YAY
BRACKET, LOWER MOUNT (BLACK)
14
54151-88L00
MOUNT, LOWER THRUST
15
54160-88L10
MOUNT, LOWER
16
54167-87L01
MOUNT, LOWER SIDE
17
54180-88L00
DAMPER, FWD STOPPER
18
54166-95J02
BOLT, LOWER MOUNT
19
09159-12014
NUT
20
54114-90J01
WASHER, LOWER MOUNT NUT (12.5X22X3)
