Clamp Bracket (DF50AVT E03) для лодочных моторов Suzuki Marine DF 50ATLW2 (2017)

Москва и регионы России

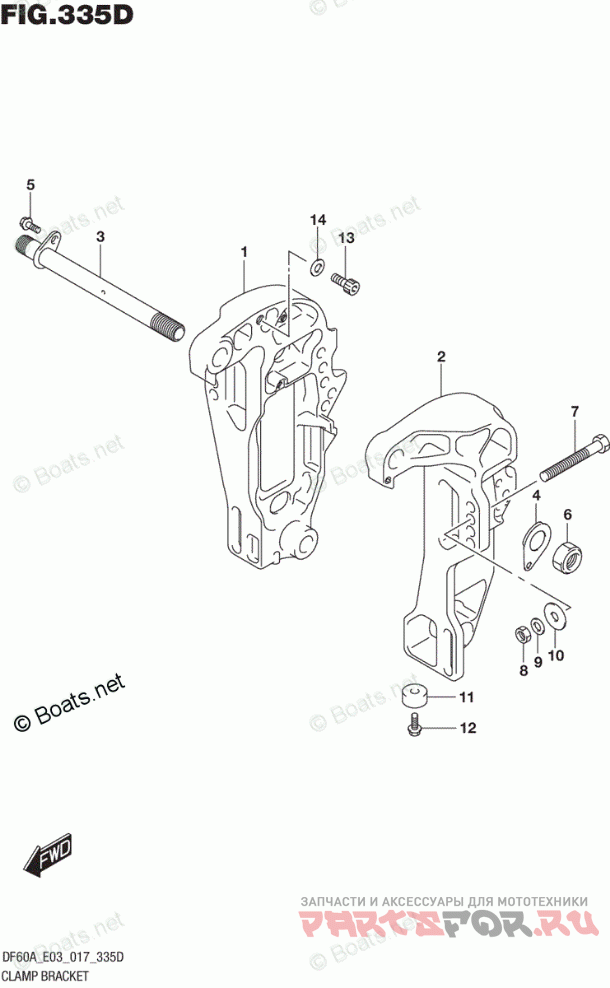

Clamp Bracket (DF50AVT E03)

Suzuki Marine DF 50ATLW2

Clamp Bracket (DF50AVT E03)

#

oem код

название

цена

1

41111-88L10-YAY

BRACKET, CLAMP STBD (BLACK)

BRACKET, CLAMP STBD (BLACK)

2

41121-88L01-YAY

BRACKET, CLAMP PORT (BLACK)

BRACKET, CLAMP PORT (BLACK)

3

SHAFT, CLAMP BRACKET

SHAFT, CLAMP BRACKET

4

WASHER, CLAMP BRACKET SHAFT

WASHER, CLAMP BRACKET SHAFT

5

BOLT (8X22)

BOLT (8X22)

6

NUT

NUT

7-2

BOLT (12X115) *{OPT}*

BOLT (12X115) *{OPT}*

7-1

BOLT (12X100)

BOLT (12X100)

8

NUT

NUT

9

WASHER

WASHER

10

WASHER (12.5X35X3.2)

WASHER (12.5X35X3.2)

11

ANODE, PROTECTION

ANODE, PROTECTION

12

BOLT (6X14)

BOLT (6X14)

13

BOLT (10X20)

BOLT (10X20)

14

WASHER (10.5X19X2)

WASHER (10.5X19X2)
