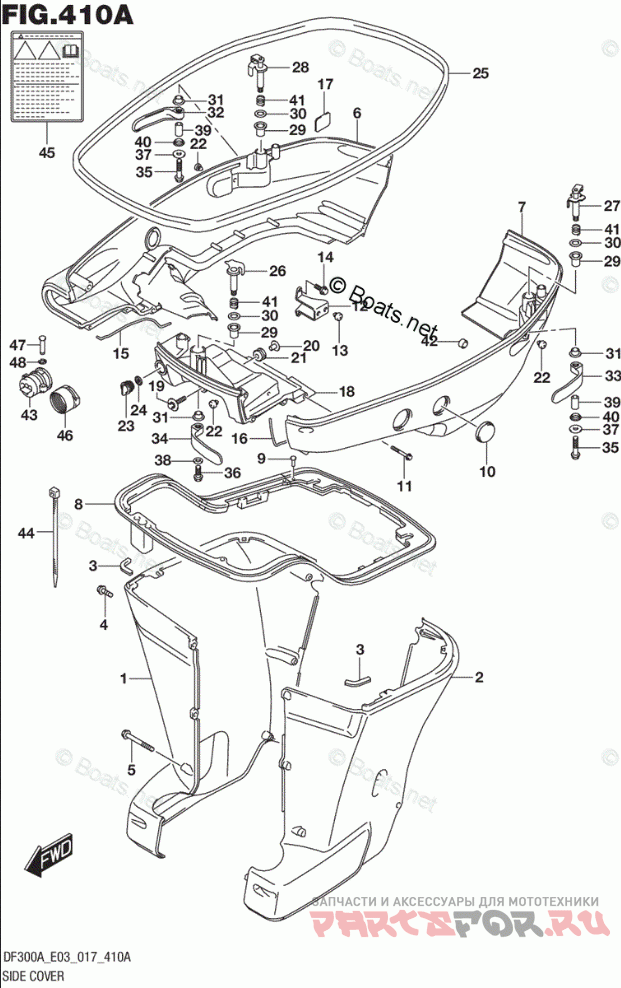

Side Cover (X,XX) (DF300A E03)

Suzuki Marine DF 300APL2

Side Cover (X,XX) (DF300A E03)

#

oem код

название

цена

1-2

61131-93J01-Y5S

COVER, OIL PAN STBD (WHITE)

COVER, OIL PAN STBD (WHITE)

1-1

61131-93J01-YAY

COVER, OIL PAN STBD (BLACK)

COVER, OIL PAN STBD (BLACK)

2-1

61141-93J01-YAY

COVER, OIL PAN PORT (BLACK)

COVER, OIL PAN PORT (BLACK)

2-2

61141-93J01-Y5S

COVER, OIL PAN PORT (WHITE)

COVER, OIL PAN PORT (WHITE)

3

CUSHION, OIL PAN COV UPPER

CUSHION, OIL PAN COV UPPER

4

SCREW (6X17)

SCREW (6X17)

5

SCREW (6X65)

SCREW (6X65)

6-1

61811-98J20-YAY

COVER, SIDE STBD (BLACK)

COVER, SIDE STBD (BLACK)

6-2

61811-98J20-Y5S

COVER, SIDE STBD (WHITE)

COVER, SIDE STBD (WHITE)

7-1

61821-98J10-YAY

COVER, SIDE PORT (BLACK)

COVER, SIDE PORT (BLACK)

7-2

61821-98J10-Y5S

COVER, SIDE PORT (WHITE)

COVER, SIDE PORT (WHITE)

8

SEAL, SIDE COVER

SEAL, SIDE COVER

9

09409-05302-5PK

CLIP (BLACK)

CLIP (BLACK)

10

PLUG, SIDE COVER

PLUG, SIDE COVER

11

SCREW (6X35)

SCREW (6X35)

12

HOLDER, SIDE COVER

HOLDER, SIDE COVER

13

CUSHION

CUSHION

14

BOLT

BOLT

15

SEAL, FRONT PANEL STBD

SEAL, FRONT PANEL STBD

16

SEAL, SIDE COVER

SEAL, SIDE COVER

17

PROTECTOR, SIDE COVER

PROTECTOR, SIDE COVER

18-1

61831-98J02-YAY

PANEL, FRONT (BLACK)

PANEL, FRONT (BLACK)

18-2

61831-98J02-Y5S

PANEL, FRONT (WHITE)

PANEL, FRONT (WHITE)

19

BOLT (8X38)

BOLT (8X38)

20

WASHER

WASHER

21

CUSHION

CUSHION

22

CUSHION

CUSHION

23

PLUG, WATER

PLUG, WATER

24

GASKET, WATER PLUG

GASKET, WATER PLUG

25

RUBBER, SIDE COVER

RUBBER, SIDE COVER

26

SHAFT, COVER HOOK (FRONT)

SHAFT, COVER HOOK (FRONT)

27

SHAFT, COVER HOOK (PORT)

SHAFT, COVER HOOK (PORT)

28

SHAFT, COVER HOOK (STBD)

SHAFT, COVER HOOK (STBD)

29

BUSH

BUSH

30

WASHER (17X30X3)

WASHER (17X30X3)

31

BUSH

BUSH

32-1

61633-98J10-YAY

LEVER, HOOK RR STBD (BLACK)

LEVER, HOOK RR STBD (BLACK)

32-2

61633-98J10-Y5S

LEVER, HOOK RR STBD (WHITE)

LEVER, HOOK RR STBD (WHITE)

33-2

61634-98J10-Y5S

LEVER, HOOK RR PORT (WHITE)

LEVER, HOOK RR PORT (WHITE)

33-1

61634-98J10-YAY

LEVER, HOOK RR PORT (BLACK)

LEVER, HOOK RR PORT (BLACK)

34-2

61645-98J00-Y5S

LEVER, HOOK FRONT (WHITE)

LEVER, HOOK FRONT (WHITE)

34-1

61645-98J00-YAY

LEVER, HOOK FRONT (BLACK)

LEVER, HOOK FRONT (BLACK)

35

BOLT, HOOK LEVER (8X45) (STBD / PORT)

BOLT, HOOK LEVER (8X45) (STBD / PORT)

36

BOLT, HOOK LEVER (8X25) (FRONT)

BOLT, HOOK LEVER (8X25) (FRONT)

37

WASHER (8.5X28X1.5)

WASHER (8.5X28X1.5)

38

WASHER (8.5X16X1.2)

WASHER (8.5X16X1.2)

39

SPACER

SPACER

40

BUSH

BUSH

41

SPRING, HOOK SHAFT

SPRING, HOOK SHAFT

42

CUSHION

CUSHION

43

GROMMET, REMOCON CABLE

GROMMET, REMOCON CABLE

44

CLAMP (L:250)

CLAMP (L:250)

45

LABEL, ENGINE COVER

LABEL, ENGINE COVER

46

ADAPTER, HOSE (RIGGING) *{OPT}*

ADAPTER, HOSE (RIGGING) *{OPT}*

47

PIN *{OPT}*

PIN *{OPT}*

48

E RING *{OPT}*

E RING *{OPT}*
