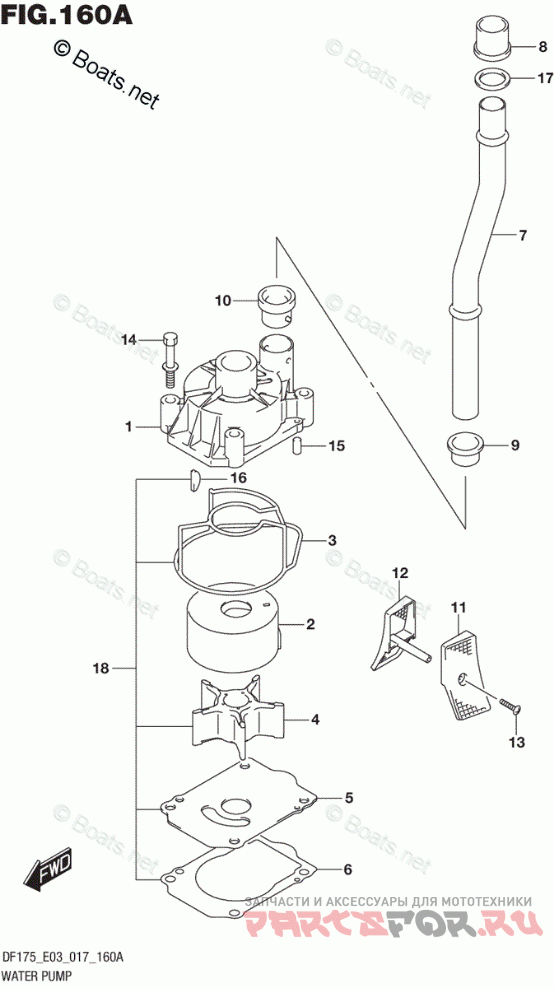

Water Pump (DF150T E03)

Suzuki Marine DF 150STX

Suzuki Marine
#oem кодцена
1
17411-96J01
Деталь CASE, WATER PUMP
2
17413-96J01
Деталь SLEEVE, PUMP CASE
3
17416-96J00
Деталь SEALING, PUMP CASE
4
17461-90J01
Деталь IMPELLER, WATER PUMP
5
17471-93J02
Деталь PANEL, PUMP CASE UNDER
6
17472-93J00
Деталь GASKET, PUMP CASE PANEL
7-2
17561-96J11
Деталь TUBE, WATER (X) *{W/TRANSOM(X)}*
7-1
17560-96J01
Деталь TUBE, WATER (L) *{W/TRANSOM(L)}*
8
17562-93J01
Деталь BUSH, WATER TUBE UPPER
9
17563-93J00
Деталь BUSH, WATER TUBE LOWER
10
17564-93J00
Деталь BUSH, WATER PUMP CASE
11-2
17631-93J30
Деталь FILTER, WATER PORT SIDE *{OPT}*
11-1
17631-93J20
Деталь FILTER, WATER PORT SIDE
12-1
17632-93J20
Деталь FILTER, WATER STBD SIDE
12-2
17632-93J30
Деталь FILTER, WATER STBD SIDE *{OPT}*
13-1
09132-04034
Деталь SCREW (4X18) *{W/TRANSOM(L)}*
13-2
09132-04034
Деталь SCREW (4X18) *{W/TRANSOM(X)}*
14
09116-08131
Деталь BOLT (8X45)
15
09202-06031
Деталь PIN (6X12)
16
09420-05009
Деталь KEY
17
09168-20002
Деталь GASKET (20.5X30X1.5) *{W/TRANSOM(X)}*
18
17400-96J02
Деталь WATER PUMP REPAIR KIT *{OPT}*
