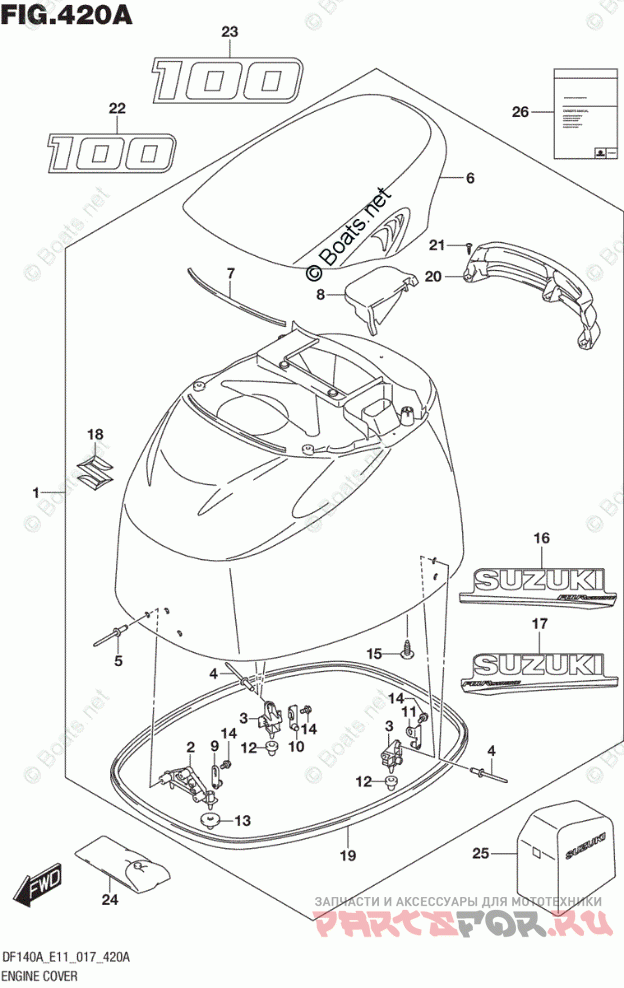

Engine Cover (DF100AT E11)

Suzuki Marine DF 100ATX

Suzuki Marine
#oem кодцена
1
61400-90880-YAY
COVER SET, ENGINE (BLACK)
2
61621-87D20
BRACKET, FASTENER FRONT
3
61644-90J20
BRACKET, FASTENER REAR
4
09229-04025
RIVET
5
09229-04025
RIVET
6
61431-92J11-YAY
HANDLE, TILT UP (BLACK)
7
61438-92J10
SEAL, TILT UP HANDLE
8
61439-92J10
SEAL, TILT UP HANDLE
9
61610-93J00
FASTENER
10
61680-90J01
FASTENER, REAR STBD
11
61690-90J01
FASTENER, REAR PORT
12
09329-10022
CUSHION
13
09329-10023
CUSHION
14
01550-06127
BOLT
15
03542-06169
SCREW
16
61443-88L20
STRIPE, ENGINE COVER STBD
17
61453-88L20
STRIPE, ENGINE COVER PORT
18
77811-63J00-0PG
EMBLEM, S (CHROME)
19
61112-92J00
RUBBER, SIDE COVER
20
61432-92J10
LOUVER, TILT UP HANDLE
21
03542-06169
SCREW
22
61422-90J40
MARK, EMBLEM FRONT (100)
23
61435-90JA0
MARK, EMBLEM REAR (100)
24
09800-81840
TOOL SET
25
68110-87L00
COVER, WEATHER *{OPT}*
26-2
99011-90J70-03B
MANUAL, OWNER'S
26-1
99011-90J70-054
MANUAL, OWNER'S
26-3
99011-90J70-059
MANUAL, OWNER'S
