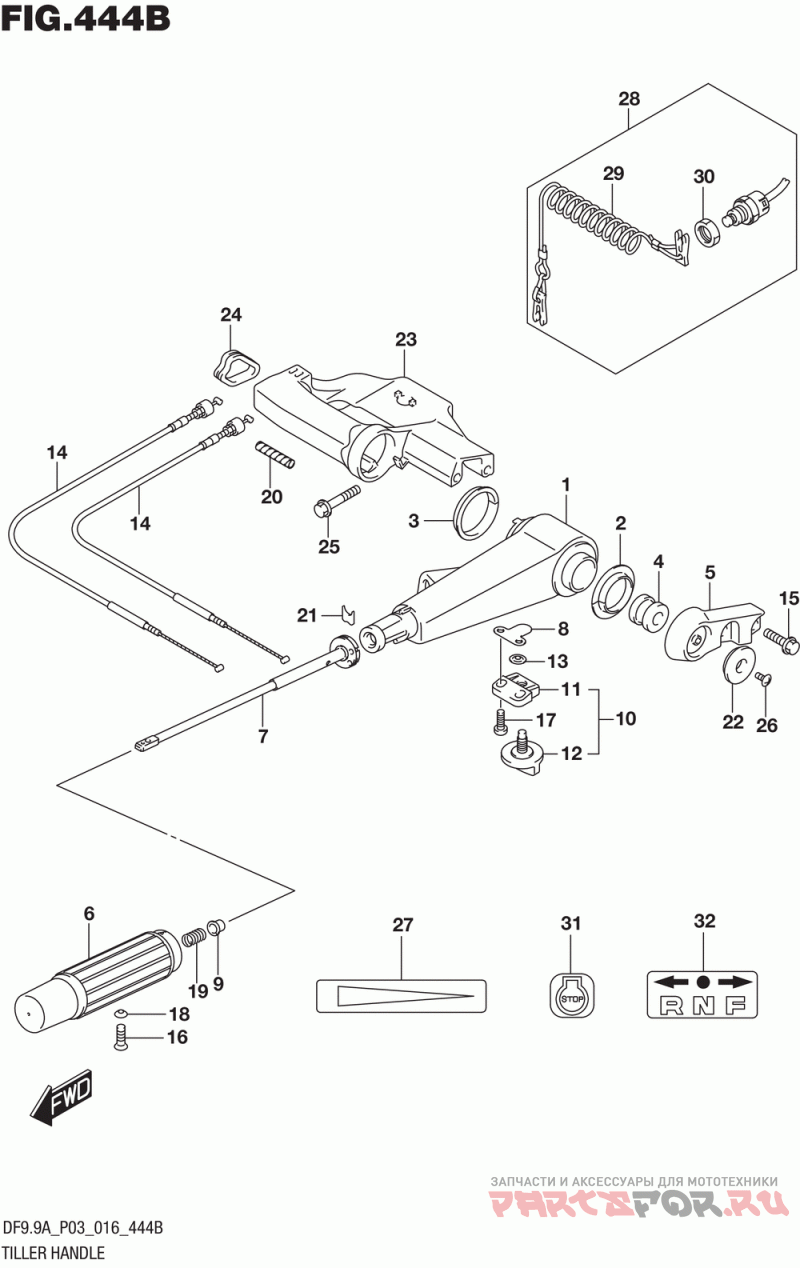

Tiller handle (df9.9a p03)

Suzuki Marine DF8A,8AR,9.9A,9.9AR

Tiller handle (df9.9a p03)

#

oem код

название

цена

1

63111-89L00-0EP

Handle, Tiller

Handle, Tiller

2

Bush, Tiller Han

Bush, Tiller Han

3

Bush, Tiller Han

Bush, Tiller Han

4

Rubber, Tiller H

Rubber, Tiller H

5

63121-99J00-0EP

Cover, Tiller Ha

Cover, Tiller Ha

6

Grip Comp, Handl

Grip Comp, Handl

7

Rod Comp, Handle

Rod Comp, Handle

8

Plate Thro Adju

Plate Thro Adju

9

Втулка

Втулка

10

Adjuster Set, Ha

Adjuster Set, Ha

11

Support, Handle

Support, Handle

12

Knob, Throttle A

Knob, Throttle A

13

Гайка

Гайка

14

Cable Assy, Thro

Cable Assy, Thro

15

Bolt, 8x30

Bolt, 8x30

16

Screw, M6x23

Screw, M6x23

17

Винт

Винт

18

Шайба

Шайба

19

Spring, Handle L

Spring, Handle L

20

Tube, Sw Lead (l:250->150)

Tube, Sw Lead (l:250->150)

21

Plate, Warning I

Plate, Warning I

22

Protector, Hand

Protector, Hand

23

63131-99J11-0EP

Bracket, Tiller

Bracket, Tiller

24

Grommet, Tiller

Grommet, Tiller

25

Bolt, 8 X 45

Bolt, 8 X 45

26

Screw L:10

Screw L:10

27

Mark, Handle Gri

Mark, Handle Gri

29

Пластина

Пластина

30

Гайка

Гайка

31

Label, Stop

Label, Stop

32

Mark, Clutch Shi

Mark, Clutch Shi
