Drive shaft housing (df50avt e03) для лодочных моторов Suzuki Marine DF40AT,50AT,AVT,60AT,AVT (2016)

Москва и регионы России

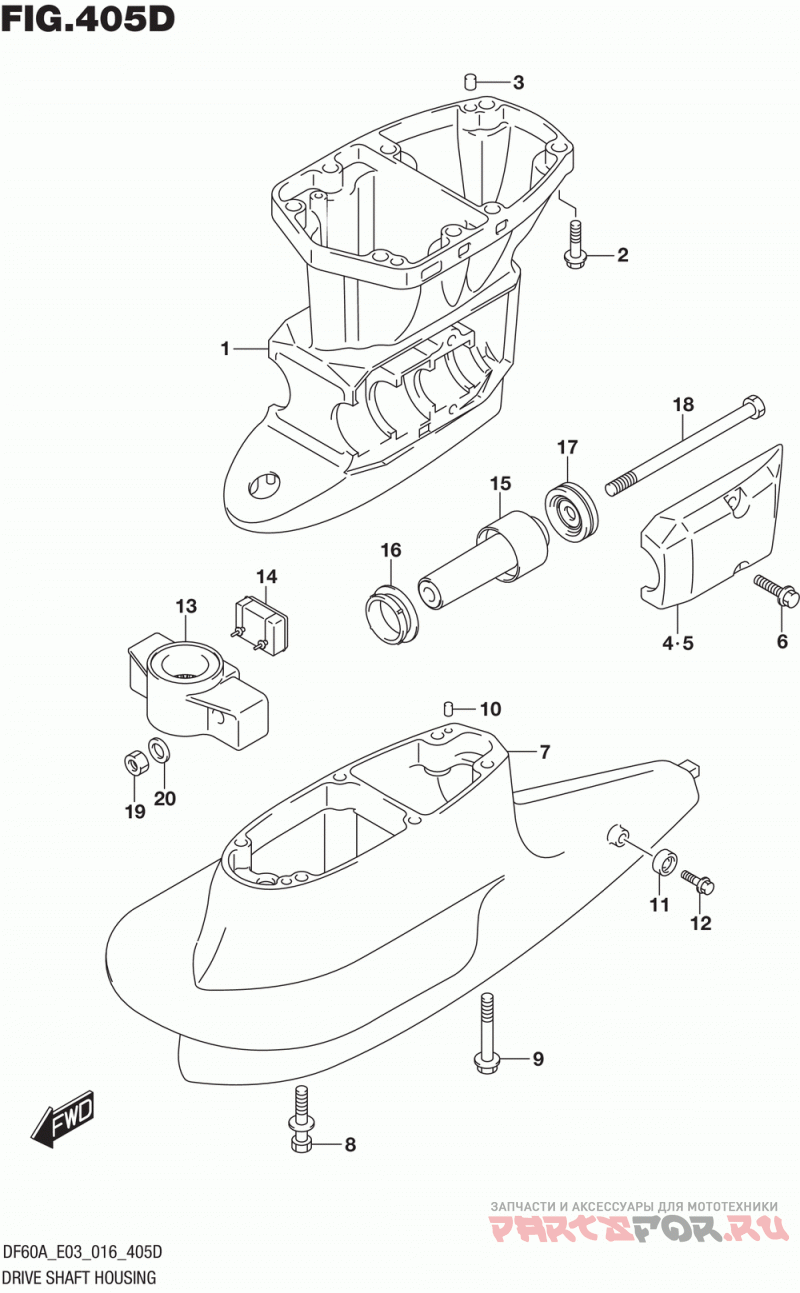

Drive shaft housing (df50avt e03)

Suzuki Marine DF40AT,50AT,AVT,60AT,AVT

Drive shaft housing (df50avt e03)

#

oem код

название

цена

1

52111-88L20-0EP

Housing, Drive S

Housing, Drive S

2

Bolt, 10x44

Bolt, 10x44

3

Штифт

Штифт

4

54221-88L20-0EP

Cover, Lwr Mount

Cover, Lwr Mount

5

54231-88L10-0EP

Cover, Lwr Mount

Cover, Lwr Mount

6

Bolt, 10x44

Bolt, 10x44

8

Bolt, Gearcase

Bolt, Gearcase

9

Bolt, 10x55

Bolt, 10x55

10

Штифт

Штифт

11

Anode, Protectio

Anode, Protectio

12

Bolt, Protection

Bolt, Protection

13

54211-87J30-0EP

Bracket, Lower M

Bracket, Lower M

14

Mount, Lower Thr

Mount, Lower Thr

15

Mount Comp, Low

Mount Comp, Low

16

Mount, Lower Sid

Mount, Lower Sid

17

Damper, Forward

Damper, Forward

18

Bolt, Lower Moun

Bolt, Lower Moun

19

Гайка

Гайка

20

Washer, Lwr Mt B

Washer, Lwr Mt B
