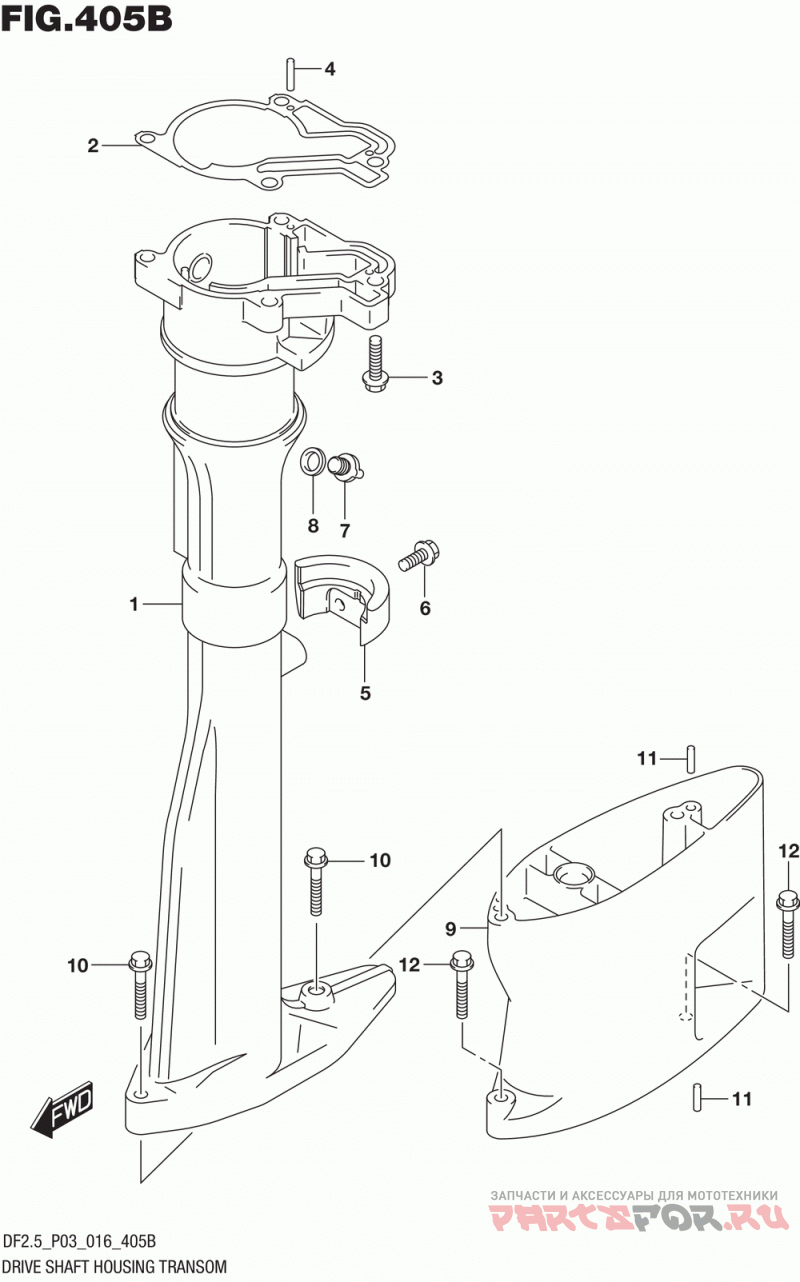

Drive shaft housing transom(l)
Suzuki Marine DF2.5 00252F
| # | oem код | название | цена |
|---|---|---|---|
1 | 52111-97J31-0EP Housing, Drive S | Housing, Drive S | |
2 | 52113-97J00 Gasket, Drive Sh | Gasket, Drive Sh | |
3 | 09116-06227 Болт М6х20 | Болт М6х20 | |
4 | 09205-03019 Штифт | Штифт | |
6 | 09116-06227 Болт М6х20 | Болт М6х20 | |
7 | 61155-97J00 Union, Water Ins | Union, Water Ins | |
8 | 59178-97J00 Gasket, Drain Pl | Gasket, Drain Pl | |
9 | 52131-97J00-0EP Case, Extension( | Case, Extension( | |
10 | 09116-06234 Bolt, 6 X 35 | Bolt, 6 X 35 | |
11 | 09202-04008 Hsg Bush Nock P | Hsg Bush Nock P | |
12 | 09116-06234 Bolt, 6 X 35 | Bolt, 6 X 35 |
