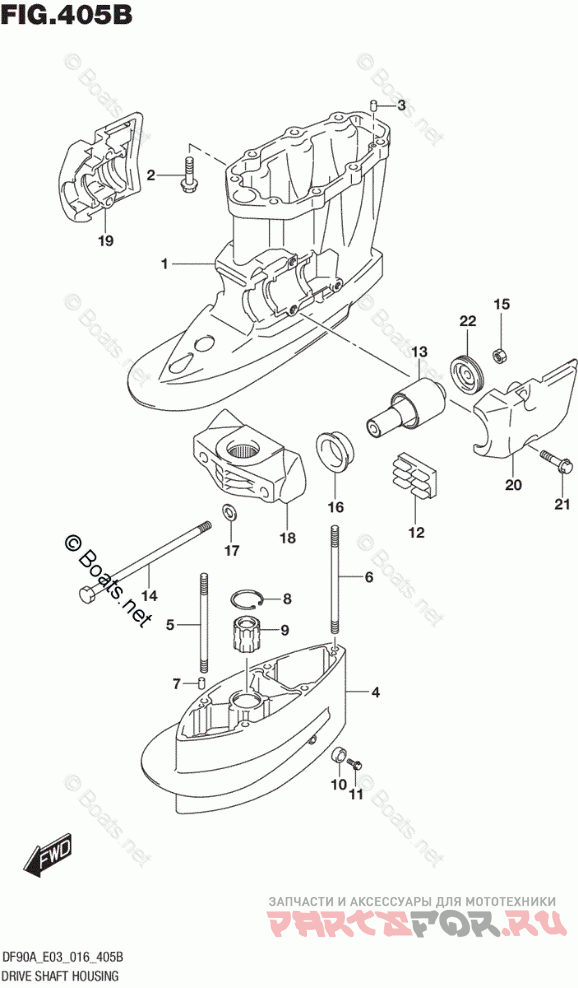

Drive Shaft Housing (DF80A E03)

Suzuki Marine DF 80ATL

Suzuki Marine
#oem кодцена
1
52111-87L00-0EP
HOUSING, DRIVE SHAFT (BLACK)
2
09116-10176
BOLT (10X44)
3
09202-08006
PIN (8X12)
4
52131-87L00-0EP
CASE, EXTENSION (BLACK) *{W/TRANSOM(X)}*
5
09108-10115
STUD BOLT *{W/TRANSOM(X)}*
6
09108-10157
STUD BOLT *{W/TRANSOM(X)}*
7
09202-08006
PIN (8X12) *{W/TRANSOM(X)}*
8
09381-40005
CIRCLIP *{W/TRANSOM(X)}*
9
57130-87E02
BUSH, DRIVE SHAFT *{W/TRANSOM(X)}*
10
55321-87J01
ANODE, PROTECTION *{W/TRANSOM(X)}*
11
09103-06281
BOLT (6X14) *{W/TRANSOM(X)}*
12
54151-87L00
MOUNT, LOWER THRUST
13
54160-87L10
MOUNT, LOWER
14
54166-95J02
BOLT, LOWER MOUNT
15
09159-12014
NUT
16
54167-87L10
MOUNT, FWD LOWER SIDE
17
54114-90J01
WASHER, LOWER MOUNT BOLT
18
54211-90J01-0EP
BRACKET, LOWER MOUNT (BLACK)
19
54221-87L00-0EP
COVER, LOWER MOUNT STBD (BLACK)
20
54231-87L00-0EP
COVER, LOWER MOUNT PORT (BLACK)
21
09116-10176
BOLT (10X44)
22
54180-88L00
DAMPER, FWD STOPPER
