Swivel bracket (df9.9a p03) для лодочных моторов Suzuki Marine DF8A 9.9A (2015)

Москва и регионы России

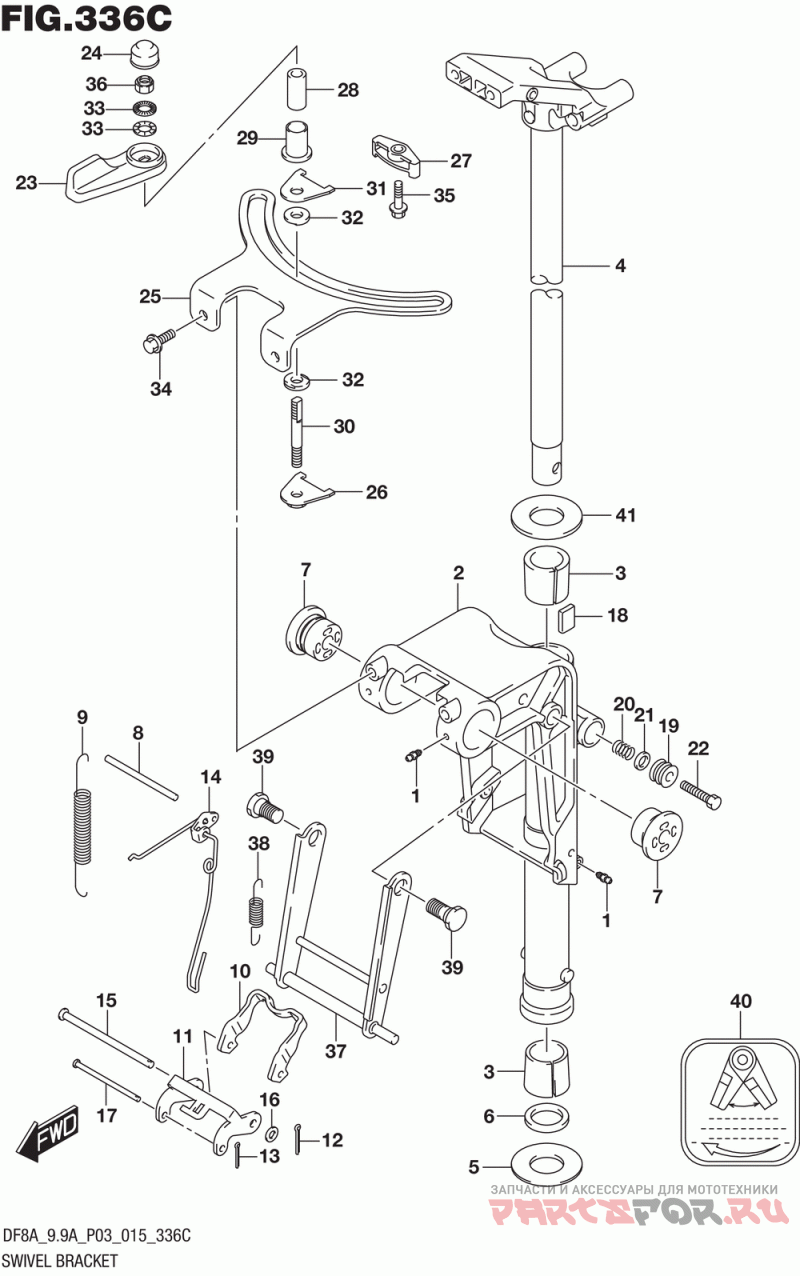

Swivel bracket (df9.9a p03)

Suzuki Marine DF8A 9.9A

Swivel bracket (df9.9a p03)

#

oem код

название

цена

1

Ниппель

Ниппель

3

Bush, Steering

Bush, Steering

4-1

43750-99J60-0EP

Brckt, Steering( (w/transom(s))

Brckt, Steering( (w/transom(s))

4-2

43750-99J70-0EP

Bracket, Steerin (w/transom(l))

Bracket, Steerin (w/transom(l))

5

Washer, 27.5x47x

Washer, 27.5x47x

6

Seal, Oil, 26x39x

Seal, Oil, 26x39x

7

Bush, Swivel Bra

Bush, Swivel Bra

8

Pin, Release Arm

Pin, Release Arm

10

Arm, Reverse Loc

Arm, Reverse Loc

11

Link, Rev Lock A

Link, Rev Lock A

12

Штифт

Штифт

13

Pin, Rev Lock Ar

Pin, Rev Lock Ar

14

Link, Release

Link, Release

15

Pin (sus)

Pin (sus)

16

Шайба

Шайба

17

Штифт

Штифт

18

Plate, Steering

Plate, Steering

19

Cover Adjust

Cover Adjust

20

Spring, Steering

Spring, Steering

21

Шайба

Шайба

22

Болт

Болт

23

Lever, Strg Adj(

Lever, Strg Adj(

24

Cover, Strg, Adj

Cover, Strg, Adj

25

Plate, Strg Adj

Plate, Strg Adj

26

Plate, Comp, Strg

Plate, Comp, Strg

27

Holder, Strg Adj

Holder, Strg Adj

28

Spacer, Strg Adj

Spacer, Strg Adj

29

Bush, Strg Adj

Bush, Strg Adj

30

Shaft, Strg Adj

Shaft, Strg Adj

31

Plate, Strg Adju

Plate, Strg Adju

32

Шайба

Шайба

33

Washer, Steering

Washer, Steering

34

Болт 6x15

Болт 6x15

35

Bolt, 6 X 25

Bolt, 6 X 25

36

Гайка

Гайка

37

Arm, Shallow Dri

Arm, Shallow Dri

38

Spring, Shallow

Spring, Shallow

39

Bolr, 10x20.4

Bolr, 10x20.4

40

Mark, Steering A

Mark, Steering A

41

Washer, 27.5x47x

Washer, 27.5x47x
