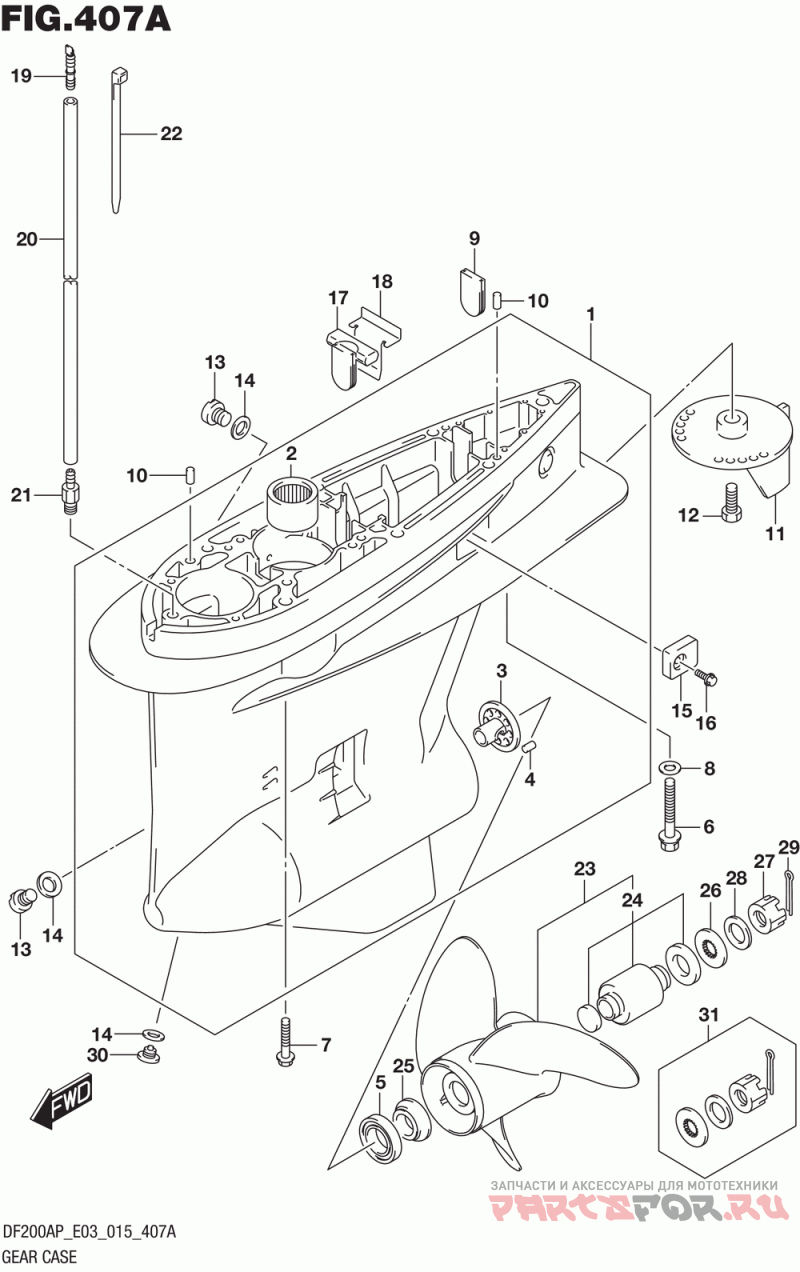

Редуктор

Suzuki Marine DF200AP

Suzuki Marine
#oem кодцена
1-1
55110-96L00-0EP
Case, Gear (bla
1-2
55110-96L00-Y5S
Case, Gear(whit
2
09263-32017
Bearing, Pinion
3
56145-93J00
Housing, Shift C
4
04221-08129
Pin 8x12
5
09265-65001
Bearing(65x100x (fwd Thrust)
6
09100-12052
Bolt L:70(sus)
7
09116-10150
Bolt, 10x55
8
09160-12066
Шайба
9
17566-87D11
Уплотнитель резиновый
10
09202-08006
Штифт
11-1
55125-98J00-0EP
Tab, Trim
11-2
55125-98J00-Y5S
Tab, Trim (white
12
09116-08137
Bolt, 8x22
13
55128-93J10
Штепсель, Дренажный
14
09168-10034
Gasket, Drain Pl
15
55321-93J01
Anode, Protectio
16
09116-06236
Bolt, 6 X 16
17
55332-87D11
Rubber, Exhaust
18
55333-87D10
Plate, Exhaust S
19
55127-87D00
Union, Speedomet
20
09355-40805-600
Hose (l:600->50)
21
09362-09008
Ниппель
22
09407-10404
Зажим
23-2
990C0-0080L-20P
Sspropcrv63x16x (optw/counter Rotation)
23-3
990C0-0080L-215
Sspropcrv63x16x (optw/counter Rotation)
23-8
58300-93JA0
4b15.25d20p Ss (optw/counter Rotation)
23-9
58300-93JB0
4b15.25d22p Ss (optw/counter Rotation)
23-10
58300-93JC0
4b15.25d24p Ss (opt)
23-11
58300-93JD0
4b15.25d26p Ss (opt)
23-14
990C0-0083L-21P
Ssprpcr 3x15x21 (opt)
23-15
990C0-0083L-23P
Ssprpcr 3x14.75 (opt)
23-19
990C0-00800-185
Ssprop Dfv63x16 (opt)
23-20
990C0-00800-20P
Ssprop Dfv63x16 (opt)
23-21
990C0-00800-215
Ssprop Dfv63x16 (opt)
23-25
990C0-00800-275
Ssprop Dfv63x16 (opt)
23-28
990C0-00830-19P
Ssprop 3x15.25x (opt)
23-31
990C0-00830-25P
Ssprop 3x14.5x2 (opt)
23-34
58300-93J10
4b15.25d20p Ss (opt)
23-35
58300-93J20
4b15.25d22p Ss (opt)
23-36
58300-93J30
4b15.25d24p Ss (opt)
23-37
58300-93J40
4b15.25d26p Ss (opt)
24
58105-93J10
Bush Set, Prop
25
57632-93L01
Stopper, Prop Bu
26
57633-87D30
Spacer, Nut(t:6.
27
09141-18005
Nut 18mm
28
09160-18028
Шайба
29
09204-03003
Cotter Pin, Prop
30
55128-93L00
Штепсель, Дренажный
31
57630-92E00
Prop Hdwr V-6 M (opt)
32
25700-93J00
Lu Sealkit Df V (optnot Illustrated)
