Engine cover (df140az e03) для лодочных моторов Suzuki Marine DF100A 115A 140A ,AT,AZ,AST (2015)

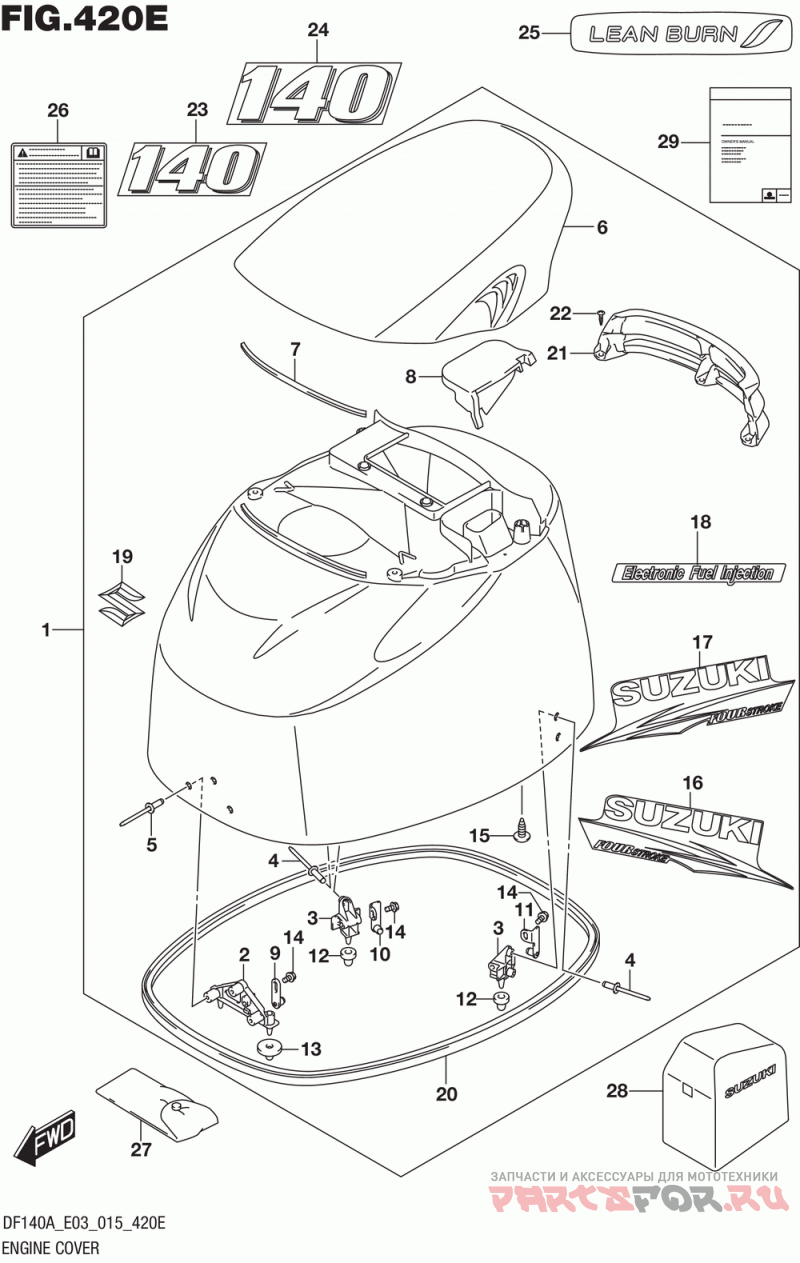

Engine cover (df140az e03)

Suzuki Marine DF100A 115A 140A ,AT,AZ,AST

oem код

название

цена

1-1

61400-90852-0EP

Cover Set, Engin

1-2

Cover Set, Engin

Bracket, Fastene

Bracket, Fastene

заклёпка

6-1

61431-92J11-0EP

Handle, Tilt Up

6-2

Handle, Tilt Up

Seal, Tilt Up Ha

Seal, Tilt Up Ha

Fastener Comp

Fastener Comp, R

Fastener Comp, R

Подушка

Подушка

Болт

Винт

16-1

61443-87L20

Stripe, Engine C (for 0ep)

16-2

61443-87L30

Stripe, Eng Cvr (for Y5s)

17-1

61453-87L20

Stripe, Engine C (for 0ep)

17-2

61453-87L30

Stripe, Eng Cvr (for Y5s)

18-1

61446-87L12

Decal, Efi (for 0ep)

18-2

61446-87L20

Decal, Efi (whit (for Y5s)

Emblem, Mark S

Rubber, Side Cov

Louver, Tilt Up

Винт

23-1

61422-92J12

Mark, Emblem Fro (for 0ep)

23-2

61435-92J30

Mark, Emblem (14 (for Y5s)

24-1

61435-92J22

Mark, Emblem Rea (for 0ep)

24-2

61435-92J30

Mark, Emblem (14 (for Y5s)

Decal, Lean Burn

Label, Engine Co

Комплект инструмента

Cover, Weather (opt)

29-2

99011-90J50-03B

O/m Df140 2015
