Engine Cover (DF60A E03) для лодочных моторов Suzuki Marine DF 60ATL (2015)

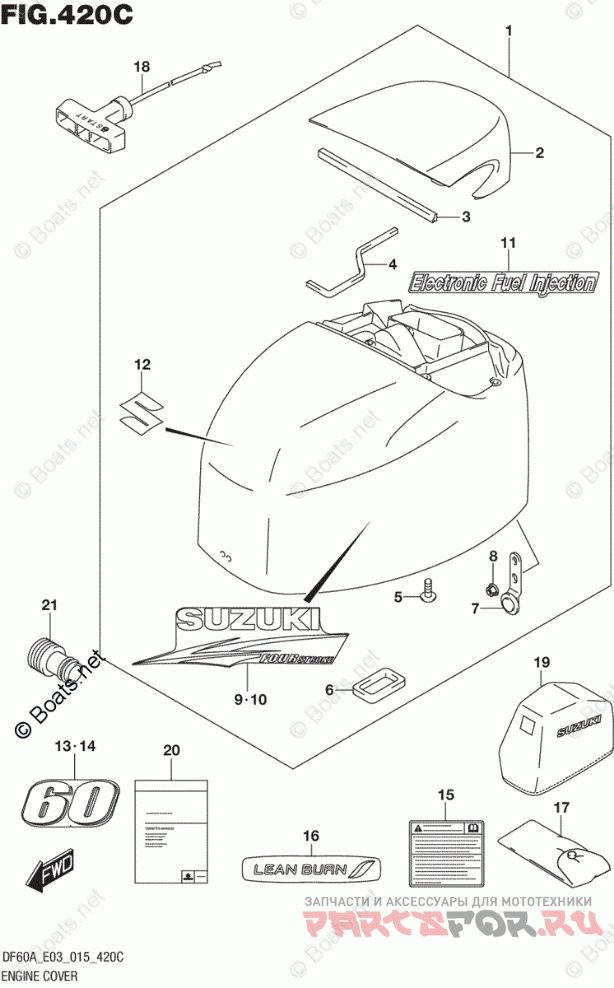

Engine Cover (DF60A E03)

Suzuki Marine DF 60ATL

oem код

название

цена

1-2

61400-88811-Y5S

COVER SET, ENGINE (WHITE)

1-1

61400-88805-0EP

COVER SET, ENGINE (BLACK)

2-2

61431-88L10-Y5S

HANDLE, TILT UP (WHITE)

2-1

61431-88L10-0EP

HANDLE, TILT UP (BLACK)

61438-88L00

SEAL, TILT UP HANDLE NO.1

61439-88L00

SEAL, TILT UP HANDLE NO.2

SCREW

SEAL, AIR VENT

FASTENER

NUT

9-2

61443-88L10

STRIPE, ENGINE COVER STBD *{FOR Y5S}*

9-1

61443-88L02

STRIPE, ENGINE COVER STBD *{FOR 0EP}*

10-2

61453-88L10

STRIPE, ENGINE COVER PORT *{FOR Y5S}*

10-1

61453-88L02

STRIPE, ENGINE COVER PORT *{FOR 0EP}*

11-1

61446-87L12

DECAL, EFI *{FOR 0EP}*

11-2

61446-87L20

DECAL, EFI *{FOR Y5S}*

68111-18G20

EMBLEM (S)

13-2

61435-88L50

MARK, EMBLEM FRONT (60) *{FOR Y5S}*

13-1

61435-88L22

MARK, EMBLEM FRONT (60) *{FOR 0EP}*

14-2

61435-88L50

MARK, EMBLEM REAR (60) *{FOR Y5S}*

14-1

61435-88L22

MARK, EMBLEM REAR (60) *{FOR 0EP}*

LABEL, ENGINE COVER

DECAL, LEAN BURN

TOOL ASSY

KNOB ASSY, STARTER

COVER, WEATHER *{OPT}*

20-2

99011-88L40-03B

MANUAL, OWNER'S

20-1

99011-88L40-054

MANUAL, OWNER'S

17917-87L00

CONNECTOR, FLUSH WATER
