Drive Shaft для лодочных моторов Suzuki Marine DF 2.5L (2015)

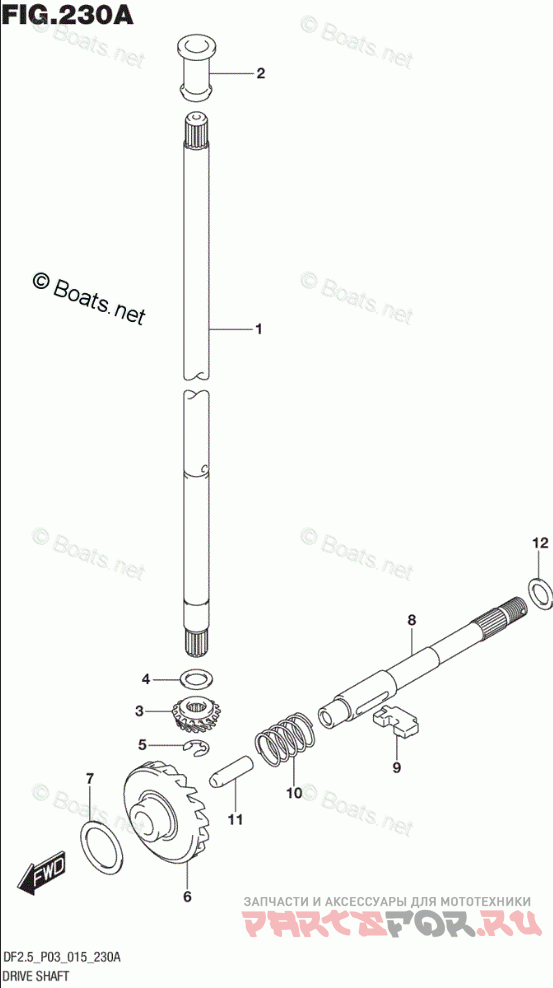

Drive Shaft

Suzuki Marine DF 2.5L

oem код

название

цена

1-1

57111-97J11

SHAFT, DRIVE (S) *{W/TRANSOM(S)}*

1-2

57111-97J20

SHAFT, DRIVE (L) *{W/TRANSOM(L)}*

57130-91J00

BUSH, DRIVE SHAFT

57311-97JM0

PINION (NT:17)

4-1

09181-10021

SHIM (T:1.8) *{PINION ADJ}*

4-2

09181-10022

SHIM (T:1.9)

4-3

09181-10023

SHIM (T:2.0)

4-4

09181-10024

SHIM (T:2.1)

4-5

09181-10025

SHIM (T:2.2)

08332-1106A

E RING

57510-97JM0

GEAR, FORWARD (NT:28)

7-4

09181-17025

SHIM (T:0.6)

7-2

09181-17023

SHIM (T:0.4)

7-3

09181-17024

SHIM (T:0.5)

7-1

09181-17022

SHIM (T:0.3) *{FWD GEAR BACKUP}*

SHAFT, PROPELLER

SHIFTER, CLUTCH DOG

SPRING, RETURN

ROD, PUSH

12-5

09181-12021

WASHER (12X20X2)

12-4

09181-12020

WASHER (12X20X1.9)

12-3

09181-12019

WASHER (12X20X1.8)

12-2

09181-12018

WASHER (12X20X1.7)

12-1

09181-12017

WASHER (12X20X1.6) *{PROP SFT REV THRUST}*
