Swivel bracket (df50avt e03) для лодочных моторов Suzuki Marine DF40A 50A 60A 410001 (2014)

Москва и регионы России

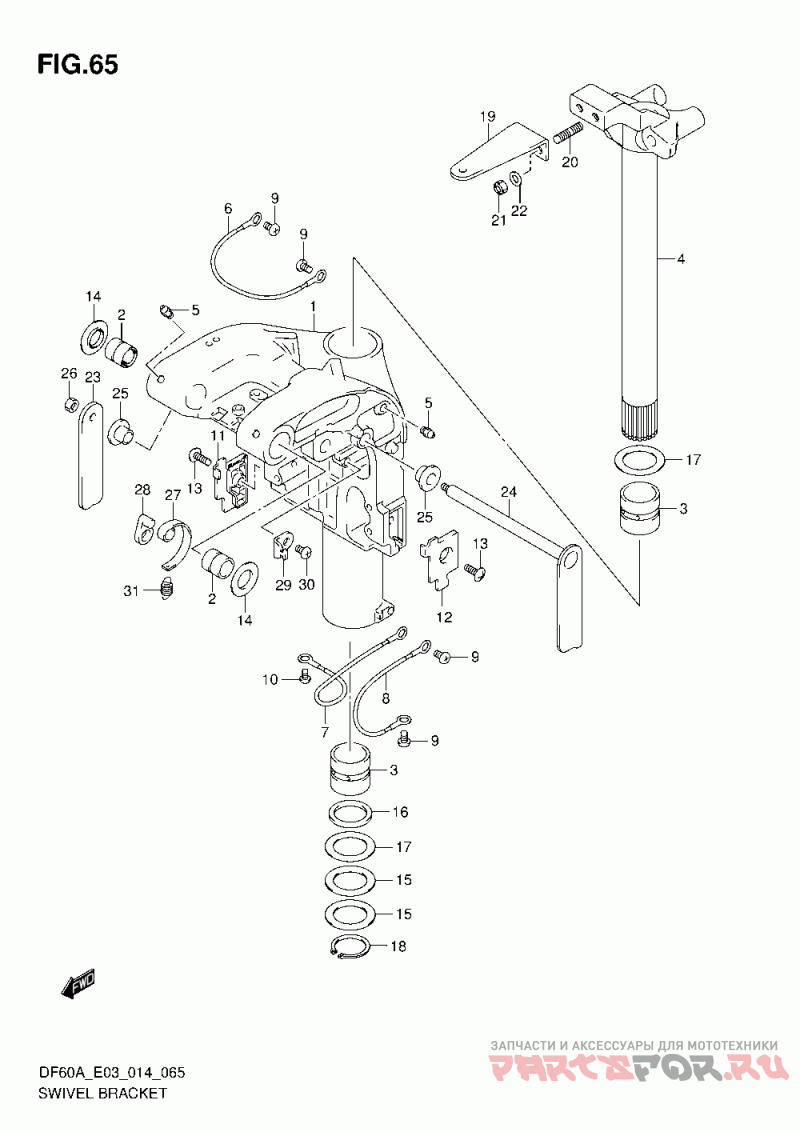

Swivel bracket (df50avt e03)

Suzuki Marine DF40A 50A 60A 410001

Swivel bracket (df50avt e03)

#

oem код

название

цена

1

43111-88L50-0EP

Bracket, Swivel

Bracket, Swivel

2

Bush, Swivel Bra

Bush, Swivel Bra

3

Bush, Steering

Bush, Steering

4

43750-88L31-0EP

Bracket, Steerin

Bracket, Steerin

5

Ниппель

Ниппель

6

Lead, Clamp To S

Lead, Clamp To S

7

Lead, Swivel To

Lead, Swivel To

9

Screw 6x10 (sus

Screw 6x10 (sus

10

Screw 5x8

Screw 5x8

11

Plate, Swivel Br

Plate, Swivel Br

12

Plate, Swivel Br

Plate, Swivel Br

13

Screw, Harness G

Screw, Harness G

14

Washer, Swivel T

Washer, Swivel T

15

Шайба

Шайба

16

Oil Seal 39x51x

Oil Seal 39x51x

17

Шайба

Шайба

18

Пружинное стопорное кольцо

Пружинное стопорное кольцо

19

43755-88L00-0EP

Attachment, Stee

Attachment, Stee

20

Шпилька

Шпилька

21

Гайка

Гайка

22

Washer, 10.5x19x

Washer, 10.5x19x

23

41221-88L00-0EP

Lever, Tilt Lock

Lever, Tilt Lock

24

41280-88L10-0EP

Lever, Tilt Lock

Lever, Tilt Lock

25

Bush, Tilt Lock

Bush, Tilt Lock

26

Гайка

Гайка

27

Link, Tilt Lock

Link, Tilt Lock

28

Arm, Tilt Lock L

Arm, Tilt Lock L

29

Bracket, Spring

Bracket, Spring

30

Screw 6x10 (sus

Screw 6x10 (sus

31

Spring, Tilt Loc

Spring, Tilt Loc
