Gear case (df60avt e03) для лодочных моторов Suzuki Marine DF40A 50A 60A 410001 (2014)

Москва и регионы России

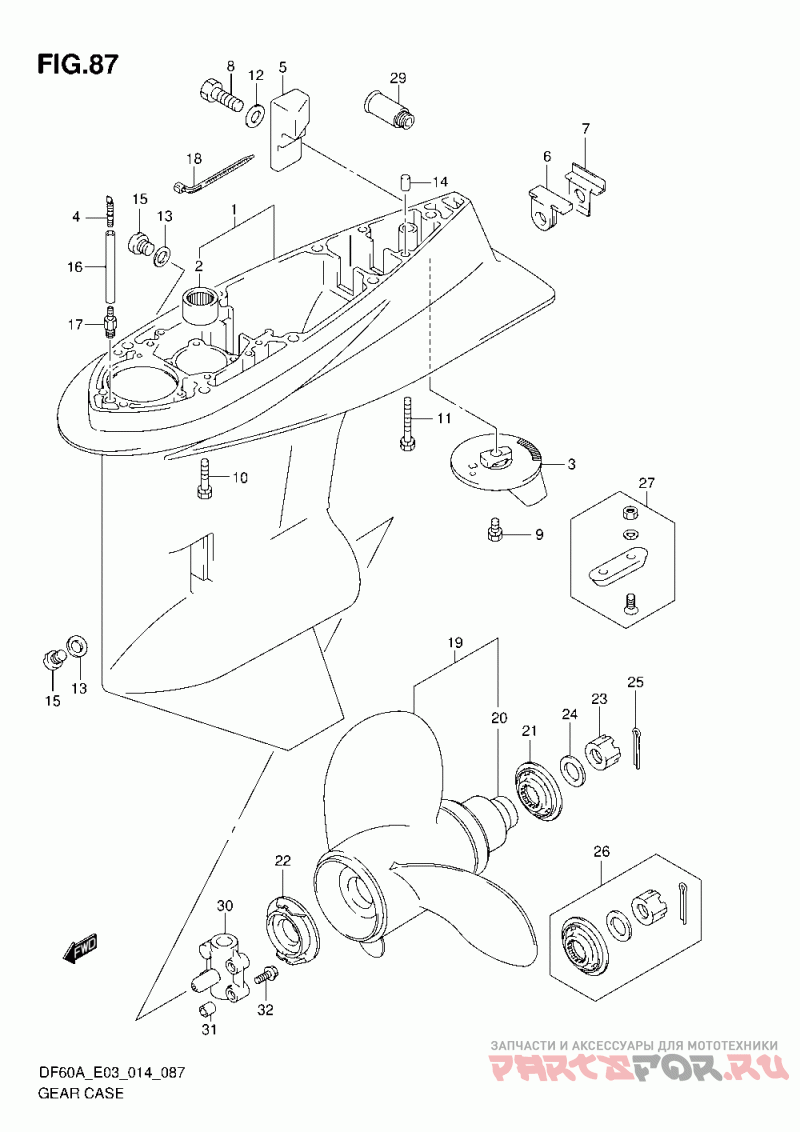

Gear case (df60avt e03)

Suzuki Marine DF40A 50A 60A 410001

Gear case (df60avt e03)

#

oem код

название

цена

1

55110-90J15-0EP

Case Comp, Gear

Case Comp, Gear

2

Rn 28.5x38x32 B

Rn 28.5x38x32 B

3

Tab, Trim

Tab, Trim

4

Union, Speedomet

Union, Speedomet

5

Anode, Gear Case

Anode, Gear Case

6

Rubber, Exhaust

Rubber, Exhaust

7

Plate, Exhaust S

Plate, Exhaust S

8

Bolt 6x12

Bolt 6x12

9

Bolt, 8x22

Bolt, 8x22

10

Bolt, 10x55

Bolt, 10x55

11

Болт

Болт

12

Шайба

Шайба

13

Gasket, Drain P (0010 Per Pack)

Gasket, Drain P (0010 Per Pack)

14

Штифт

Штифт

15

Plug, Drain, 10x7

Plug, Drain, 10x7

16

09355-40805-600

Hose (l:600->70)

Hose (l:600->70)

17

Ниппель

Ниппель

18

Зажим

Зажим

20

Bushing, Propel

Bushing, Propel

21

Spacer, Propelle

Spacer, Propelle

22

Stopper, Propell

Stopper, Propell

23

Nut 18mm

Nut 18mm

24

Шайба

Шайба

25

Cotter Pin, Prop

Cotter Pin, Prop

26

Prphrdw75-140 V (opt)

Prphrdw75-140 V (opt)

27

Zinc Assy Prote (opt)

Zinc Assy Prote (opt)

28

L.u. Sealkit Df (optnot Illustrated)

L.u. Sealkit Df (optnot Illustrated)

29

Flush Attachmen (opt)

Flush Attachmen (opt)

30

Housing, Shift

Housing, Shift

31

Штифт

Штифт

32

Болт

Болт

19-1

990C0-00750-13P

Prop 13p Df70/8

Prop 13p Df70/8

19-2

990C0-00750-15P

Prop 15p Df70/8

Prop 15p Df70/8

19-3

990C0-00750-17P

Prop 17p Df70/8

Prop 17p Df70/8

19-5

990C0-00750-11P

Prop 11p Df70/8

Prop 11p Df70/8
